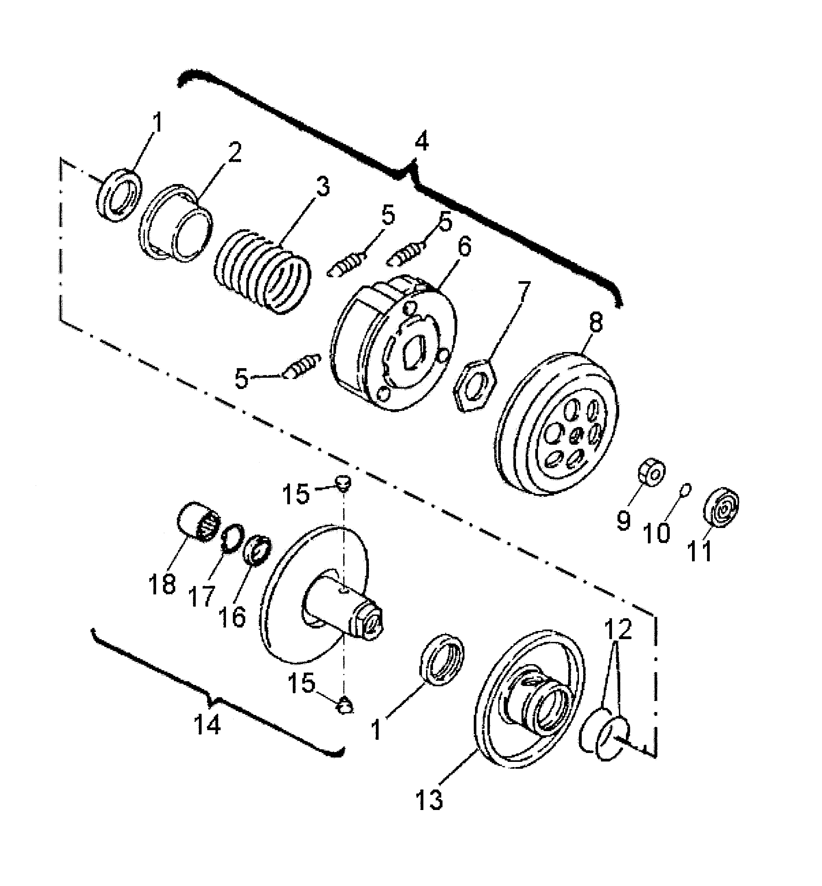

DRIVE - PULLEY - SECONDARY для Polaris SPORTSMAN 90 (A07FA09AB) (UTILITY RED) - 2007 года выпуска`
-
№АртикулНазвание
-
10450211 SEAL OILSEAL OIL
-
20453589 SEAL COLLARSEAL COLLAR
-
30453590 SPRING CLUTCHSPRING CLUTCH
-
40453454 SHEAVE ASSY, SECONDARY (INCLUDES 1 TO 8)SHEAVE ASSY, SECONDARY (INCLUDES 1 TO 8)
-
50453591 SPRING WEIGHT, CLUTCHSPRING WEIGHT, CLUTCH
-
60453592 CARRIER CLUTCHCARRIER CLUTCH
-
70453593 NUT CLUTCH, DRIVENUT CLUTCH, DRIVE
-
80453594 COVER CLUTCH, DRIVECOVER CLUTCH, DRIVE
-
90450224 NUT HEXNUT HEX
-
100450226 O RINGO RING
-
110450225 BEARINGBEARING
-
120453595 O'RING OILO'RING OIL
-
130453596 SHEAVE MOVEABLESHEAVE MOVEABLE
-
140453597 SHEAVE ASSY, DRIVEN (INCLUDES 15 TO 18)SHEAVE ASSY, DRIVEN (INCLUDES 15 TO 18)
-
150453598 PIN GUIDE, DRIVE CLUTCHPIN GUIDE, DRIVE CLUTCH
-
160453599 BEARING DRIVE CLUTCHBEARING DRIVE CLUTCH
-
170453600 CIRCLIPCIRCLIP
-
180453601 BEARING NEEDLEBEARING NEEDLE
