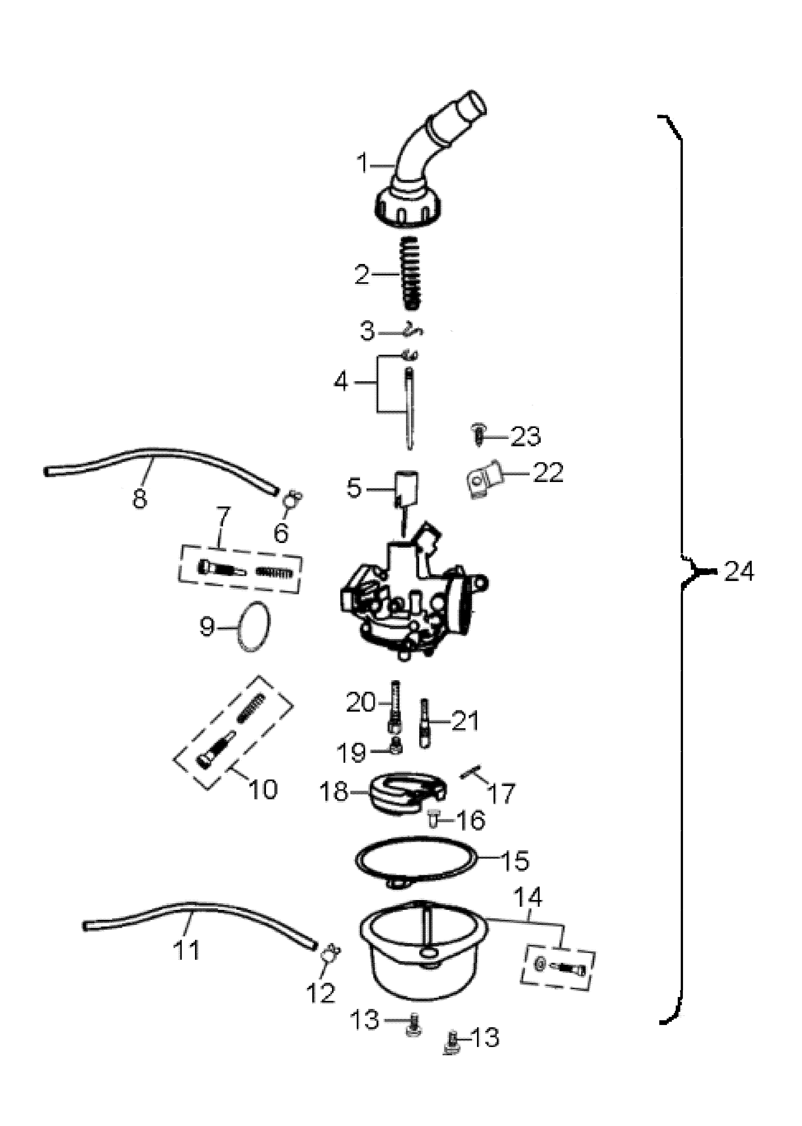

CARBURETOR для Polaris SPORTSMAN 90 (A07FA09AB) (UTILITY RED) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0453618 CAP ASSY, CARB ASSY
    CAP ASSY, CARB ASSY
  • 2
    0453619 SPRING CAP, CARB
    SPRING CAP, CARB
  • 3
    0453620 CLIP NEEDLE, CARB
    CLIP NEEDLE, CARB
  • 4
    0453621 NEEDLE JET ASSY
    NEEDLE JET ASSY
  • 5
    0453622 THROTTLE VALVE
    THROTTLE VALVE
  • 6
    0453623 CLAMP HOSE, CARB
    CLAMP HOSE, CARB
  • 7
    0453624 SCREW ASSY, CARB
    SCREW ASSY, CARB
  • 8
    0453625 HOSE CARB
    HOSE CARB
  • 9
    0453626 O'RING CARB
    O'RING CARB
  • 10
    0453627 SCREW ASSY, CARB
    SCREW ASSY, CARB
  • 11
    0453628 HOSE DRAIN, CARB
    HOSE DRAIN, CARB
  • 12
    0452814 CLIP HOSE, VACUUM
    CLIP HOSE, VACUUM
  • 13
    0453629 SCREW ASSY, CARB
    SCREW ASSY, CARB
  • 14
    0453673 BOWL FLOAT
    BOWL FLOAT
  • 15
    0453630 SEAL BOWL, CARB
    SEAL BOWL, CARB
  • 16
    0453631 VALVE FLOAT, CARB
    VALVE FLOAT, CARB
  • 17
    0453632 PIN FLOAT, CARB
    PIN FLOAT, CARB
  • 18
    0453633 FLOAT CARB, OUTLAW
    FLOAT CARB, OUTLAW
  • 19
    0453634 JET MAIN
    JET MAIN
  • 20
    0453635 VALVE NEEDLE, CARB
    VALVE NEEDLE, CARB
  • 21
    0453636 JET PILOT, CARB
    JET PILOT, CARB
  • 22
    0453638 CLIP SUPPORT, CARB
    CLIP SUPPORT, CARB
  • 23
    0452541 SCREW ASSY.
    SCREW ASSY.
  • 24
    0453637 CARB ASSY (INCLUDES ALL)
    CARB ASSY (INCLUDES ALL)
