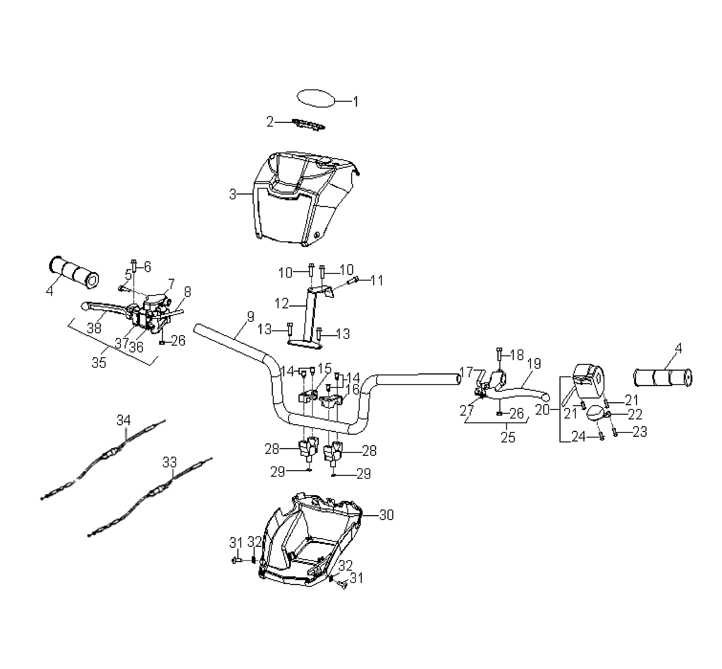

HANDLEBAR для Polaris SPORTSMAN 90 (A07FA09AB) (UTILITY RED) - 2007 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7171920 DECAL SPEEDO, SPORTSMAN 90
    DECAL SPEEDO, SPORTSMAN 90
  • 2
    0451707 BEZEL, SPEEDOMETER
    BEZEL, SPEEDOMETER
  • 3
    0453734-293 POD UPPER, SPORTSMAN, RED
    POD UPPER, SPORTSMAN, RED
  • 3
    0453734-400 POD UPPER, SPORTSMAN, CAMO GREEN
    POD UPPER, SPORTSMAN, CAMO GREEN
  • 4
    0453370 GRIP HANDLEBAR, PHOENIX(NBR)
    GRIP HANDLEBAR, PHOENIX(NBR)
  • 5
    0451788 BOLT PHILLIPS, 5MM
    BOLT PHILLIPS, 5MM
  • 6
    0450806 BOLT BRAKE LVR, RIGHT HAND
    BOLT BRAKE LVR, RIGHT HAND
  • 7
    0453721 LEVER TROTTLE, RIGHT HAND
    LEVER TROTTLE, RIGHT HAND
  • 8
    0453736 WIRE SWITCH, BRAKE
    WIRE SWITCH, BRAKE
  • 9
    0453722-067 HANDLEBAR, BLACK
    HANDLEBAR, BLACK
  • 10
    0452421 SCREW
    SCREW
  • 11
    0450614 BOLT
    BOLT
  • 12
    0453735 BRKT MOUND, POD, BLACK
    BRKT MOUND, POD, BLACK
  • 13
    0450040 SCREW TAPPING
    SCREW TAPPING
  • 14
    0450148 BOLT SOCKET, HEX
    BOLT SOCKET, HEX
  • 15
    0450461 CLAMP, RIGHT HAND, TOP
    CLAMP, RIGHT HAND, TOP
  • 16
    0450460 CLAMP, LEFT HAND, TOP
    CLAMP, LEFT HAND, TOP
  • 17
    0453815 SENSOR BRAKE
    SENSOR BRAKE
  • 18
    0450807 BOLT BRAKE LVR, LEFT HAND
    BOLT BRAKE LVR, LEFT HAND
  • 19
    0450693 LEVER, BRAKE, LEFT HAND
    LEVER, BRAKE, LEFT HAND
  • 20
    0453816 SWITCH ASSY (LEFT) (INCL. 21-24)
    SWITCH ASSY (LEFT) (INCL. 21-24)
  • 21
    0451148 BOLT
    BOLT
  • 22
    0453566 CHOKE, MANUAL ASSY
    CHOKE, MANUAL ASSY
  • 23
    0453708 BOLT
    BOLT
  • 24
    0451149 BOLT
    BOLT
  • 25
    0454043 ASSY LEVER, BRAKE, LEFT HAND (INCL. 17-19,26,27)
    ASSY LEVER, BRAKE, LEFT HAND (INCL. 17-19,26,27)
  • 26
    0450808 NUT LOCK
    NUT LOCK
  • 27
    0454042 LOCK-BRAKE, PARK
    LOCK-BRAKE, PARK
  • 28
    0450459 CLAMP SADDLE, HANDLE BAR
    CLAMP SADDLE, HANDLE BAR
  • 29
    0450276 NUT LOCK
    NUT LOCK
  • 30
    0453347-070 POD LOWER, BLACK
    POD LOWER, BLACK
  • 31
    0450514 SCREW TAPPING
    SCREW TAPPING
  • 32
    0450752 U NUT
    U NUT
  • 33
    0453499 CABLE CHOKE
    CABLE CHOKE
  • 34
    0453500 CABLE THROTTLE
    CABLE THROTTLE
  • 35
    0453740 LEVER ASSY, LEFT HAND (INCL. 5-8,26,36-38)
    LEVER ASSY, LEFT HAND (INCL. 5-8,26,36-38)
  • 36
    0452202 ARM THROTTLE
    ARM THROTTLE
  • 37
    0450994 BRACKET BRAKE CABLE
    BRACKET BRAKE CABLE
  • 38
    0450694 LEVER, BRAKE, RIGHT HAND
    LEVER, BRAKE, RIGHT HAND
