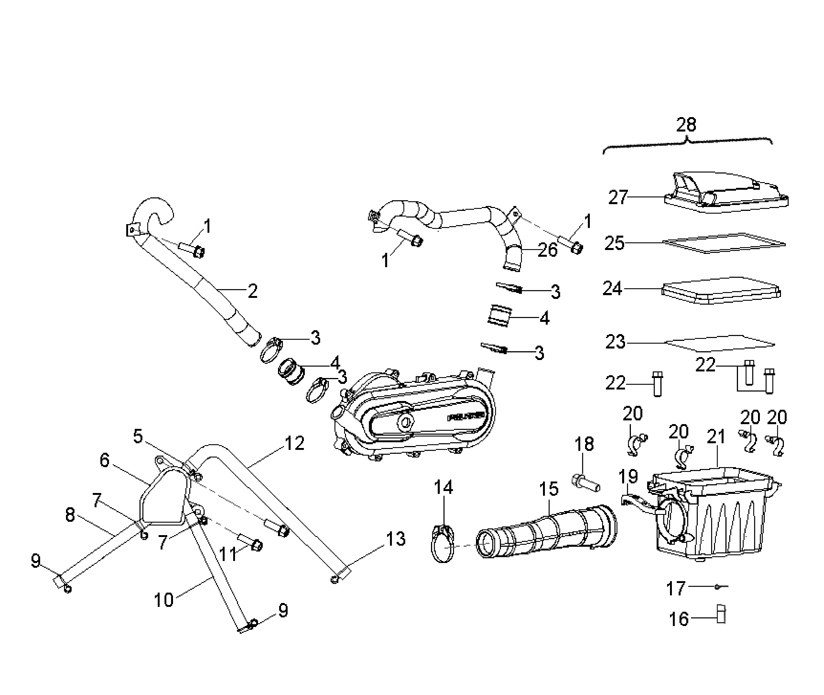

AIR BOX ASSY. для Polaris SPORTSMAN 90 (A07FA09AB) (UTILITY RED) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0450824 BOLT W/WSHR, HEX
    BOLT W/WSHR, HEX
  • 2
    0453331 DUCT INLET, CLUTCH COVER
    DUCT INLET, CLUTCH COVER
  • 3
    0453655 CLAMP
    CLAMP
  • 4
    0453656 BOOT DUCT
    BOOT DUCT
  • 5
    0453187 CLIP RETAINING
    CLIP RETAINING
  • 6
    0453184 SEPARATOR OIL
    SEPARATOR OIL
  • 7
    0450865 FUEL LINE/CLIP ASSY
    FUEL LINE/CLIP ASSY
  • 8
    0453674 TUBE OIL
    TUBE OIL
  • 9
    0453516 CLIP OIL SEPARATOR
    CLIP OIL SEPARATOR
  • 10
    0453724 TUBE OIL
    TUBE OIL
  • 11
    0450899 BOLT HEX
    BOLT HEX
  • 12
    0453657 TUBE BREATHER, VENTILATED
    TUBE BREATHER, VENTILATED
  • 13
    0452795 CLIP
    CLIP
  • 14
    0453658 CLAMP
    CLAMP
  • 15
    0453659 BOOT AIR CLEANER
    BOOT AIR CLEANER
  • 16
    0453725 HOSE DRAIN
    HOSE DRAIN
  • 17
    0453661 CLIP
    CLIP
  • 18
    0453518 BOLT
    BOLT
  • 19
    0453666 BRKT MOUNT, AIR BOX
    BRKT MOUNT, AIR BOX
  • 20
    0453660 CLIP AIRBOX, OUTLAW
    CLIP AIRBOX, OUTLAW
  • 21
    0453662 BOX AIR CLEANER
    BOX AIR CLEANER
  • 22
    0450340 BOLT HEX
    BOLT HEX
  • 23
    0453663 HOLDER AIR FILTER
    HOLDER AIR FILTER
  • 24
    0453664 FILTER AIR BOX, OUTLAW
    FILTER AIR BOX, OUTLAW
  • 25
    0453484 GASKET COVER, AIRBOX
    GASKET COVER, AIRBOX
  • 26
    0453332 DUCT OUTLET, CLUTCH COVER
    DUCT OUTLET, CLUTCH COVER
  • 27
    0453665 COVER AIR BOX
    COVER AIR BOX
  • 28
    0453739 AIR BOX ASSY.
    AIR BOX ASSY.
