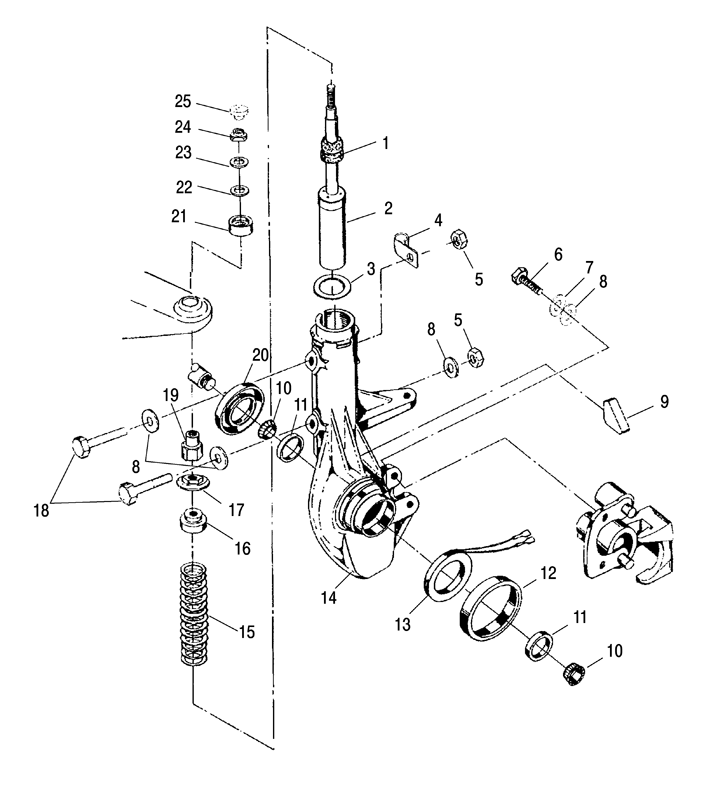

SUSPENSION - FRONT STRUT для Polaris SCRAMBLER 500 4X4 (A07BG50AFA) (SILVER) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    5412665 BUMPER MCU, 17.8MM ID
    BUMPER MCU, 17.8MM ID
  • 2
    7041762 STRUT FRONT, 18X30MM, 184.7MM LT
    STRUT FRONT, 18X30MM, 184.7MM LT
  • 3
    5211115 WASHER
    WASHER
  • 4
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 5
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 6
    7512365 SCREW, CAP
    SCREW, CAP
  • 7
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 8
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 9
    5810439 RETAINER, WIRE, STRUT CAST
    RETAINER, WIRE, STRUT CAST
  • 10
    3554509 BEARING, TAPERED ROLLER
    BEARING, TAPERED ROLLER
  • 11
    3554507 BRG, TAPER, ROLL CUP
    BRG, TAPER, ROLL CUP
  • 12
    5222193 SLEEVE, STRUT HUB SEAL
    SLEEVE, STRUT HUB SEAL
  • 13
    2410133 HUB/COIL KIT
    HUB/COIL KIT
  • 14
    1822821 HUBSTRUT ASSY (LEFT) (INCLUDES 9, 12-14)
    HUBSTRUT ASSY (LEFT) (INCLUDES 9, 12-14)
  • 14
    1822822 HUBSTRUT ASSY (RIGHT) (INCLUDES 9, 12-14)
    HUBSTRUT ASSY (RIGHT) (INCLUDES 9, 12-14)
  • 15
    7041603-293 SPRING COMP, 75 100#/IN, INDYRED
    SPRING COMP, 75 100#/IN, INDYRED
  • 16
    5243364 RETAINER SPRING
    RETAINER SPRING
  • 17
    5432871 PIVOT, BALL, BOTTO
    PIVOT, BALL, BOTTO
  • 18
    7515339 BOLT
    BOLT
  • 19
    5132062 SPACER 1/2 20
    SPACER 1/2 20
  • 20
    3610028 SEAL, HUB STRUT
    SEAL, HUB STRUT
  • 21
    5432872 PIVOT, BALL, TOP
    PIVOT, BALL, TOP
  • 22
    5810291 SPACER, RUBBER
    SPACER, RUBBER
  • 23
    7555749 WASHER
    WASHER
  • 24
    7547104 NUT
    NUT
  • 25
    7052028 GROMMET
    GROMMET
