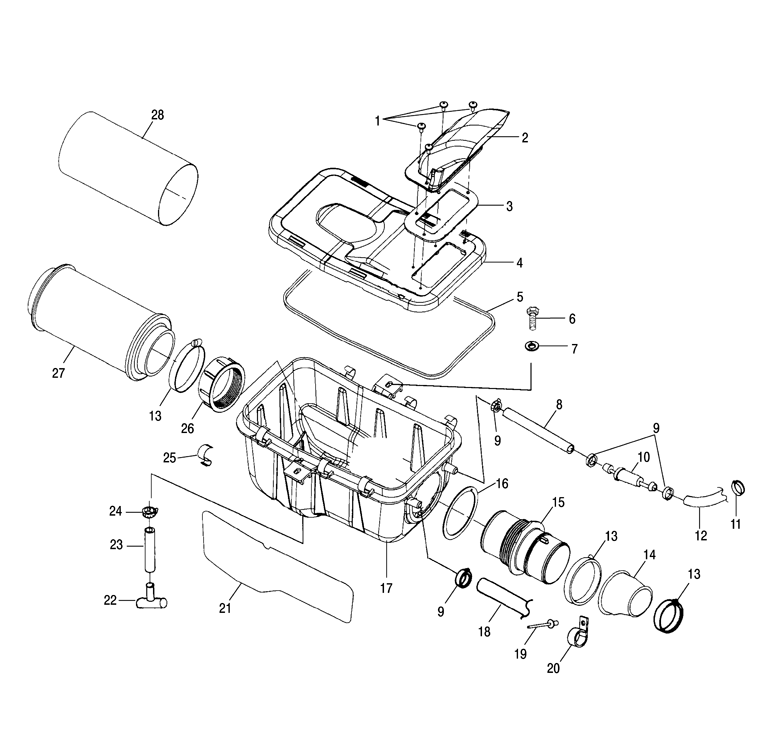

AIR BOX ASSY. для Polaris SCRAMBLER 500 4X4 (A07BG50AFA) (SILVER) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7517317 SCREW
    SCREW
  • 2
    5432859 DUCT INLET, AIRBOX COVER
    DUCT INLET, AIRBOX COVER
  • 3
    5411422 GASKET, INTAKE
    GASKET, INTAKE
  • 4
    5432868 COVER, AIRBOX
    COVER, AIRBOX
  • 5
    5811482 SEAL, AIRBOX COVER [IF BUILT BEFORE 4/02/07]
    SEAL, AIRBOX COVER [IF BUILT BEFORE 4/02/07]
  • 5
    5812829 SEAL AIRBOX COVER [IF BUILT AFTER 4/02/07]
    SEAL AIRBOX COVER [IF BUILT AFTER 4/02/07]
  • 6
    7515180 SCREW
    SCREW
  • 7
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 8
    8450073-600 LINE, BREATHER, 3/8 ID.
    LINE, BREATHER, 3/8 ID.
  • 9
    7080699 CLAMP, HOSE
    CLAMP, HOSE
  • 10
    2530029 FILTER, BREATHER, IN LINE
    FILTER, BREATHER, IN LINE
  • 11
    7080694 CLAMP, HOSE, SPRING
    CLAMP, HOSE, SPRING
  • 12
    5411847 HOSE, BRTHR, FORMED, W/CHAFE
    HOSE, BRTHR, FORMED, W/CHAFE
  • 13
    7080413 CLAMP, BAND, NARROW
    CLAMP, BAND, NARROW
  • 14
    5411414 BOOT, CARB, HYBRID
    BOOT, CARB, HYBRID
  • 15
    5432473 DUCT, CARBURETOR, INLET
    DUCT, CARBURETOR, INLET
  • 16
    5830128 GASKET, CARBURETOR INLET DUCT
    GASKET, CARBURETOR INLET DUCT
  • 17
    5432774 BOX, AIR **
    BOX, AIR **
  • 18
    5411873 HOSE, BRTHR, SLIT, 63CM, 3/8I.D
    HOSE, BRTHR, SLIT, 63CM, 3/8I.D
  • 19
    7621432 RIVET, 3/16X.402
    RIVET, 3/16X.402
  • 20
    7080880 CLAMP HOSE, .625 DIA VNL COATED
    CLAMP HOSE, .625 DIA VNL COATED
  • 21
    5811650 FOIL
    FOIL
  • 22
    5432377 PLUG, TRAP (IF BUILT BEFORE 9/04/06)
    PLUG, TRAP (IF BUILT BEFORE 9/04/06)
  • 22
    5435299 PLUG, TRAP (IF BUILT AFTER 9/04/06)
    PLUG, TRAP (IF BUILT AFTER 9/04/06)
  • 23
    8450059-150 FUEL LINE
    FUEL LINE
  • 24
    7080650 CLAMP, HOSE
    CLAMP, HOSE
  • 25
    5242044 CLIP
    CLIP
  • 26
    5432601 COLLAR, CARBURETOR, INLET
    COLLAR, CARBURETOR, INLET
  • 27
    7080595 FILTER, AIR
    FILTER, AIR
  • 28
    5811633 FILTER, PRECLEAN, SLEEVE
    FILTER, PRECLEAN, SLEEVE
