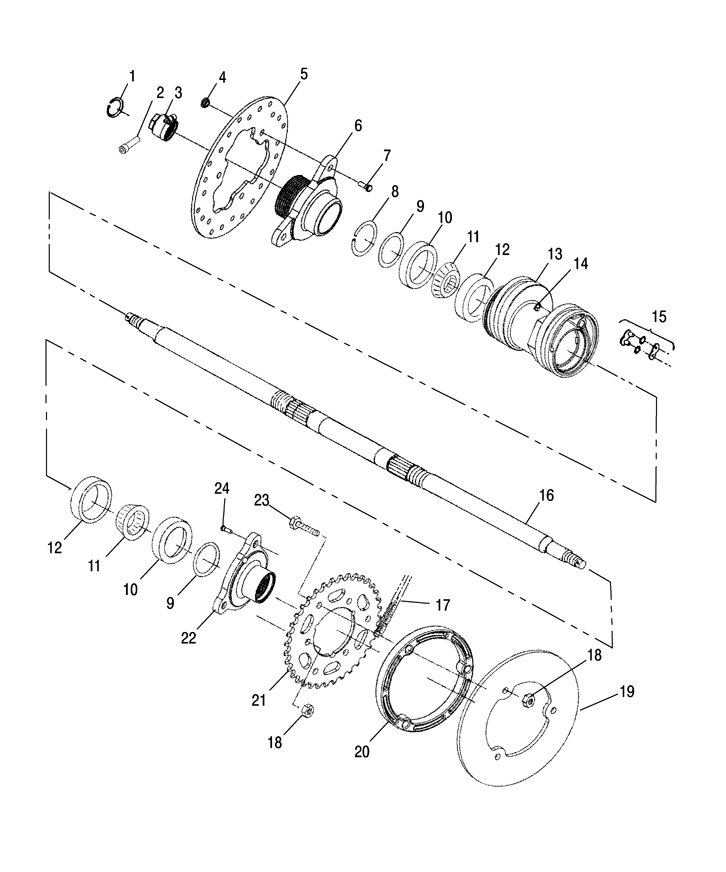

AXLE - REAR для Polaris SCRAMBLER 500 4X4 (A07BG50AFA) (SILVER) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7670160 RING RETAINING, 1.19IDX.172
    RING RETAINING, 1.19IDX.172
  • 2
    7515102 SCREW
    SCREW
  • 3
    5133428 NUT AXLE
    NUT AXLE
  • 4
    7547217 NUT 5/16 24, NYLOK, GR8, Y
    NUT 5/16 24, NYLOK, GR8, Y
  • 5
    5245716 DISC BRAKE
    DISC BRAKE
  • 6
    5631457 HUB BRAKE DISC
    HUB BRAKE DISC
  • 7
    7512365 SCREW, CAP
    SCREW, CAP
  • 8
    7670161 RING RETAINING, 1.34IDX.130
    RING RETAINING, 1.34IDX.130
  • 9
    5410889 O RING
    O RING
  • 10
    3610070 SEAL, LIP
    SEAL, LIP
  • 11
    3554518 BEARING, CONE, TAPERED
    BEARING, CONE, TAPERED
  • 12
    3554517 BEARING, CUP, TAPERED
    BEARING, CUP, TAPERED
  • 13
    5134460 HOUSING AXLE, REAR (MACH)
    HOUSING AXLE, REAR (MACH)
  • 14
    7080306 FITTING, LUBE.W/BALL CHECK
    FITTING, LUBE.W/BALL CHECK
  • 15
    3221192 LINK CONNECTOR, PRESS, 520, ORD4
    LINK CONNECTOR, PRESS, 520, ORD4
  • 16
    5133967 AXLE REAR, CDS
    AXLE REAR, CDS
  • 17
    3221193-076 CHAIN 520 ORD4, O RING, 76 PITCH
    CHAIN 520 ORD4, O RING, 76 PITCH
  • 18
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 19
    5211585-067 GUARD, 38T SPKT (BLACK).ALUM.
    GUARD, 38T SPKT (BLACK).ALUM.
  • 20
    5630586 SPACER SPROCKET GUARD
    SPACER SPROCKET GUARD
  • 21
    3222109 SPROCKET, 36T, R.AXLE
    SPROCKET, 36T, R.AXLE
  • 22
    1520795 HUB SPROCKET ASSY (INCLUDES 24)
    HUB SPROCKET ASSY (INCLUDES 24)
  • 23
    7515528 BOLT
    BOLT
  • 24
    7518378 STUD 3/8 24X1.38, PRESS FIT Z
    STUD 3/8 24X1.38, PRESS FIT Z
