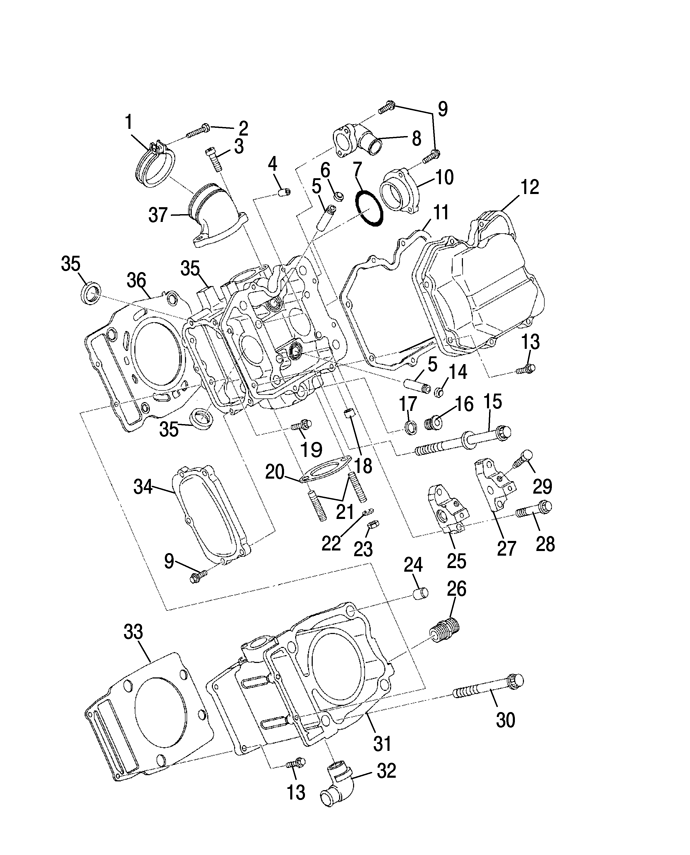

CYLINDER для Polaris SCRAMBLER 500 4X4 (A07BG50AFA) (SILVER) - 2007 года выпуска
-
№АртикулНазвание
-
13084045 BAND ASSY (INCLUDES 2)BAND ASSY (INCLUDES 2)
-
23081497 SCREW, PAN HEADSCREW, PAN HEAD
-
33081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
43084857 KNOCK, PIPEKNOCK, PIPE
-
53084994 GUIDE, VALVEGUIDE, VALVE
-
63084858 SEAL, INTAKE VALVESEAL, INTAKE VALVE
-
73084867 O RINGO RING
-
83084870 ADAPTER WATER OUTADAPTER WATER OUT
-
93084877 BOLT, FLANGEBOLT, FLANGE
-
103084866 ADAPTER, CAMSHAFTADAPTER, CAMSHAFT
-
113085074 GASKET (ROCKER COVER)GASKET (ROCKER COVER)
-
123085073 COVER, ROCKERCOVER, ROCKER
-
133084874 BOLT, FLANGEBOLT, FLANGE
-
143084859 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
153084875 BOLTBOLT
-
163084860 PLUGPLUG
-
173084861 GASKETGASKET
-
183084862 PLUG, BLINDPLUG, BLIND
-
193086781 BOLT, FLANGEBOLT, FLANGE
-
203085075 GASKET ASSY (EXHAUST)GASKET ASSY (EXHAUST)
-
213085326 STUDSTUD
-
223080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
233087199 NUTNUT
-
243087266 KNOCK, PIPEKNOCK, PIPE
-
253084863 SUPPORT, VALVE ROCKER SHAFT (MAG)SUPPORT, VALVE ROCKER SHAFT (MAG)
-
263084849 UNION OIL FILTERUNION OIL FILTER
-
273084864 SUPPORT, VALVE ROCKER SHAFT (PTO)SUPPORT, VALVE ROCKER SHAFT (PTO)
-
283084876 BOLTBOLT
-
293085854 BOLT ROCKER SHAFTBOLT ROCKER SHAFT
-
303084873 BOLT, FLANGEBOLT, FLANGE
-
313089256 CYLINDER ASSY (INCLUDES 32)CYLINDER ASSY (INCLUDES 32)
-
323086747 PIPE 2, ELBOWPIPE 2, ELBOW
-
333085370 GASKET CYLINDERGASKET CYLINDER
-
343089242 COVER CAMSHAFTCOVER CAMSHAFT
-
353085527 HEAD, CYLINDER ASSY (INCLUDES 4 TO 6, 14, 16 TO 18, 21)HEAD, CYLINDER ASSY (INCLUDES 4 TO 6, 14, 16 TO 18, 21)
-
363085371 GASKET, HEAD ASSYGASKET, HEAD ASSY
-
373085809 ADAPTERADAPTER
