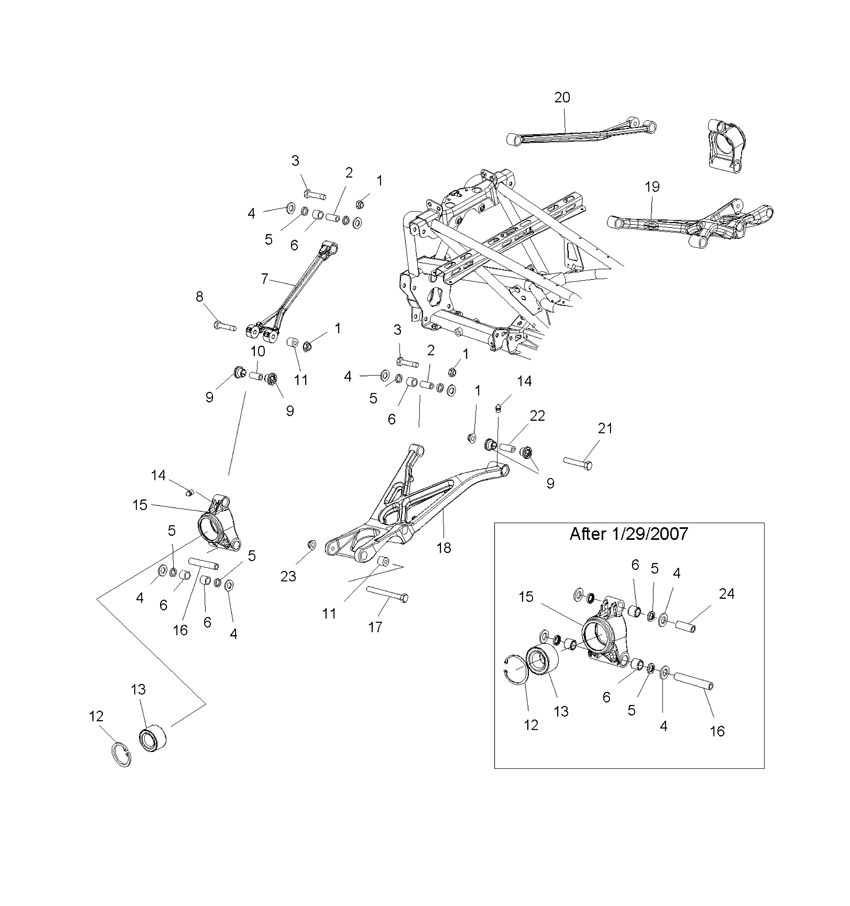

SUSPENSION - REAR для Polaris OUTLAW 525 (A07GP52AA) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7547333 NUT M10X1.25, FLG, NYLOC OLIVE D
    NUT M10X1.25, FLG, NYLOC OLIVE D
  • 2
    5334816 SHAFT CONTROL ARM, INNER, 1.38
    SHAFT CONTROL ARM, INNER, 1.38
  • 3
    7518563 BOLT M10X1.25X60, HXFLG OLIVE D
    BOLT M10X1.25X60, HXFLG OLIVE D
  • 4
    7556356 WASHER THRUST, 1.18 X.625 X.125 (QTY. 16 IF BUILT AFTER 1/29/07)
    WASHER THRUST, 1.18 X.625 X.125 (QTY. 16 IF BUILT AFTER 1/29/07)
  • 5
    3610125 SEAL (QTY. 16 IF BUILT AFTER 1/29/07)
    SEAL (QTY. 16 IF BUILT AFTER 1/29/07)
  • 6
    3514542 BEARING NEEDLE(QTY. 10 IF BUILT AFTER 1/29/07)
    BEARING NEEDLE(QTY. 10 IF BUILT AFTER 1/29/07)
  • 7
    1542190 CONTROL ARM ASSY, UPPER (RIGHT) (INCL. 2, 4, 5, 6) (IF BUILT BEFORE 1/29/07)
    CONTROL ARM ASSY, UPPER (RIGHT) (INCL. 2, 4, 5, 6) (IF BUILT BEFORE 1/29/07)
  • 7
    5136018 CONTROL ARM, UPPER (RIGHT) (MACH.) (NOTICE, NOT AN ASSY) (IF BUILT AFTER 1/29/07)
    CONTROL ARM, UPPER (RIGHT) (MACH.) (NOTICE, NOT AN ASSY) (IF BUILT AFTER 1/29/07)
  • 8
    7518560 BOLT-M10X1.25X95,HXFLG-OLIVE D
    BOLT-M10X1.25X95,HXFLG-OLIVE D
  • 9
    5436798 BUSHING CONTROL ARM (QTY. 4 IF BUILT AFTER 1/29/07)
    BUSHING CONTROL ARM (QTY. 4 IF BUILT AFTER 1/29/07)
  • 10
    5334817 SHAFT CONTROL ARM (IF BUILT BEFORE 1/29/07)
    SHAFT CONTROL ARM (IF BUILT BEFORE 1/29/07)
  • 11
    5334894 SLEEVE FLOAT (QTY. 2 IF BUILT AFTER 1/29/07)
    SLEEVE FLOAT (QTY. 2 IF BUILT AFTER 1/29/07)
  • 12
    7710507 RING, RET., 2.500 INTERNAL (QTY. 2 IF BUILT AFTER 1/29/07)
    RING, RET., 2.500 INTERNAL (QTY. 2 IF BUILT AFTER 1/29/07)
  • 13
    3514342 BEARING AXLE TUBE/HUBSTRUT
    BEARING AXLE TUBE/HUBSTRUT
  • 14
    7080433 FITTING, LUBRICATION, THREADED(10
    FITTING, LUBRICATION, THREADED(10
  • 15
    5135101 CARRIER BEARING, WHEEL, MACH (IF BUILT BEFORE 1/29/07)
    CARRIER BEARING, WHEEL, MACH (IF BUILT BEFORE 1/29/07)
  • 15
    5136016 CARRIER BEARING, WHEEL, MACH (IF BUILT AFTER 1/29/07)
    CARRIER BEARING, WHEEL, MACH (IF BUILT AFTER 1/29/07)
  • 16
    5334820 SHAFT BEARING CARRIER, WHEEL
    SHAFT BEARING CARRIER, WHEEL
  • 17
    7518562 BOLT-M10X1.25X140,HXFLG-OLV D
    BOLT-M10X1.25X140,HXFLG-OLV D
  • 18
    1542192 CONTROL ARM ASSY, LOWER (RIGHT) (INCL. 2, 4, 5, 6, 14)
    CONTROL ARM ASSY, LOWER (RIGHT) (INCL. 2, 4, 5, 6, 14)
  • 19
    1542191 CONTROL ARM ASSY, LOWER (LEFT) (INCL. 2, 4, 5, 6, 14)
    CONTROL ARM ASSY, LOWER (LEFT) (INCL. 2, 4, 5, 6, 14)
  • 20
    1542189 CONTROL ARM ASSY, UPPER (LEFT) (INCL. 2, 4, 5, 6) (IF BUILT BEFORE 1/29/07)
    CONTROL ARM ASSY, UPPER (LEFT) (INCL. 2, 4, 5, 6) (IF BUILT BEFORE 1/29/07)
  • 20
    5136017 CONTROL ARM, UPPER (LEFT) (MACH.) (NOTICE, NOT AN ASSY.) (IF BUILT AFTER 1/29/07)
    CONTROL ARM, UPPER (LEFT) (MACH.) (NOTICE, NOT AN ASSY.) (IF BUILT AFTER 1/29/07)
  • 21
    7518561 BOLT M10X1.25X70, HXFLG OLIVE D
    BOLT M10X1.25X70, HXFLG OLIVE D
  • 22
    5334896 SHAFT CONTROL ARM, INNER, FRONT
    SHAFT CONTROL ARM, INNER, FRONT
  • 23
    7547362 NUT M10X1.25, NYLOC OLIVE D
    NUT M10X1.25, NYLOC OLIVE D
  • 24
    5335307 SHAFT CONTROL ARM, OUTER, 1.680 (IF BUILT AFTER 1/29/07)
    SHAFT CONTROL ARM, OUTER, 1.680 (IF BUILT AFTER 1/29/07)
