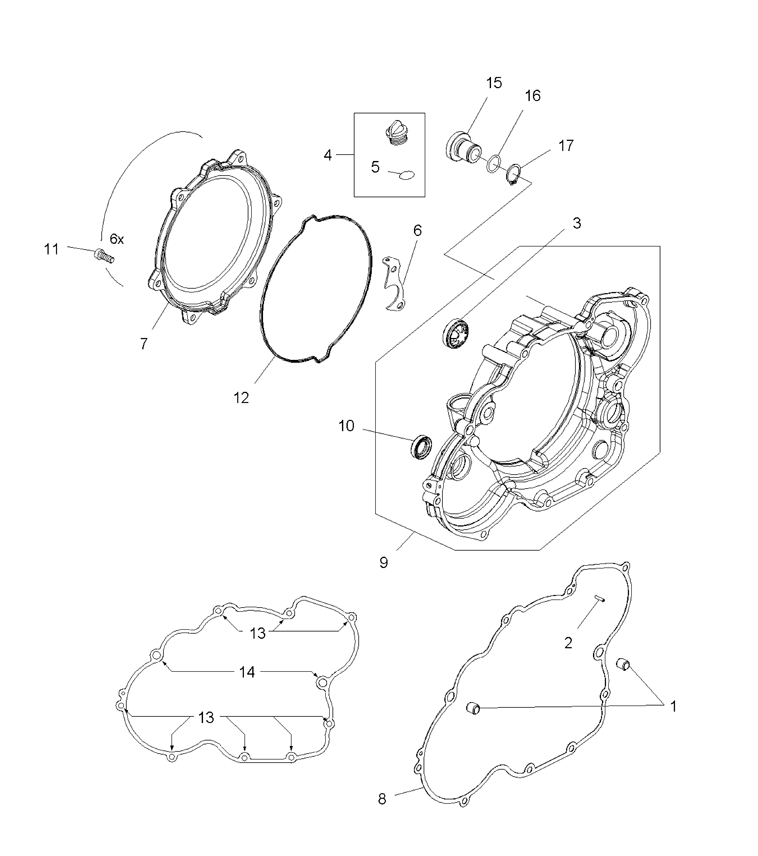

CLUTCH COVER для Polaris OUTLAW 525 (A07GP52AA) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
17661934 DOWEL LOCATING 9.8X7X10MMDOWEL LOCATING 9.8X7X10MM
-
27661936 NEEDLE ROLLER DIN5402 2.5X9.8NEEDLE ROLLER DIN5402 2.5X9.8
-
33610135 OIL CHECK SIGHT GLASS, 525ATVOIL CHECK SIGHT GLASS, 525ATV
-
45437030 PLUG OIL FILL, M24X3 W/O RINGPLUG OIL FILL, M24X3 W/O RING
-
55413311 O RING, 19.0X3.0MM NBRO RING, 19.0X3.0MM NBR
-
65250952 BRACKET FOOTBRAKE LEVEL SPRINGBRACKET FOOTBRAKE LEVEL SPRING
-
75135977 COVER CLUTCH, OUTER, 525ATVCOVER CLUTCH, OUTER, 525ATV
-
85813174 GASKET ENGINE RIGHTSIDE COVERGASKET ENGINE RIGHTSIDE COVER
-
91203523 RTSIDE CASE ASSY, CLUTCH COVERRTSIDE CASE ASSY, CLUTCH COVER
-
105413244 SEAL SHAFT, 14X24X6MMSEAL SHAFT, 14X24X6MM
-
117518795 SCREWSCREW
-
125413309 GASKET OUTER CLUTCH COVERGASKET OUTER CLUTCH COVER
-
137518791 SCREWSCREW
-
147518745 SCREWSCREW
-
157052436 PLUG KICKSTARTER BOREPLUG KICKSTARTER BORE
-
165413310 O RING, 15.0X1.8MMO RING, 15.0X1.8MM
-
177710614 RING SNAP, DIN0471 19X1.2MMRING SNAP, DIN0471 19X1.2MM
