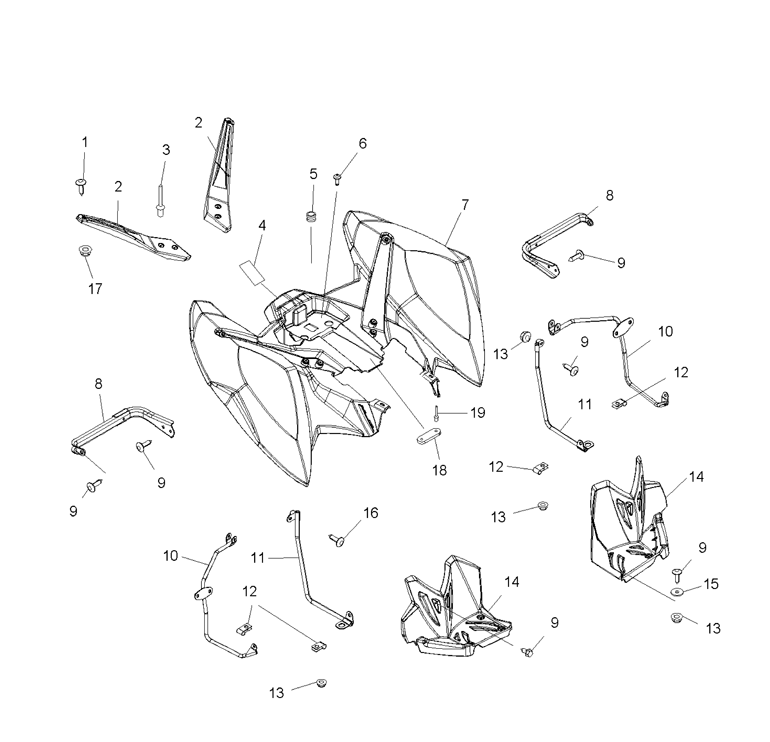

FENDER - REAR W/ SEAT для Polaris OUTLAW 525 (A07GP52AA) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7517455 SCREW
    SCREW
  • 2
    5436302-070 SUPPORT REAR CAB (LEFT) BLACK
    SUPPORT REAR CAB (LEFT) BLACK
  • 2
    5436303-070 SUPPORT REAR CAB (RIGHT) BLACK
    SUPPORT REAR CAB (RIGHT) BLACK
  • 3
    7661046 RIVET POP, 3/16(.376 .500)
    RIVET POP, 3/16(.376 .500)
  • 4
    5813065 FOIL TAPE
    FOIL TAPE
  • 5
    5412507 GROMMET
    GROMMET
  • 6
    7512084 SCREW
    SCREW
  • 7
    5436137-177 CAB REAR, BLACK MET
    CAB REAR, BLACK MET
  • 8
    1015348-067 WELD SUPPORT, REAR CAB, BLACK
    WELD SUPPORT, REAR CAB, BLACK
  • 9
    7518656 BOLT M6X1.0X15, PH/TX OLIVE D
    BOLT M6X1.0X15, PH/TX OLIVE D
  • 10
    1015346-458 WELD SUP, HEEL POCKET, OUT (LEFT) MB
    WELD SUP, HEEL POCKET, OUT (LEFT) MB
  • 10
    1015347-458 WELD SUP, HEEL POCKET, OUT (RIGHT) MB
    WELD SUP, HEEL POCKET, OUT (RIGHT) MB
  • 11
    1015079-458 WELD SUP.HEEL PCKT, IN (LEFT) M.BK
    WELD SUP.HEEL PCKT, IN (LEFT) M.BK
  • 11
    1015080-458 WELD SUP.HEEL PCKT, IN (RIGHT) M, BK
    WELD SUP.HEEL PCKT, IN (RIGHT) M, BK
  • 12
    7081355 CLAMP .375''
    CLAMP .375''
  • 13
    7547339 NUT M6X1.0, FLG NYLOC OLIVE D
    NUT M6X1.0, FLG NYLOC OLIVE D
  • 14
    5436188-070 POCKET HEEL (LEFT) BLACK
    POCKET HEEL (LEFT) BLACK
  • 14
    5436189-070 POCKET HEEL (RIGHT) BLACK
    POCKET HEEL (RIGHT) BLACK
  • 15
    7555935 WASHER
    WASHER
  • 16
    7518612 BOLT M6X1.0X35, HXFLG/SH OLV D
    BOLT M6X1.0X35, HXFLG/SH OLV D
  • 17
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 18
    5436593 STRAP
    STRAP
  • 19
    7661922 RIVET PLASTIC (.236 .394)
    RIVET PLASTIC (.236 .394)
