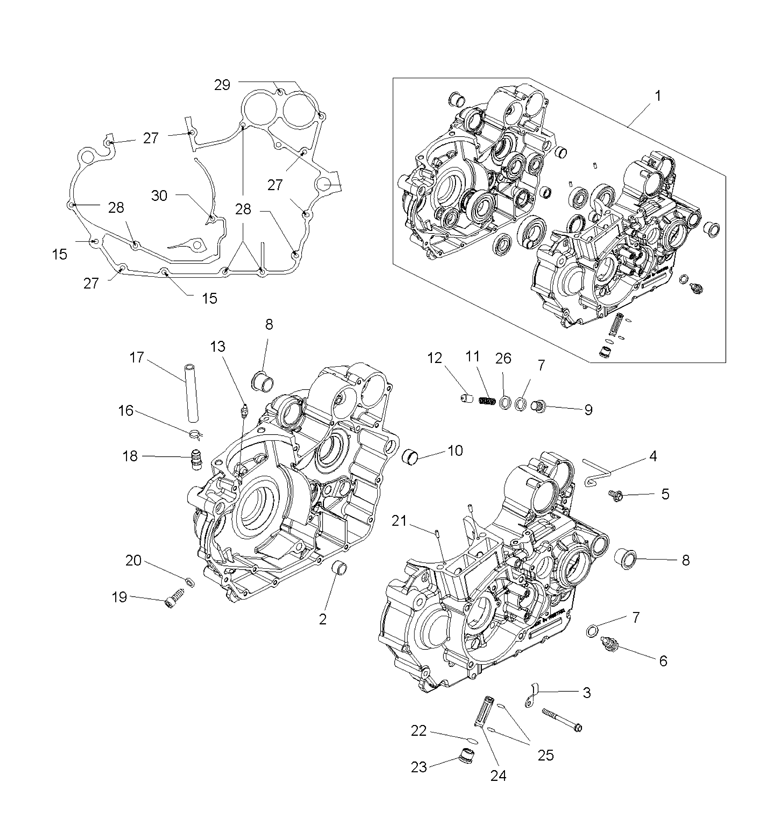

CRANKCASE для Polaris OUTLAW 525 (A07GP52AA) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
11203517 CRANKCASE, W/BEARINGS ASSYCRANKCASE, W/BEARINGS ASSY
-
27661930 DOWEL LOCATING 17X13X12MMDOWEL LOCATING 17X13X12MM
-
35250946 GUIDE CABLE, REVERSE, 525ATVGUIDE CABLE, REVERSE, 525ATV
-
47052424 GUIDE VENT HOSEGUIDE VENT HOSE
-
57518726 SCREWSCREW
-
67052421 PLUG OIL DRAIN, W/MAGNETPLUG OIL DRAIN, W/MAGNET
-
77556391 WASHER CU, DIN7603, 12X18X1.5MMWASHER CU, DIN7603, 12X18X1.5MM
-
85135975 BUSHING ENGINE MOUNT, REAR, 525BUSHING ENGINE MOUNT, REAR, 525
-
97052423 PLUG M12X1.5 DIN0908PLUG M12X1.5 DIN0908
-
107661940 DOWEL LOCATING 17X19X12MMDOWEL LOCATING 17X19X12MM
-
117043294 SPRING PRESSREG 25X1MMSPRING PRESSREG 25X1MM
-
127052422 VALVE PRESSURE REGULATORVALVE PRESSURE REGULATOR
-
132520748 NOZZLE OIL 70 M6X0.75 SW8 03NOZZLE OIL 70 M6X0.75 SW8 03
-
157518729 SCREWSCREW
-
167081436 CLAMP HOSE, 16MM, YDNAC, 101073CLAMP HOSE, 16MM, YDNAC, 101073
-
175413154 HOSE BREATHER, VENT, 525 ATVHOSE BREATHER, VENT, 525 ATV
-
187052426 FITTING BREATHER HOSE M12X1.5FITTING BREATHER HOSE M12X1.5
-
197518790 SCREW, CRANKSHAFT FIXING, M8X23SCREW, CRANKSHAFT FIXING, M8X23
-
207556417 WASHER COPPER 8X14X3MMWASHER COPPER 8X14X3MM
-
213514575 NEEDLE ROLLER DIN5402 4X9.8MMNEEDLE ROLLER DIN5402 4X9.8MM
-
225413305 O RING, 12.0X2.0MM NBR 70O RING, 12.0X2.0MM NBR 70
-
237052435 PLUG OIL SCREEN, M16X1.5MMPLUG OIL SCREEN, M16X1.5MM
-
242520747 SCREEN OIL, 11.8X44.5MMSCREEN OIL, 11.8X44.5MM
-
255413304 O RING, 9.0X1.5MM NBRO RING, 9.0X1.5MM NBR
-
267556395 WASHER CU DIN7603 12X18X3MMWASHER CU DIN7603 12X18X3MM
-
277518728 SCREWSCREW
-
287518727 SCREWSCREW
-
297518730 SCREWSCREW
-
307518731 SCREWSCREW
