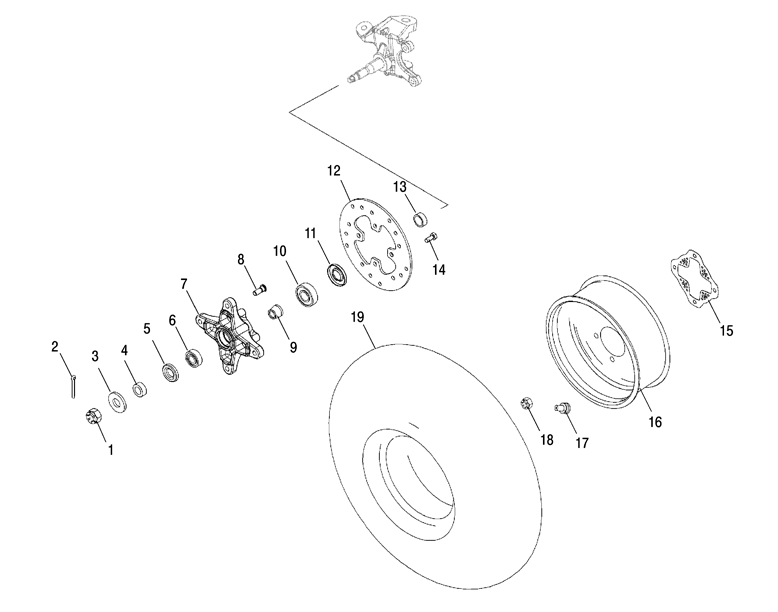

WHEEL - FRONT W/ HUB для Polaris OUTLAW 500 (A07GP50AB) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7547336 NUT-M12X1.5,CASTLE-OLIVE D
    NUT-M12X1.5,CASTLE-OLIVE D
  • 2
    7661401 PIN,COTTER
    PIN,COTTER
  • 3
    7556333 WASHER-FLAT
    WASHER-FLAT
  • 4
    5133342 SPACER-SPINDLE,OUTER
    SPACER-SPINDLE,OUTER
  • 5
    3610090 SEAL-LIP
    SEAL-LIP
  • 6
    3514528 BEARING-BALL,SEALED,6202,15X35
    BEARING-BALL,SEALED,6202,15X35
  • 7
    5135268 HUB-WHEEL,FRONT(MACH)
    HUB-WHEEL,FRONT(MACH)
  • 8
    7515513 STUD
    STUD
  • 9
    5335231 SPACER-TAPERED,1.100 OD
    SPACER-TAPERED,1.100 OD
  • 10
    3514527 BEARING-BALL,SEALED,6204,20X47
    BEARING-BALL,SEALED,6204,20X47
  • 11
    3610093 SEAL-LIP,1.00X1.88X.25
    SEAL-LIP,1.00X1.88X.25
  • 12
    5247752 BRAKE-DISC,7.0 OD
    BRAKE-DISC,7.0 OD
  • 13
    5133341 SPACER-SPINDLE,INNER
    SPACER-SPINDLE,INNER
  • 14
    7518643 BOLT
    BOLT
  • 15
    5248379 GUARD-DISC,OUTER
    GUARD-DISC,OUTER
  • 16
    1521020 WELD-RIM,10X5,FRONT,AL,VISION
    WELD-RIM,10X5,FRONT,AL,VISION
  • 17
    1525017 VALVE, RIM
    VALVE, RIM
  • 18
    7542459 NUT, FLANGED
    NUT, FLANGED
  • 19
    5412976 TIRE-FRONT,21X7X10,RAD.,DUNLOP
    TIRE-FRONT,21X7X10,RAD.,DUNLOP
