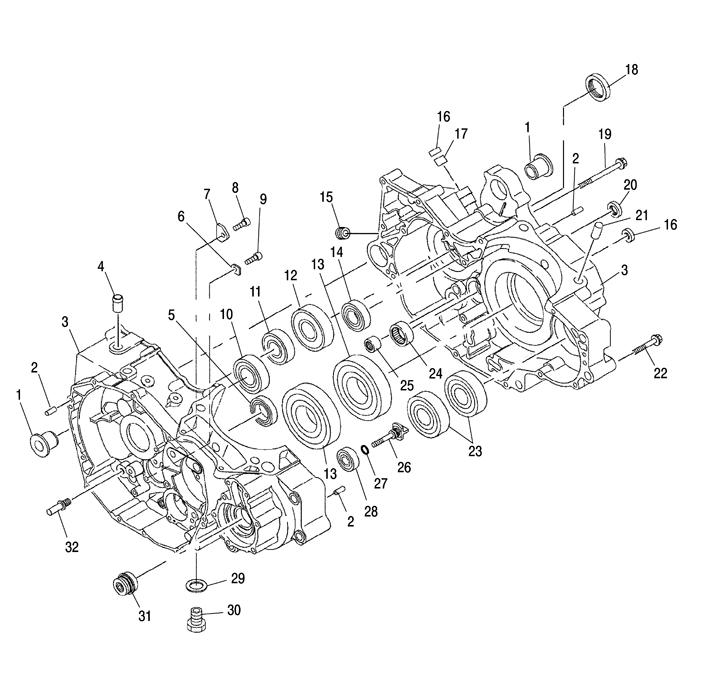

CRANKCASE для Polaris OUTLAW 500 (A07GP50AB) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3087930 COLLAR
    COLLAR
  • 2
    3086838 PIN,DOWEL
    PIN,DOWEL
  • 3
    3089679 CRANKCASE ASSY (INCLUDES ALL LESS 6 TO 9, 23)
    CRANKCASE ASSY (INCLUDES ALL LESS 6 TO 9, 23)
  • 4
    3085525 PIPE,AIR BREATHER
    PIPE,AIR BREATHER
  • 5
    3087934 BEARING,BALL
    BEARING,BALL
  • 6
    3089585 PLATE,STOPPER,B
    PLATE,STOPPER,B
  • 7
    3088138 PLATE,STOPPER
    PLATE,STOPPER
  • 8
    3089439 BOLT,SOCKET HEAD
    BOLT,SOCKET HEAD
  • 9
    3089586 BOLT,SOCKET HEAD
    BOLT,SOCKET HEAD
  • 10
    3087935 BEARING,BALL
    BEARING,BALL
  • 11
    3084834 BEARING,BALL
    BEARING,BALL
  • 12
    3087929 BEARING,BALL
    BEARING,BALL
  • 13
    3089581 BEARING,BALL
    BEARING,BALL
  • 14
    3087928 BEARING,BALL
    BEARING,BALL
  • 15
    3084862 PLUG, BLIND
    PLUG, BLIND
  • 16
    3087926 SEAL,OIL
    SEAL,OIL
  • 17
    3087925 BEARING,RELEASE
    BEARING,RELEASE
  • 18
    3086510 SEAL,OIL,CRANKCASE
    SEAL,OIL,CRANKCASE
  • 19
    3089493 BOLT,FLANGE
    BOLT,FLANGE
  • 20
    3087927 SEAL,OIL
    SEAL,OIL
  • 21
    3087266 KNOCK,PIPE
    KNOCK,PIPE
  • 22
    3089492 BOLT,FLANGE
    BOLT,FLANGE
  • 23
    3089582 BEARING,BALL
    BEARING,BALL
  • 24
    3089584 BEARING,NEEDLE
    BEARING,NEEDLE
  • 25
    3089440 BEARING,NEEDLE
    BEARING,NEEDLE
  • 26
    3089583 ASM.,WATER PUMP SHAFT
    ASM.,WATER PUMP SHAFT
  • 27
    3087938 O-RING (INCLUDES 27, 28)
    O-RING (INCLUDES 27, 28)
  • 28
    3087937 BEARING,BALL
    BEARING,BALL
  • 29
    3082956 GASKET
    GASKET
  • 30
    3089438 PLUG
    PLUG
  • 31
    3084837 SEAL,MECHANICAL
    SEAL,MECHANICAL
  • 32
    3086195 PIN STOPPER
    PIN STOPPER
