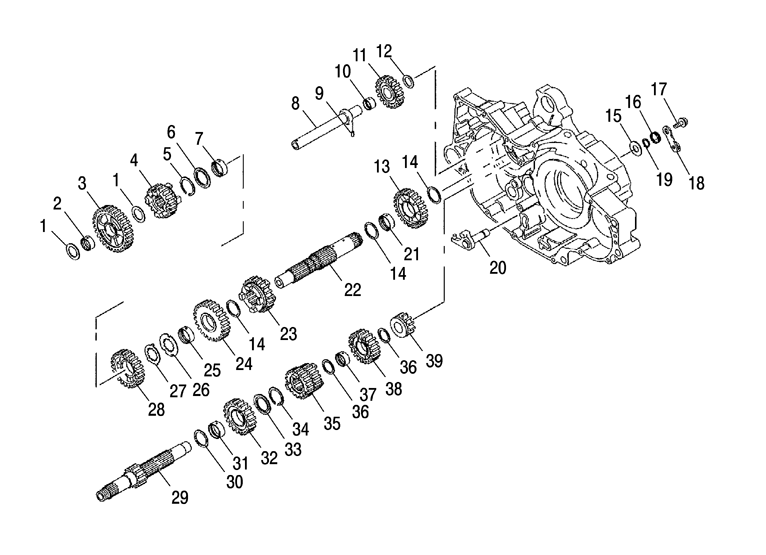

TRANSMISSION - INTERNALS для Polaris OUTLAW 500 (A07GP50AB) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3088096 WASHER
    WASHER
  • 2
    3088104 COLLAR
    COLLAR
  • 3
    3089631 GEAR,1ST DRIVEN
    GEAR,1ST DRIVEN
  • 4
    3089635 GEAR,5TH DRIVEN
    GEAR,5TH DRIVEN
  • 5
    3088093 CLIP
    CLIP
  • 6
    3088091 WASHER,SPLINE
    WASHER,SPLINE
  • 7
    3089636 COLLAR,SPLINE
    COLLAR,SPLINE
  • 8
    3089665 REVERSE SHAFT ASSY (INCLUDES 9,10,11,12)
    REVERSE SHAFT ASSY (INCLUDES 9,10,11,12)
  • 9
    3088191 PIN,DOWEL
    PIN,DOWEL
  • 10
    3089668 COLLAR
    COLLAR
  • 11
    3089667 GEAR,REVERSE IDLE
    GEAR,REVERSE IDLE
  • 12
    3089666 WASHER
    WASHER
  • 13
    3089652 GEAR,REVERSE,DRIVEN
    GEAR,REVERSE,DRIVEN
  • 14
    3089637 WASHER
    WASHER
  • 15
    3089672 WASHER
    WASHER
  • 16
    3089670 SPRING,REVERSE ARM
    SPRING,REVERSE ARM
  • 17
    3088135 BOLT,FLANGE
    BOLT,FLANGE
  • 18
    3089671 LEVER,REVERSE ARM
    LEVER,REVERSE ARM
  • 19
    3088033 RING,SNAP
    RING,SNAP
  • 20
    3089669 ASM.,REVERSE ARM
    ASM.,REVERSE ARM
  • 21
    3088106 COLLAR
    COLLAR
  • 22
    3089629 COUNTER SHAFT ASSY
    COUNTER SHAFT ASSY
  • 22
    3089630 COUNTER SHAFT ASSY (INCL. 1-7,14,23,24,28)
    COUNTER SHAFT ASSY (INCL. 1-7,14,23,24,28)
  • 23
    3089634 GEAR,4TH DRIVEN
    GEAR,4TH DRIVEN
  • 24
    3089632 GEAR,2ND DRIVEN
    GEAR,2ND DRIVEN
  • 25
    3089653 COLLAR
    COLLAR
  • 26
    3088092 WASHER
    WASHER
  • 27
    3088095 WASHER,LOCK
    WASHER,LOCK
  • 28
    3089633 GEAR,3RD DRIVEN
    GEAR,3RD DRIVEN
  • 29
    3089622 MAIN SHAFT ASSY (INCL. 14,31-38)
    MAIN SHAFT ASSY (INCL. 14,31-38)
  • 29
    3089623 MAIN SHAFT ASSY
    MAIN SHAFT ASSY
  • 30
    3088094 WASHER
    WASHER
  • 31
    3089627 COLLAR
    COLLAR
  • 32
    3089626 GEAR,5TH DRIVE
    GEAR,5TH DRIVE
  • 33
    3088091 WASHER,SPLINE
    WASHER,SPLINE
  • 34
    3088093 CLIP
    CLIP
  • 35
    3089624 GEAR,2ND,3RD DRIVE
    GEAR,2ND,3RD DRIVE
  • 36
    3089628 WASHER
    WASHER
  • 37
    3089106 COULD NOT FIND
    COULD NOT FIND
  • 38
    3089625 GEAR,4TH DRIVE
    GEAR,4TH DRIVE
  • 39
    3089651 GEAR,REVERSE,DRIVE
    GEAR,REVERSE,DRIVE
