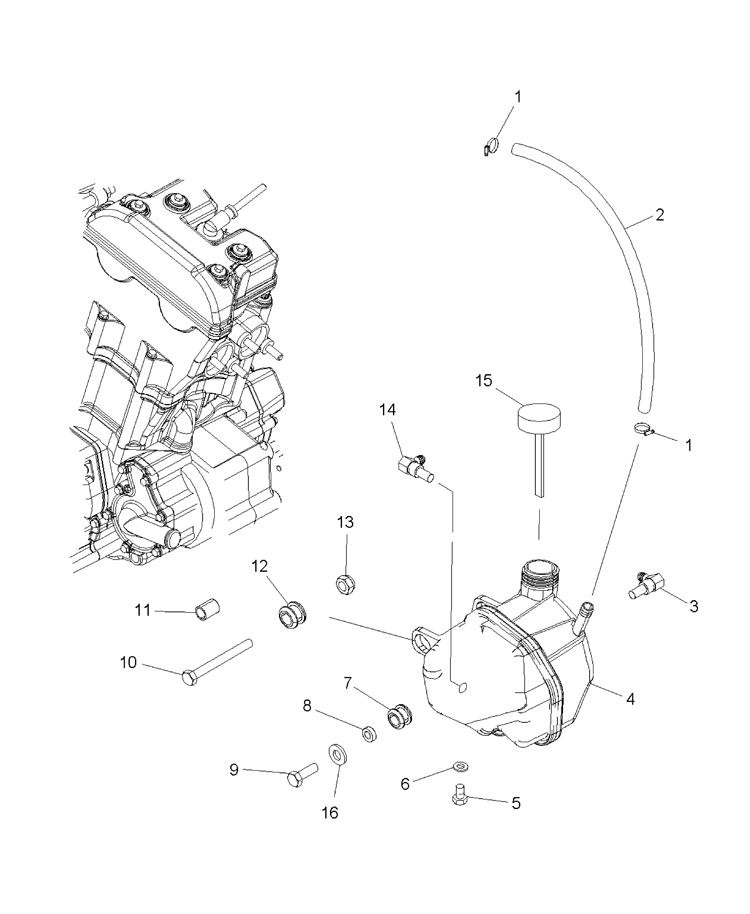

OIL TANK для Polaris OUTLAW 500 (A07GP50AB) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7080474 CLAMP, HOSE
    CLAMP, HOSE
  • 2
    8450096-100 LINE-FUEL GOODYEAR,1/2''SAE 30R7
    LINE-FUEL GOODYEAR,1/2''SAE 30R7
  • 3
    7052406 FITTING-1/2-14,NPTF,90 DEG
    FITTING-1/2-14,NPTF,90 DEG
  • 4
    5436465 TANK-OIL
    TANK-OIL
  • 5
    7051524 PLUG
    PLUG
  • 6
    5850135 WASHER
    WASHER
  • 7
    5413091 GROMMET-.438IDX.75ODX.25THK
    GROMMET-.438IDX.75ODX.25THK
  • 8
    5335025 SPACER-.272X.438X.220
    SPACER-.272X.438X.220
  • 9
    7518613 BOLT-M6X1.0X20,HXFLG,OLIVE D
    BOLT-M6X1.0X20,HXFLG,OLIVE D
  • 10
    7518665 BOLT-M10X1.25X130,HXFLG-OLIVED
    BOLT-M10X1.25X130,HXFLG-OLIVED
  • 11
    5334958 SPACER-.56X.43X.72
    SPACER-.56X.43X.72
  • 12
    5413065 GROMMET-1.0X.56X.75
    GROMMET-1.0X.56X.75
  • 13
    7547333 NUT-M10X1.25,FLG,NYLOC-OLIVE D
    NUT-M10X1.25,FLG,NYLOC-OLIVE D
  • 14
    7052326 SCREEN-OIL FILTER,90°
    SCREEN-OIL FILTER,90°
  • 15
    5434743 DIPSTICK-OIL TANK
    DIPSTICK-OIL TANK
  • 16
    7555859 WASHER, FLAT
    WASHER, FLAT
