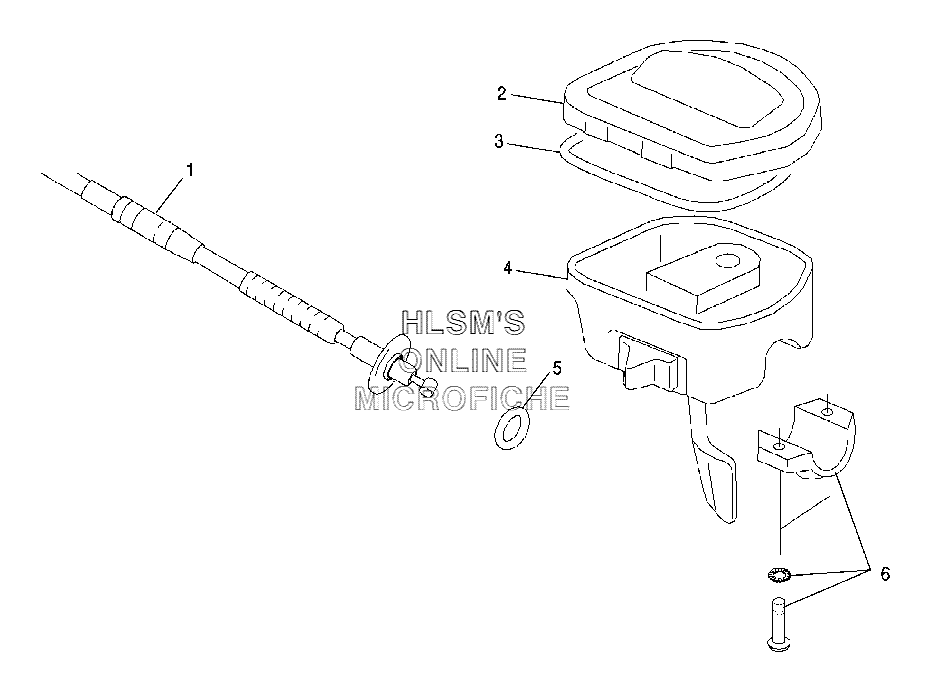

HANDLEBAR - THROTTLE ASSY. W/ CABLE для Polaris Sportsman X2 EFI (A06MN50AU) (BLACK METALLIC) - 2006 года выпуска`
-
№АртикулНазвание
-
17081306 CABLE-THROTTLE (IF BUILT BEFORE 1/16/06)CABLE-THROTTLE (IF BUILT BEFORE 1/16/06)
-
17081352 CABLE-THROTTLE (IF BUILT AFTER 1/16/06)CABLE-THROTTLE (IF BUILT AFTER 1/16/06)
-
25434113 COVER-THROTTLE CONTROLCOVER-THROTTLE CONTROL
-
35411439 O-RINGO-RING
-
42010221 THROTTLE CONTROL ASSY, DIFF (INCL. 6)THROTTLE CONTROL ASSY, DIFF (INCL. 6)
-
55410193 O-RINGO-RING
-
62010191 THROTTLE CLAMP ASSYTHROTTLE CLAMP ASSY
