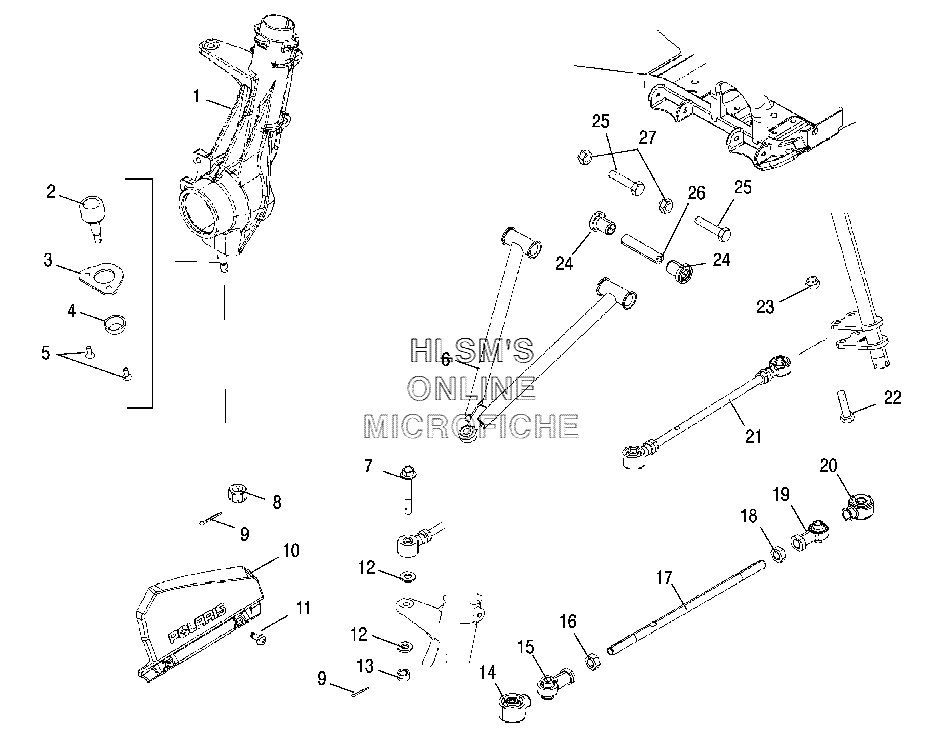

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris Sportsman X2 EFI (A06MN50AU) (BLACK METALLIC) - 2006 года выпуска

  • №
    Артикул
    Название
  • 2
    7080927 BALL-JOINT (52 DEG)
    BALL-JOINT (52 DEG)
  • 3
    5211121 BRACKET, BALL JOINT
    BRACKET, BALL JOINT
  • 4
    5410548 BOOT, RUBBER
    BOOT, RUBBER
  • 5
    7512284 BOLT, SOCKET
    BOLT, SOCKET
  • 6
    1542165-067 WELD-A-FRAME, FLARED (LEFT/BLACK)
    WELD-A-FRAME, FLARED (LEFT/BLACK)
  • 6
    1542166-067 WELD-A-FRAME, FLARED (RIGHT/BLACK)
    WELD-A-FRAME, FLARED (RIGHT/BLACK)
  • 7
    7517909 BOLT
    BOLT
  • 8
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 9
    7661203 PIN, COTTER
    PIN, COTTER
  • 10
    5436250-070 SHIELD-CV, FRONT, BASIC (LEFT/BLACK)
    SHIELD-CV, FRONT, BASIC (LEFT/BLACK)
  • 10
    5436251-070 SHIELD-CV, FRONT, BASIC (RIGHT/BLACK)
    SHIELD-CV, FRONT, BASIC (RIGHT/BLACK)
  • 11
    7512084 SCREW
    SCREW
  • 12
    7556099 WASHER
    WASHER
  • 13
    7547177 NUT
    NUT
  • 14
    5412929 BOOT-SEAL, ROD END, 10MM
    BOOT-SEAL, ROD END, 10MM
  • 15
    7061138 ROD-END, 10MM, 1/2-20 (LEFT) 42 DEG
    ROD-END, 10MM, 1/2-20 (LEFT) 42 DEG
  • 16
    7547028 NUT, JAM (LEFT)
    NUT, JAM (LEFT)
  • 17
    5134242 ROD-TIE, 1/2-20X11.45
    ROD-TIE, 1/2-20X11.45
  • 18
    7542711 NUT-JAM
    NUT-JAM
  • 19
    7061139 ROD-END, 3/8, 1/2-20 (RIGHT)
    ROD-END, 3/8, 1/2-20 (RIGHT)
  • 20
    5412928 BOOT-SEAL, ROD END, 1/2 IN
    BOOT-SEAL, ROD END, 1/2 IN
  • 21
    1822851 TIE ROD ASSY. (1/2-20X14.16) (INCL.15-20)
    TIE ROD ASSY. (1/2-20X14.16) (INCL.15-20)
  • 22
    7515415 SCREW
    SCREW
  • 23
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 24
    5436505 BUSHING-CONTROL ARM (1.285)
    BUSHING-CONTROL ARM (1.285)
  • 25
    7518523 SCREW
    SCREW
  • 26
    5134882 SHAFT-A-ARM, SHORT
    SHAFT-A-ARM, SHORT
  • 27
    7547263 NUT-3/8-24 NYLOK
    NUT-3/8-24 NYLOK
