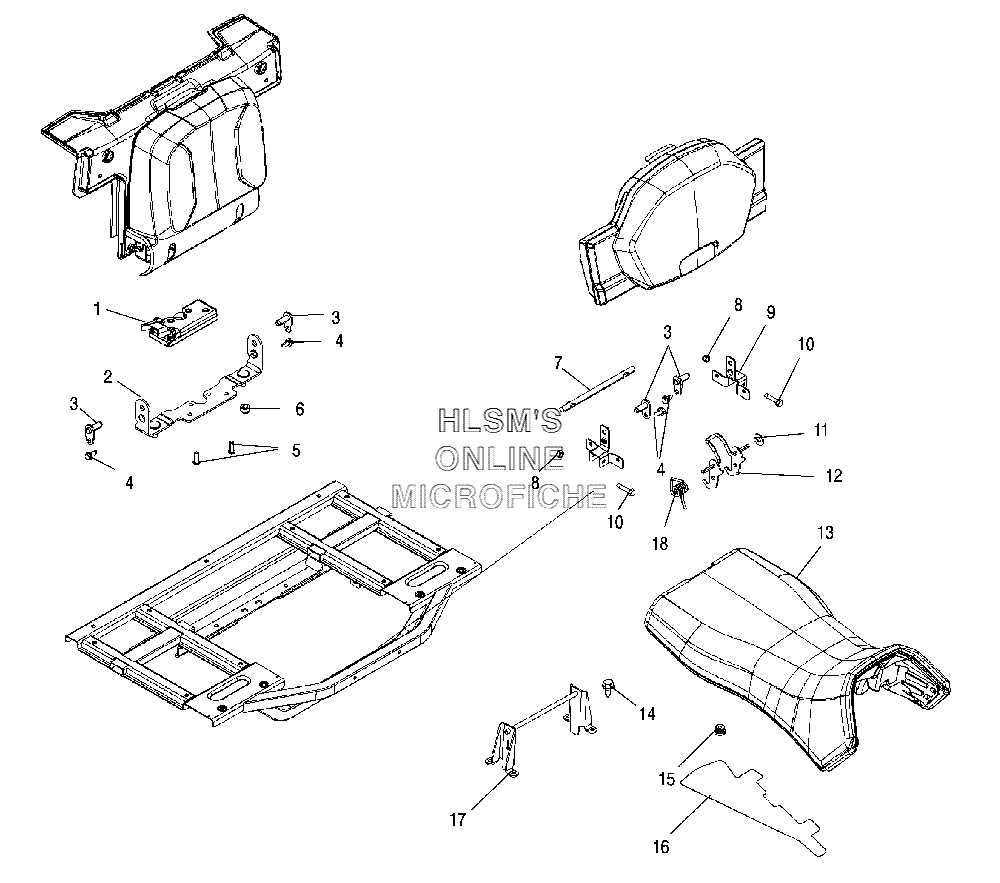

SEAT ASSY. для Polaris Sportsman X2 EFI (A06MN50AU) (BLACK METALLIC) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7081325 CLIP
    CLIP
  • 2
    1015414-067 WELD-PIVOT, PASS SEAT (BLACK)
    WELD-PIVOT, PASS SEAT (BLACK)
  • 3
    1015413 WELD-PIN, PIVOT
    WELD-PIN, PIVOT
  • 4
    7517386 SCREW
    SCREW
  • 5
    7515177 SCREW
    SCREW
  • 6
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 7
    5135213 ROD-SEAT LOCK (LOWER)
    ROD-SEAT LOCK (LOWER)
  • 8
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 9
    5249636-067 BRACKET-SEAT ROD (UPPER/BLACK)
    BRACKET-SEAT ROD (UPPER/BLACK)
  • 10
    7512130 BOLT
    BOLT
  • 11
    7556091 SPACER
    SPACER
  • 12
    1015398-067 WELD-ROD, PASS SEAT (BLACK)
    WELD-ROD, PASS SEAT (BLACK)
  • 13
    2683862-070 SEAT ASSY (BLACK)
    SEAT ASSY (BLACK)
  • 13
    2683863-070 COVERING-SEAT (BLACK)
    COVERING-SEAT (BLACK)
  • 14
    7512232 BOLT
    BOLT
  • 15
    5412994 GROMMET-SEAT LATCH
    GROMMET-SEAT LATCH
  • 16
    5813059 FOIL-SEAT BASE, OPERATOR
    FOIL-SEAT BASE, OPERATOR
  • 17
    1015355-067 WELD-LOCKOUT, PASSENGER (BLACK)
    WELD-LOCKOUT, PASSENGER (BLACK)
  • 18
    7041370 SPRING, LATCH
    SPRING, LATCH
