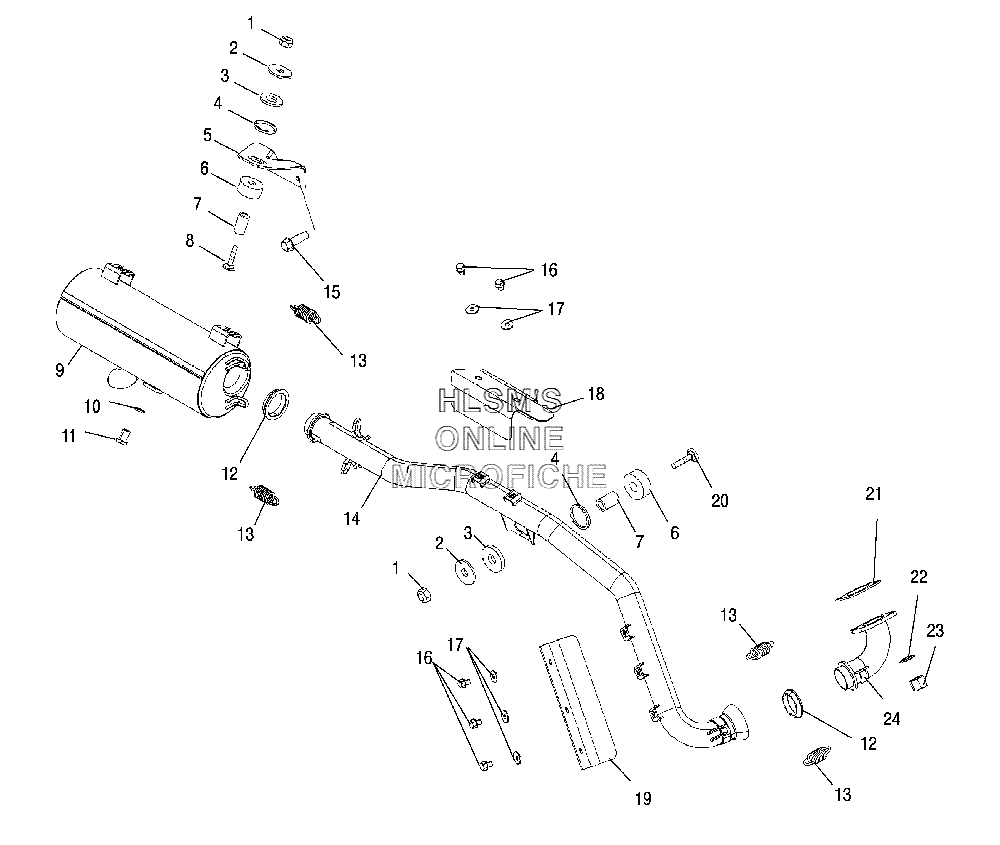

EXHAUST SYSTEM для Polaris Sportsman X2 EFI (A06MN50AU) (BLACK METALLIC) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 2
    7555716 WASHER
    WASHER
  • 3
    5410436 WASHER, RUBBER
    WASHER, RUBBER
  • 4
    7555863 WASHER
    WASHER
  • 5
    5249688 BRACKET-EXHAUST MOUNT PLATED
    BRACKET-EXHAUST MOUNT PLATED
  • 6
    5412508 DAMPENER-VIBRATION
    DAMPENER-VIBRATION
  • 7
    5010192 BUSHING
    BUSHING
  • 8
    7515316 BOLT
    BOLT
  • 9
    1261611-029 WELD-SILENCER (BLACK)
    WELD-SILENCER (BLACK)
  • 10
    7556230 WASHER-CLEAN OUT
    WASHER-CLEAN OUT
  • 11
    7512666 BOLT
    BOLT
  • 12
    5243518 SEAL, EXHAUST
    SEAL, EXHAUST
  • 13
    7041804 SPRING
    SPRING
  • 14
    1261612-029 WELD-EXHAUST PIPE (1.26 OD) (BLACK)
    WELD-EXHAUST PIPE (1.26 OD) (BLACK)
  • 15
    7512232 BOLT
    BOLT
  • 16
    7515197 SCREW
    SCREW
  • 17
    7555935 WASHER
    WASHER
  • 18
    5248727 SHIELD-HEAT, EXHAUST (IF BUILT BEFORE 1/30/06)
    SHIELD-HEAT, EXHAUST (IF BUILT BEFORE 1/30/06)
  • 18
    5250371 SHIELD-HEAT, EXHAUST (IF BUILT AFTER 1/30/06)
    SHIELD-HEAT, EXHAUST (IF BUILT AFTER 1/30/06)
  • 19
    5250184 SHIELD-HEAT, EXHAUST X2
    SHIELD-HEAT, EXHAUST X2
  • 20
    7518660 BOLT
    BOLT
  • 21
    3085075 GASKET ASSY (EXHAUST)
    GASKET ASSY (EXHAUST)
  • 22
    3080051 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 23
    3087199 NUT
    NUT
  • 24
    1261043-029 MANIFOLD (BLACK)
    MANIFOLD (BLACK)
