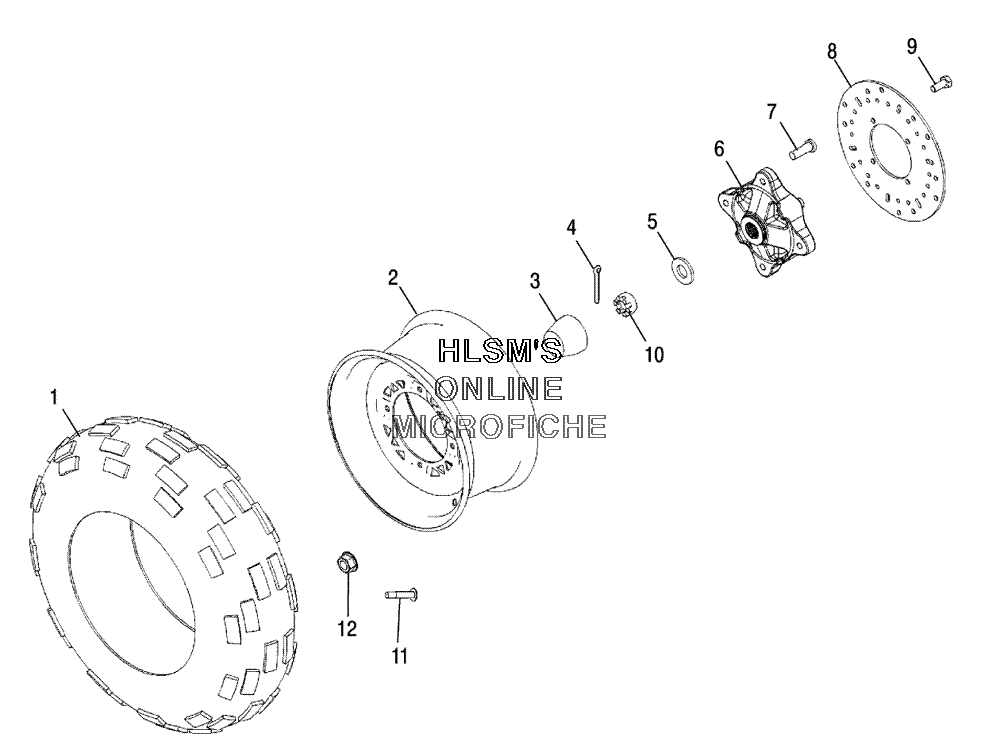

WHEEL - FRONT для Polaris SPORTSMAN 600 (A05MH59AK) (CAMO GREEN METALLIC) - 2005 года выпуска
-
№АртикулНазвание
-
15412660 TIRE (FRONT) (26X8RX12 PXT RADIAL)TIRE (FRONT) (26X8RX12 PXT RADIAL)
-
21520269-067 RIM (FRONT/BLACK)RIM (FRONT/BLACK)
-
35411164 COVER, DUST, HUBCOVER, DUST, HUB
-
47661402 PIN, COTTERPIN, COTTER
-
57556004 WASHERWASHER
-
65134310 HUB WHEEL, AWD (MACH)HUB WHEEL, AWD (MACH)
-
77515513 STUDSTUD
-
85244314 DISC, BRAKE (FRONT)DISC, BRAKE (FRONT)
-
97512325 BOLTBOLT
-
107542810 NUT, SLOTTEDNUT, SLOTTED
-
111525017 VALVE, RIMVALVE, RIM
-
127547237 NUT, FLANGE TWO PIECENUT, FLANGE TWO PIECE
