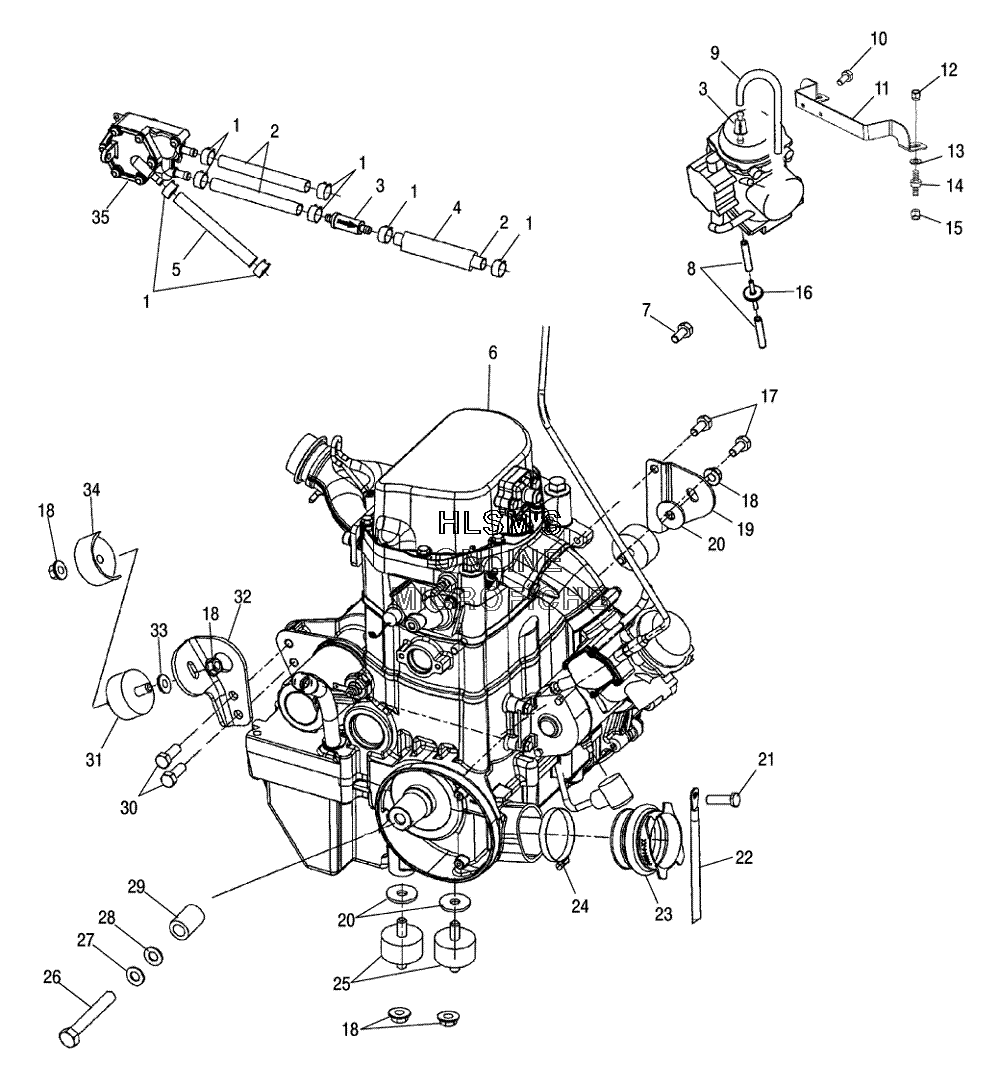

MOUNTING - ENGINE для Polaris SPORTSMAN 600 (A05MH59AK) (CAMO GREEN METALLIC) - 2005 года выпуска
-
№АртикулНазвание
-
17080003 CLAMP, HOSECLAMP, HOSE
-
28450103 LINE, FUEL (1/4" DP SAE J30R9)LINE, FUEL (1/4" DP SAE J30R9)
-
32530009 FILTER, SMALL, IN LINEFILTER, SMALL, IN LINE
-
48450105-65 SHEATH REFLECTSLEEVE (16MMX65CM)SHEATH REFLECTSLEEVE (16MMX65CM)
-
58450040-600 LINE FUEL (1/4 ID) (600 CM)LINE FUEL (1/4 ID) (600 CM)
-
62202854 SHORT BLOCK KIT (600 ATV) (SEE NOTE)SHORT BLOCK KIT (600 ATV) (SEE NOTE)
-
77517386 SCREWSCREW
-
88360009-600 LINE, FUEL (1/8 ID) (600 CM)LINE, FUEL (1/8 ID) (600 CM)
-
95412287 HOSE FORMED, VENTHOSE FORMED, VENT
-
107517867 SCREW, L/W SEM (M5X0.8X10) (PHPN ZY)SCREW, L/W SEM (M5X0.8X10) (PHPN ZY)
-
115247141 BRACKET CARBURETOR MOUNT PLATEDBRACKET CARBURETOR MOUNT PLATED
-
127542105 NUT HEXAGONNUT HEXAGON
-
137558203 WASHERWASHER
-
143110050 MOUNT, CARBURETORMOUNT, CARBURETOR
-
157542143 INSERTINSERT
-
167051011 VALVE, CHECKVALVE, CHECK
-
177516734 SCREWSCREW
-
187547108 NUTNUT
-
195247368 BRACKET MOUNT, ENGINE TOP PLATEDBRACKET MOUNT, ENGINE TOP PLATED
-
207555815 WASHER, FLATWASHER, FLAT
-
217517868 BOLT, L/WZY (M6X1.0X30) (HXHD SEMS)BOLT, L/WZY (M6X1.0X30) (HXHD SEMS)
-
224011139 CABLE COM (BLACK/BATTERY/FRAME)CABLE COM (BLACK/BATTERY/FRAME)
-
235411944 BOOT, CLUTCH INTAKE ( 2.25I.D) (IF BUILT BEFORE 11/15/04)BOOT, CLUTCH INTAKE ( 2.25I.D) (IF BUILT BEFORE 11/15/04)
-
235412634 BOOT CLUTCH INTAKE ( 2.25 I.D) (IF BUILT AFTER 11/15/04)BOOT CLUTCH INTAKE ( 2.25 I.D) (IF BUILT AFTER 11/15/04)
-
247080451 CLAMP, HOSECLAMP, HOSE
-
253021119 MOUNT, RUBBER (REAR) (60 DURO)MOUNT, RUBBER (REAR) (60 DURO)
-
267518197 BOLT (7/16X20X8)BOLT (7/16X20X8)
-
277575202 WASHER LOCKWASHER LOCK
-
285210748 WASHERWASHER
-
295430261 BUSHINGBUSHING
-
307518364 BOLT HEXAGON FLANGE GR5 (3/8 16X7/8)BOLT HEXAGON FLANGE GR5 (3/8 16X7/8)
-
313110044 MOUNT, RUBBER (TOP)MOUNT, RUBBER (TOP)
-
325244771-067 MNT ENGINE (LOWER/FRONT/BLACK)MNT ENGINE (LOWER/FRONT/BLACK)
-
337555823 WASHERWASHER
-
345245043 BRACKET TORQUE STOP PLATEDBRACKET TORQUE STOP PLATED
