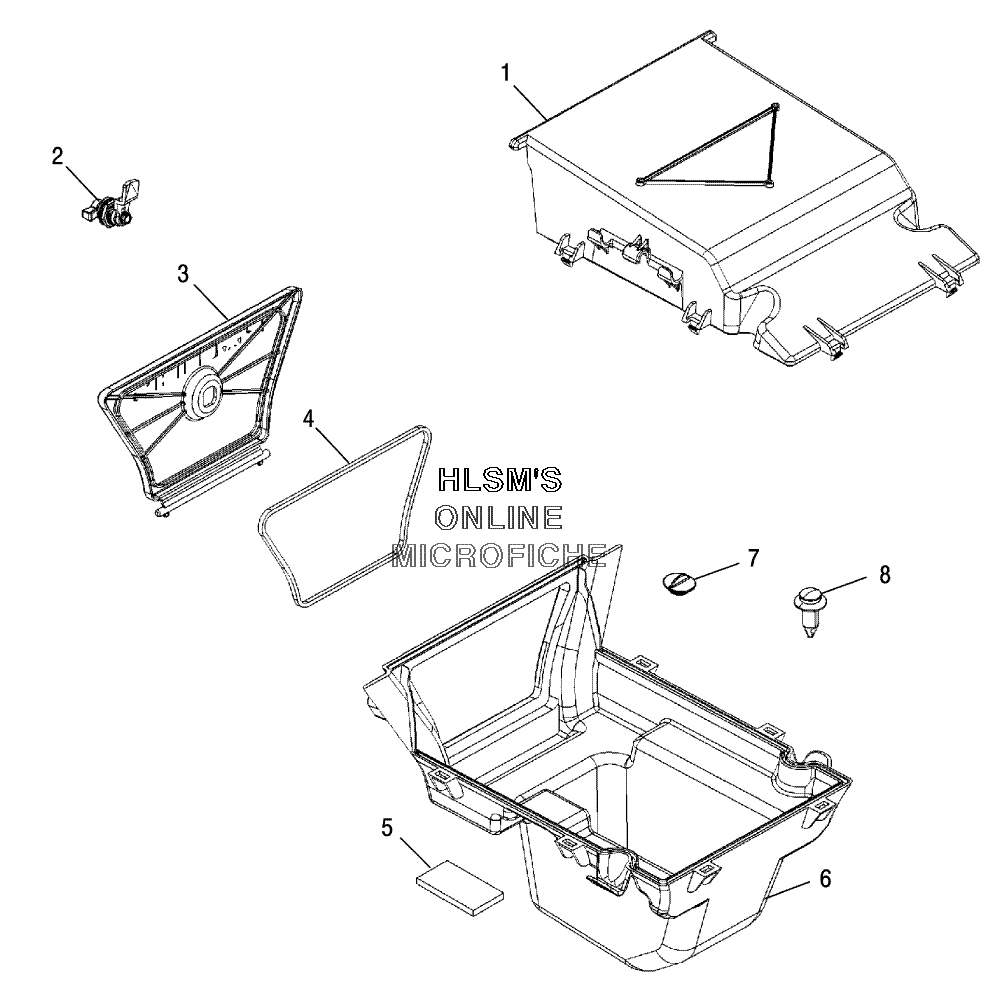

STORAGE BOX - REAR для Polaris SPORTSMAN 600 (A05MH59AK) (CAMO GREEN METALLIC) - 2005 года выпуска
-
№АртикулНазвание
-
15435605 BOX STORAGE (REAR/RUPPER)BOX STORAGE (REAR/RUPPER)
-
27081205 LATCH 1/4 TURN, CAMLATCH 1/4 TURN, CAM
-
35435368 COVERCOVER
-
45521694 SEALSEAL
-
55810455 PADPAD
-
65435630 BOX STORAGE (REAR/LOWER)BOX STORAGE (REAR/LOWER)
-
75412352 PLUG COMPARTMENTPLUG COMPARTMENT
-
87661855 RIVET, TUFLOCKRIVET, TUFLOCK
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - FRONT BRAKE LINES
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROLS
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD W/ CYLINDER
- DECALS
- DIFFERENTIAL - FRONT
- DRIVESHAFT - FRONT
- DRIVESHAFT - FRONT INTERMEDIATE
- DRIVESHAFT - REAR
- ELECTRICAL - LIGHTING SYSTEMS
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE - REAR
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HANDLEBAR W/ HEADLIGHT
- MAGNETO
- MOUNTING - ENGINE
- MOUNTING - REAR GEARCASE
- MOUNTING - TRANSMISSION
- OIL DIPSTICK
- OIL PUMP
- PROP SHAFT - REAR
- RACK AND BUMPER MOUNTING - REAR
- STARTING MOTOR
- STEERING POST
- STORAGE BOX - FRONT W/ BUMPER MOUNTING
- • STORAGE BOX - REAR
- SUSPENSION - FRONT A ARM W/ STRUT MOUNTING
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
