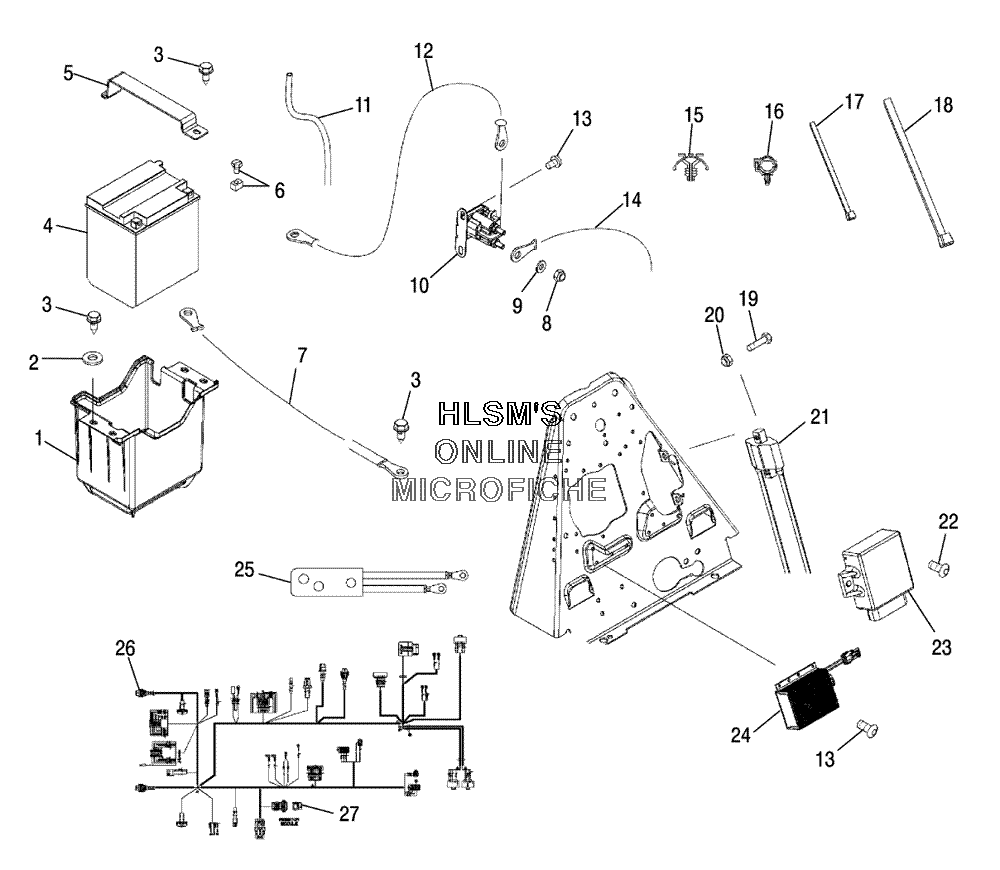

ELECTRICAL COMPONENTS для Polaris SPORTSMAN 600 (A05MH59AK) (CAMO GREEN METALLIC) - 2005 года выпуска
-
№АртикулНазвание
-
15435696 BOX BATTERYBOX BATTERY
-
27555859 WASHER, FLATWASHER, FLAT
-
37512232 BOLTBOLT
-
44010630 BATTERY (30 AMP) (TOP MOUNT)BATTERY (30 AMP) (TOP MOUNT)
-
55247376 STRAP BATTERY, HOLD DOWN 30 AMPSTRAP BATTERY, HOLD DOWN 30 AMP
-
62202099 BATTERY BOLT KIT, 30AHBATTERY BOLT KIT, 30AH
-
74011139 CABLE, COM (BLACK/BATTERY/FRAME)CABLE, COM (BLACK/BATTERY/FRAME)
-
87547283 NUT (1/4 20 HX JAM Y)NUT (1/4 20 HX JAM Y)
-
97552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
104011072 SWITCH MAGNETIC (IF BUILT BEFORE 1/10/05)SWITCH MAGNETIC (IF BUILT BEFORE 1/10/05)
-
104011251 SWITCH MAGNETIC (IF BUILT AFTER 1/10/05)SWITCH MAGNETIC (IF BUILT AFTER 1/10/05)
-
115432077 TUBE, VENTTUBE, VENT
-
124010471 CABLE RED, 8.5 BATTERY/SOLENOIDCABLE RED, 8.5 BATTERY/SOLENOID
-
137512024 SCREWSCREW
-
144010376 CABLE, SOLENOID/STATER (25")CABLE, SOLENOID/STATER (25")
-
157080965 MOUNT CABLE TIE (.25)MOUNT CABLE TIE (.25)
-
164020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
177080138 CABLE TIECABLE TIE
-
187080492 CABLE TIE (11 INCH)CABLE TIE (11 INCH)
-
197512007 BOLTBOLT
-
207541925 NUT, NYLOKNUT, NYLOK
-
214010898 COIL IGNITION KOKCOIL IGNITION KOK
-
227512084 SCREWSCREW
-
234011017 CONTROLLER IGNITIONCONTROLLER IGNITION
-
244011044 CONTROLLER MODULE FAN, REGCONTROLLER MODULE FAN, REG
-
252410535 HARNESS WINCH, PREWIREHARNESS WINCH, PREWIRE
-
262410466 HARNESS MAIN, COMHARNESS MAIN, COM
-
274010924 MODULE, RESISTORMODULE, RESISTOR
