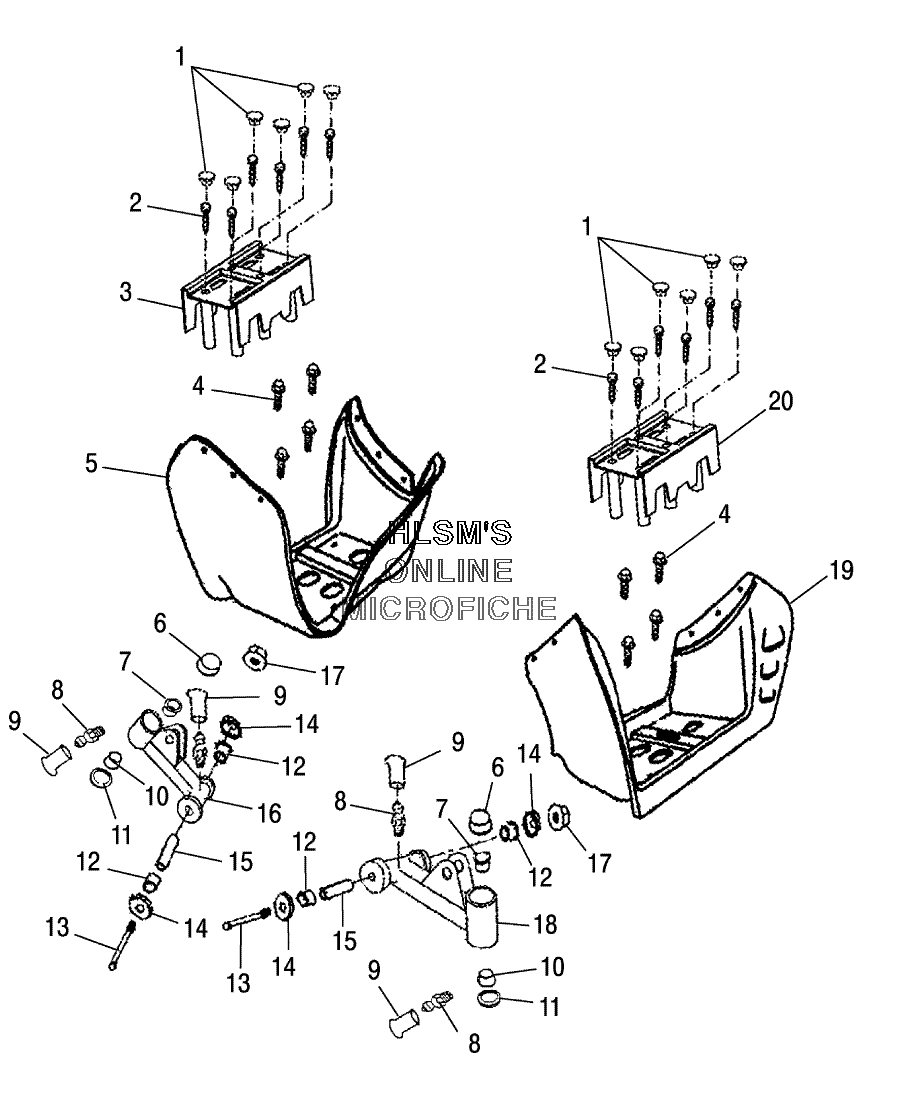

SUSPENSION - SWING ARM W/ FOOTREST для Polaris PREDATOR 50 (A05KA05CA) - 2005 года выпуска`
-
№АртикулНазвание
-
10451765 GROMMET FOOTRESTGROMMET FOOTREST
-
20450667 BOLT PHILLIPSBOLT PHILLIPS
-
30452050 FOOTWELL REMOVEABLE (RIGHT)FOOTWELL REMOVEABLE (RIGHT)
-
40450340 BOLT HEXAGONBOLT HEXAGON
-
50451330-070 FOOTWELL (RIGHT/BLACK)FOOTWELL (RIGHT/BLACK)
-
60451811 COVER SUSPENSION ARMCOVER SUSPENSION ARM
-
70450313 BUSHING GREASE RETAINERBUSHING GREASE RETAINER
-
80450320 VALVE GREASEVALVE GREASE
-
90450321 CAP RUBBERCAP RUBBER
-
100450314 BUSHING GREASE RETAINERBUSHING GREASE RETAINER
-
110450317 RUBBER DUSTPROOFRUBBER DUSTPROOF
-
120451763 BUSHINGBUSHING
-
130451764 BOLT HEXAGON FLANGE (10MM)BOLT HEXAGON FLANGE (10MM)
-
140451762 CAP RUBBERCAP RUBBER
-
150451761 SPACERSPACER
-
160452046 SRM SUSPENSION (RIGHT)SRM SUSPENSION (RIGHT)
-
160452048 ARM SUSPENSION (RIGHT)ARM SUSPENSION (RIGHT)
-
170450249 NUT FLANGENUT FLANGE
-
180452045 ARM SUSPENSION (LEFT)ARM SUSPENSION (LEFT)
-
180452047 ARM SUSPENSION (LEFT)ARM SUSPENSION (LEFT)
-
190451329-070 FOOTWELL (LEFT/BLACK)FOOTWELL (LEFT/BLACK)
-
200452049 FOOTWELL, REMOVEABLE (LEFT)FOOTWELL, REMOVEABLE (LEFT)
