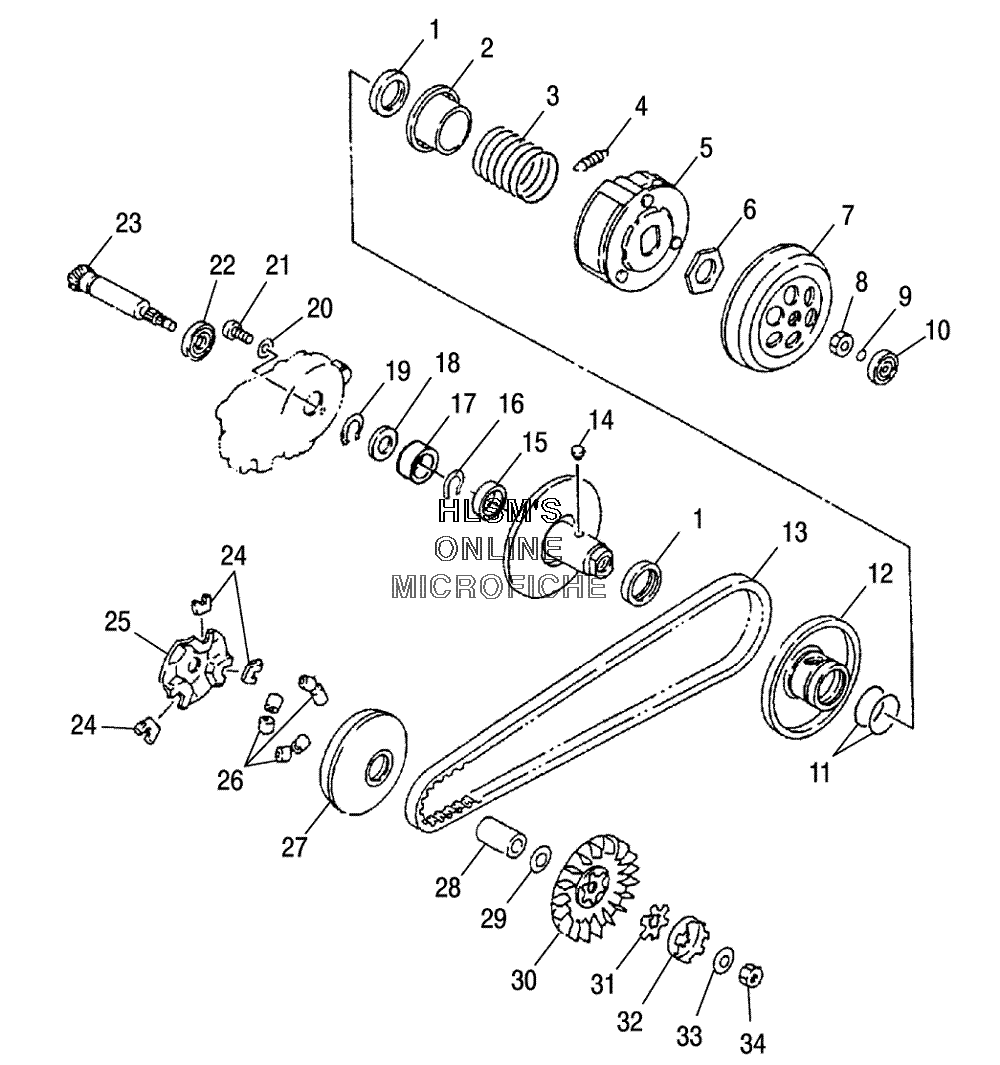

PULLEY - DRIVE для Polaris PREDATOR 50 (A05KA05CA) - 2005 года выпуска
-
№АртикулНазвание
-
10450211 SEAL OILSEAL OIL
-
20450218 SPRING SEAT SECONDARYSPRING SEAT SECONDARY
-
30450216 SPRING COMPRESSIONSPRING COMPRESSION
-
40450205 SPRING WEIGHT CLUTCHSPRING WEIGHT CLUTCH
-
50450203 CARRIER CLUTCHCARRIER CLUTCH
-
60450220 NUTNUT
-
70450222 COVER CLUTCHCOVER CLUTCH
-
80450224 NUT HEXAGONNUT HEXAGON
-
90450226 O-RINGO-RING
-
100450225 BEARINGBEARING
-
110450212 RING OILRING OIL
-
120450209 WHEEL SLOT SLIDING SECONDARYWHEEL SLOT SLIDING SECONDARY
-
130450238 V BELTV BELT
-
140450214 PIN GUIDEPIN GUIDE
-
150451016 BEARING BALLBEARING BALL
-
160451017 CIR CLIPCIR CLIP
-
170451015 BEARING NEEDLEBEARING NEEDLE
-
180450200 SEAL OILSEAL OIL
-
190450198 CIRCLIP EXTERNALCIRCLIP EXTERNAL
-
200450041 WASHER PLAINWASHER PLAIN
-
210450158 BOLT SOCKET HEXAGONBOLT SOCKET HEXAGON
-
220450199 BEARINGBEARING
-
230450194 PRIMARY DRIVE ASSYPRIMARY DRIVE ASSY
-
240450233 SLIDERSLIDER
-
250450231 PLATE CAMPLATE CAM
-
260450229 ROLLER WEIGHTROLLER WEIGHT
-
270450227 WHEEL SLOT SLIDING PRIMARYWHEEL SLOT SLIDING PRIMARY
-
280450235 BUSHINGBUSHING
-
290450654 WASHER PLAINWASHER PLAIN
-
300450240 SHEAVE FIXED PRIMARYSHEAVE FIXED PRIMARY
-
310450242 WASHER CLAWWASHER CLAW
-
320450574 CLUTCH ONEWAYCLUTCH ONEWAY
-
330450247 WASHER SPRINGWASHER SPRING
-
340450249 NUT FLANGENUT FLANGE
-
340451748 CLUTCH SECONDARY ASSY (INCL. INCL. 1-7, 11, 12, 14-19)CLUTCH SECONDARY ASSY (INCL. INCL. 1-7, 11, 12, 14-19)
-
340451747 CLUTCH PRIMARY ASSY (INCL. 24-31)CLUTCH PRIMARY ASSY (INCL. 24-31)
-
340450207 WHEEL SLOT, FIXED SECONDARY (INCL. 14-19)WHEEL SLOT, FIXED SECONDARY (INCL. 14-19)
