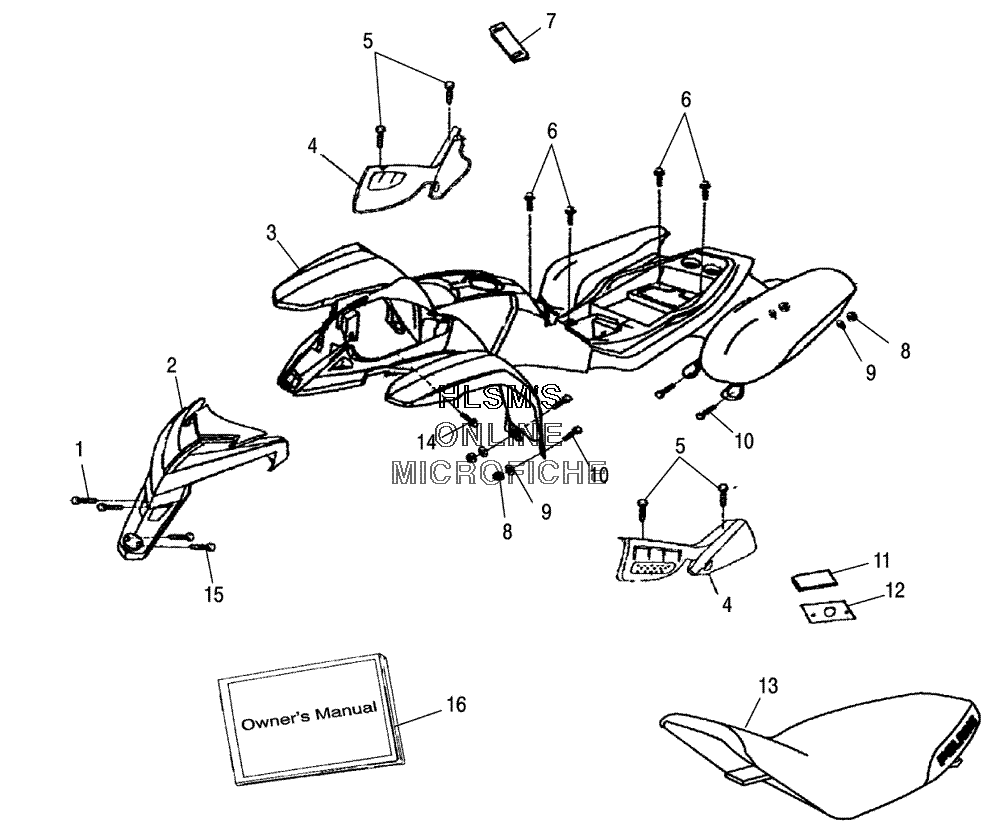

FENDER - REAR W/ SEAT для Polaris PREDATOR 50 (A05KA05CA) - 2005 года выпуска
-
№АртикулНазвание
-
10451812 SCREW TAPPING (4MM)SCREW TAPPING (4MM)
-
20451317-177 COVER (FRONT/BLACK)COVER (FRONT/BLACK)
-
30451318-293 CAB PREDATOR (INDY RED)CAB PREDATOR (INDY RED)
-
40451325-070 PANEL SIDE (LEFT/BLACK)PANEL SIDE (LEFT/BLACK)
-
40451326-070 PANEL SIDE (RIGHT/BLACK)PANEL SIDE (RIGHT/BLACK)
-
50450676 SCREW TAPPINGSCREW TAPPING
-
60450340 BOLT HEXAGONBOLT HEXAGON
-
70451140 STRAP BATTERYSTRAP BATTERY
-
80450741 NUT LOCKNUT LOCK
-
90450710 WASHER PLAINWASHER PLAIN
-
100450622 BOLT PHILLIPSBOLT PHILLIPS
-
110450346 FOAM BATTERY PADFOAM BATTERY PAD
-
120450345 PAD FOIL PROTECTORPAD FOIL PROTECTOR
-
130451328 SEAT ASSYSEAT ASSY
-
140450824 BOLT WITH WASHER HEXAGONBOLT WITH WASHER HEXAGON
-
150451766 SCREW TAPPING (4MM)SCREW TAPPING (4MM)
-
169919505 OWNERS MANUALOWNERS MANUAL
