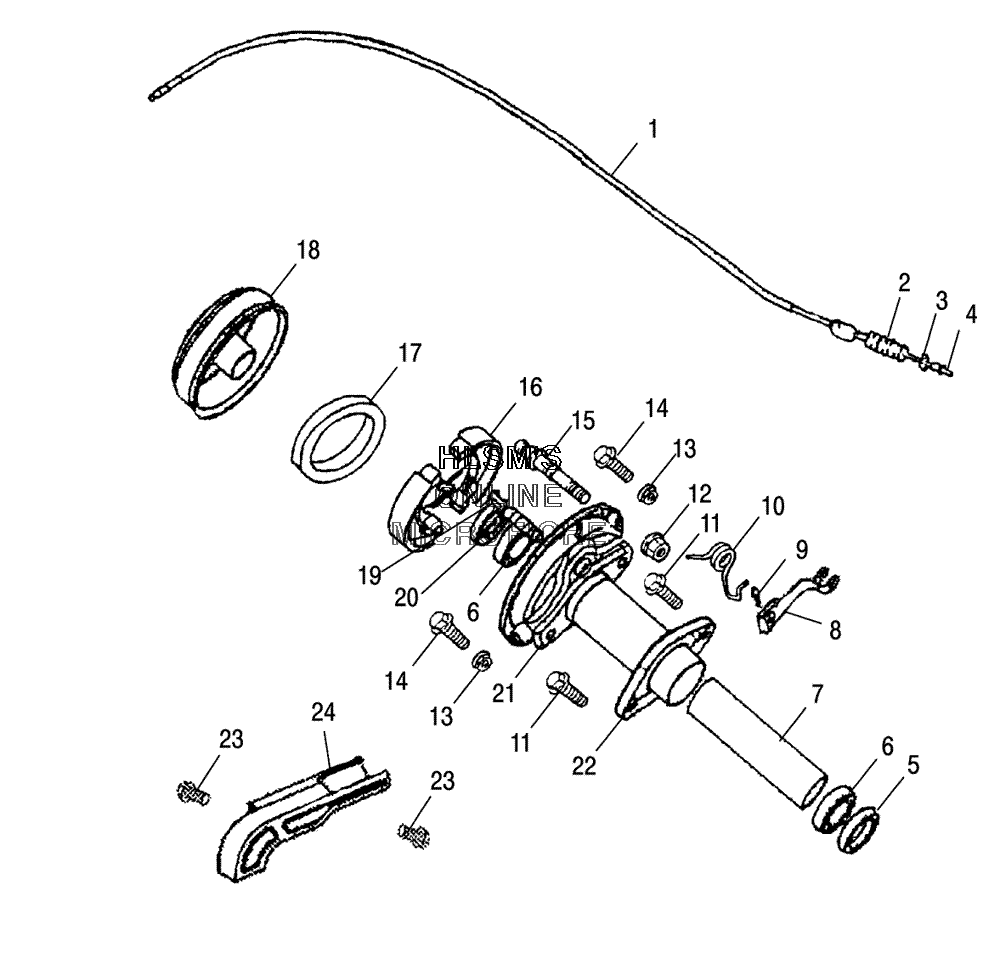

BRAKE - REAR для Polaris PREDATOR 50 (A05KA05CA) - 2005 года выпуска
-
№АртикулНазвание
-
10451784 CABLE BRAKE (REAR)CABLE BRAKE (REAR)
-
20450435 SPRING CABLE BRAKE (REAR)SPRING CABLE BRAKE (REAR)
-
30450437 FIXTURE BRAKE (REAR)FIXTURE BRAKE (REAR)
-
40451079 NUT ADJUST BRAKENUT ADJUST BRAKE
-
50451781 SEAL OILSEAL OIL
-
60450429 BEARING NEEDLEBEARING NEEDLE
-
70451780 TUBE SPACERTUBE SPACER
-
80451782 ARM BRAKE (REAR)ARM BRAKE (REAR)
-
90451783 BOLT HEXAGON FLANGE (6MM)BOLT HEXAGON FLANGE (6MM)
-
100450453 SPRING BRAKE ARM (REAR)SPRING BRAKE ARM (REAR)
-
110450451 BOLT HEXAGONBOLT HEXAGON
-
120450881 NUT LOCK NYLONNUT LOCK NYLON
-
130450529 NUT FLANGENUT FLANGE
-
140450452 BOLT HEXAGONBOLT HEXAGON
-
150450854 SHAFT FIX BRAKE (REAR)SHAFT FIX BRAKE (REAR)
-
160450434 SHOE BRAKE (REAR)SHOE BRAKE (REAR)
-
170450442 RUBBER PROTECTIVERUBBER PROTECTIVE
-
180450441 DRUM BRAKE (REAR)DRUM BRAKE (REAR)
-
190450431 SHAFT CAM BRAKE (REAR)SHAFT CAM BRAKE (REAR)
-
200450430 SEAL OILSEAL OIL
-
210450440 PLATE BRAKE (REAR)PLATE BRAKE (REAR)
-
220452056 AXLE FIXED HOUSING ASSYAXLE FIXED HOUSING ASSY
-
230450325 BOLT HEXAGONBOLT HEXAGON
-
240452057 GUARD, CHAINGUARD, CHAIN
