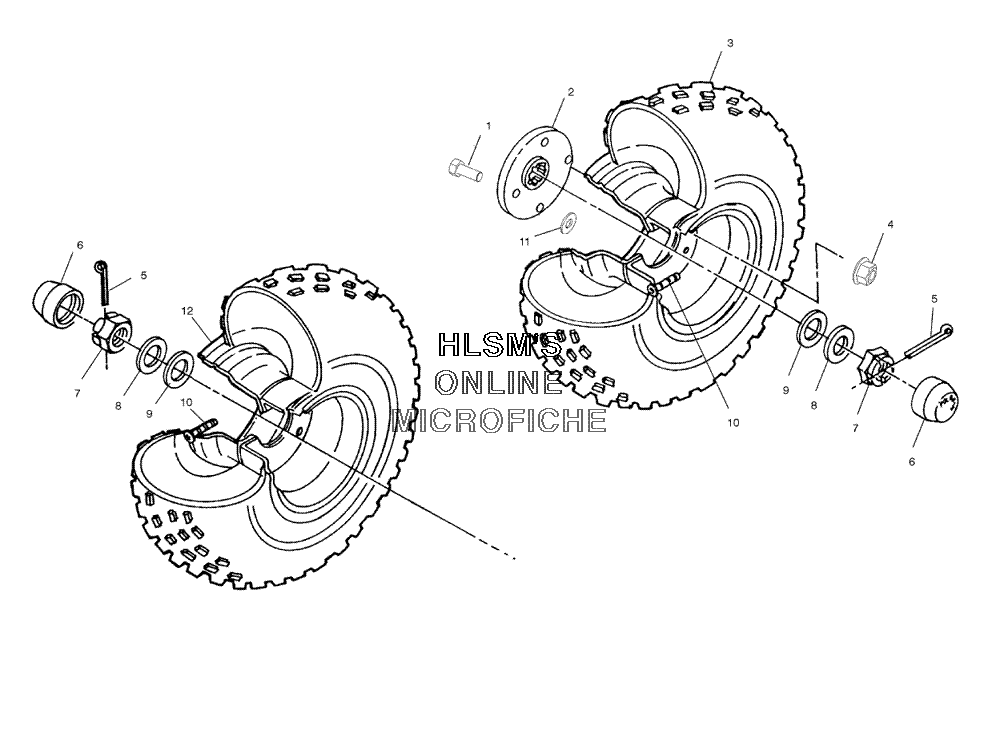

WHEEL - REAR AND MIDDLE для Polaris SPORTSMAN 6X6 (A04CL50AA) - 2004 года выпуска`
-
№АртикулНазвание
-
17512673 BOLTBOLT
-
25131777 HUIB WHEEL (LARGE/REAR)HUIB WHEEL (LARGE/REAR)
-
35410948 TIRETIRE
-
47542714 NUTNUT
-
57661404 PIN COTTERPIN COTTER
-
65411164 COVER DUST HUBCOVER DUST HUB
-
77543005 NUT CASTLENUT CASTLE
-
87555745 WASHERWASHER
-
97555796 WASHER CONEWASHER CONE
-
101525017 VALVE RIMVALVE RIM
-
117670081 PUSHNUT BOLTPUSHNUT BOLT
-
121520183-117 RIM (REAR/SILVER) (IF BUILT BEFORE 9/11/03)RIM (REAR/SILVER) (IF BUILT BEFORE 9/11/03)
-
121520183-067 RIM (REAR/BLACK) (IF BUILT AFTER 9/11/03)RIM (REAR/BLACK) (IF BUILT AFTER 9/11/03)
