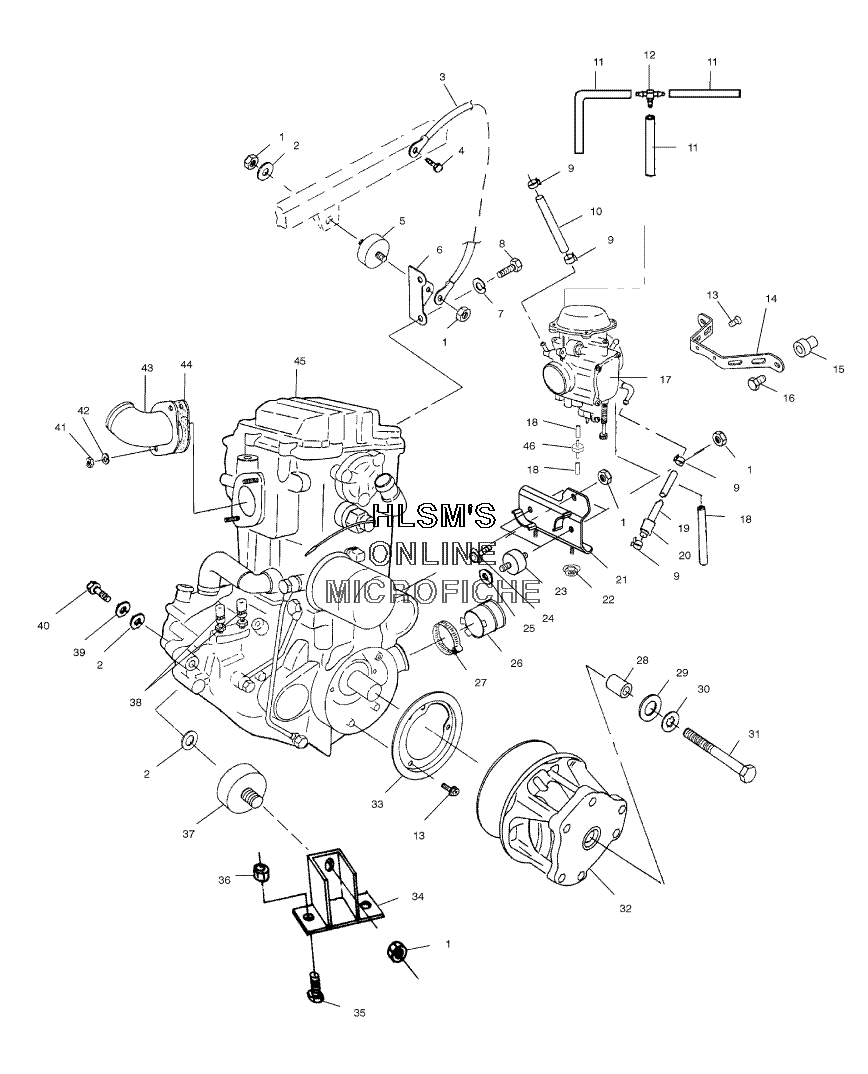

MOUNTING - ENGINE для Polaris SPORTSMAN 6X6 (A04CL50AA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7547108 NUT
    NUT
  • 2
    7555801 WASHER
    WASHER
  • 3
    4010132 CABLE GND ENGINE
    CABLE GND ENGINE
  • 4
    7512232 BOLT
    BOLT
  • 5
    3110044 MOUNT RUBBER TOP
    MOUNT RUBBER TOP
  • 6
    5242674 BRAKET ENGINE MOUNT (TOP)
    BRAKET ENGINE MOUNT (TOP)
  • 7
    7552901 WASHER SPRING LOCK
    WASHER SPRING LOCK
  • 8
    7512315 BOLT
    BOLT
  • 9
    7080003 CLAMP HOSE
    CLAMP HOSE
  • 10
    8450040-600 LINE FUEL (1/4 ID/600 CM)
    LINE FUEL (1/4 ID/600 CM)
  • 11
    8450003-1525 LINE FUEL (1/4 ID/1525 CM)
    LINE FUEL (1/4 ID/1525 CM)
  • 12
    7052075 FITTING TEE
    FITTING TEE
  • 13
    3084205 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 14
    5246553 BRAKET CARB MOUNT (PLATED)
    BRAKET CARB MOUNT (PLATED)
  • 15
    7541923 NUT WELL
    NUT WELL
  • 16
    7512247 BOLT
    BOLT
  • 18
    8360009-600 LINE FUEL (600 CM)
    LINE FUEL (600 CM)
  • 19
    8450103 LINE FUEL
    LINE FUEL
  • 20
    8450105-18 SHEATH, REFLECT SLEEVE
    SHEATH, REFLECT SLEEVE
  • 21
    1012883-067 MOUNT ENGINE (REAR/BLACK)
    MOUNT ENGINE (REAR/BLACK)
  • 22
    7547089 NUT
    NUT
  • 23
    3110046 MOUNT RUBBER (FRONT)
    MOUNT RUBBER (FRONT)
  • 24
    7517289 SCREW
    SCREW
  • 25
    7555815 WASHER FLAT
    WASHER FLAT
  • 26
    5410421 BOOT CLUTCH INTAKE (IF BUILT BEFORE 8/04/03)
    BOOT CLUTCH INTAKE (IF BUILT BEFORE 8/04/03)
  • 26
    5412487 BOOT CLUTCH INTAKE (IF BUILT AFTER 8/04/03)
    BOOT CLUTCH INTAKE (IF BUILT AFTER 8/04/03)
  • 27
    7080511 CLAMP NARROW BAND
    CLAMP NARROW BAND
  • 28
    5430261 BUSHING
    BUSHING
  • 29
    5210748 WASHER
    WASHER
  • 30
    7575202 WASHER LOCK
    WASHER LOCK
  • 31
    7512566 BOLT
    BOLT
  • 34
    1040688-067 MOUNT ENGINE (FRONT/BLACK)
    MOUNT ENGINE (FRONT/BLACK)
  • 35
    7515398 SCREW
    SCREW
  • 36
    7542324 NUT NYLOK
    NUT NYLOK
  • 37
    3110067 MOUNT MOTOR
    MOUNT MOTOR
  • 38
    7080474 CLAMP HOSE
    CLAMP HOSE
  • 39
    7552603 WASHER SPRING LOCK
    WASHER SPRING LOCK
  • 40
    7515417 SCREW
    SCREW
  • 43
    1261171-029 WELD MANIFOLD 1.625 W/PN (BLACK)
    WELD MANIFOLD 1.625 W/PN (BLACK)
  • 45
    3085556 ENGINE, SHORTBLOCK (EH50PLE10) NOTE:
    ENGINE, SHORTBLOCK (EH50PLE10) NOTE:
  • 46
    7051011 VALVE CHECK
    VALVE CHECK
