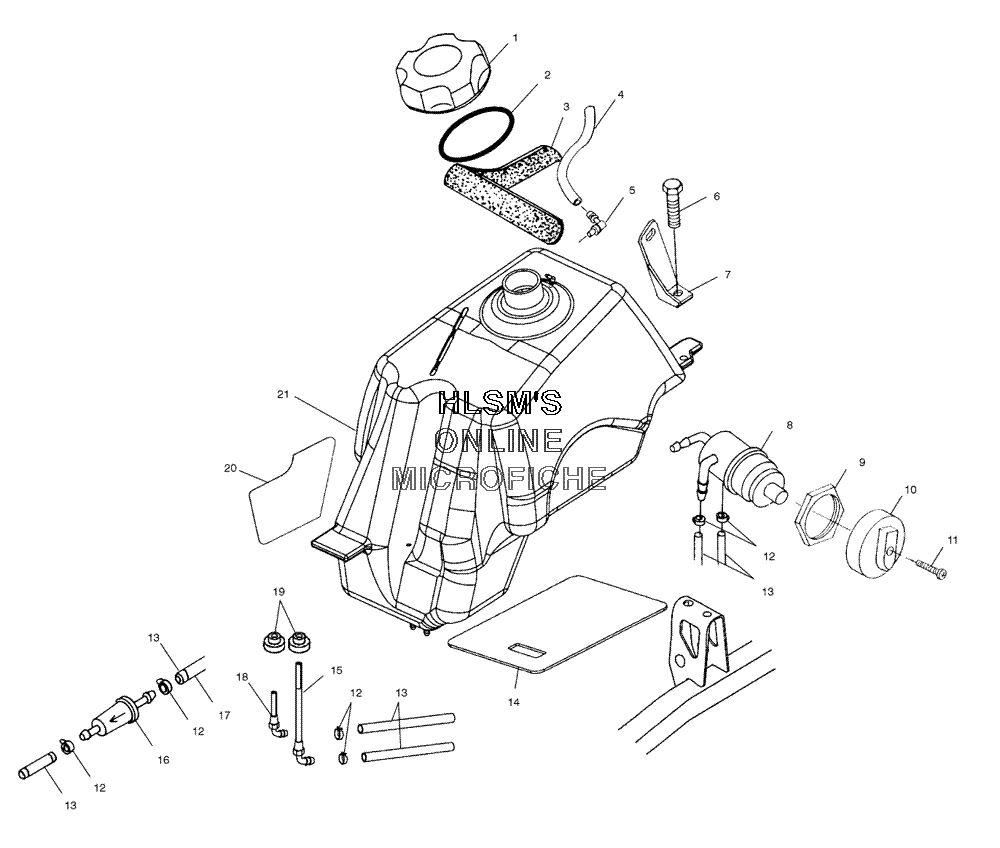

FUEL TANK для Polaris SPORTSMAN 6X6 (A04CL50AA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    5435324 CAP GAS TANK
    CAP GAS TANK
  • 2
    5812123 GASKET
    GASKET
  • 3
    5811310 SEAL FOAM (21")
    SEAL FOAM (21")
  • 4
    8360009-600 LINE FUEL (600 CM)
    LINE FUEL (600 CM)
  • 5
    5431053 VENT TANK
    VENT TANK
  • 6
    7517685 SCREW
    SCREW
  • 7
    5222154 BRAKET FUEL COVER MOUNT PLATED (LEFT)
    BRAKET FUEL COVER MOUNT PLATED (LEFT)
  • 7
    5222155 BRAKET FUEL COVER MOUNT PLATED (RIGHT)
    BRAKET FUEL COVER MOUNT PLATED (RIGHT)
  • 8
    7052161 VALVE 3 WAY
    VALVE 3 WAY
  • 9
    5432733 NUT FUEL VALVE
    NUT FUEL VALVE
  • 10
    5432559 KNOB FUEL VALVE
    KNOB FUEL VALVE
  • 11
    7517505 SCREW
    SCREW
  • 12
    7080003 CLAMP HOSE
    CLAMP HOSE
  • 13
    8450103 LINE FUEL
    LINE FUEL
  • 14
    5812005 FOIL
    FOIL
  • 15
    7052349 FITTING OUTLET 90Ш MAIN Y PRS
    FITTING OUTLET 90Ш MAIN Y PRS
  • 16
    2530009 FILTER SMALL IN LINE
    FILTER SMALL IN LINE
  • 17
    8450105-15 FUEL LINE
    FUEL LINE
  • 18
    7052289 FITTING 90Ш DEXTER W/FILTER
    FITTING 90Ш DEXTER W/FILTER
  • 19
    7052362 GROMMET FLANGED
    GROMMET FLANGED
  • 20
    5812004 FOIL
    FOIL
  • 21
    2520361 FUEL TANK ASSY (INCL. 15 ,18)
    FUEL TANK ASSY (INCL. 15 ,18)
