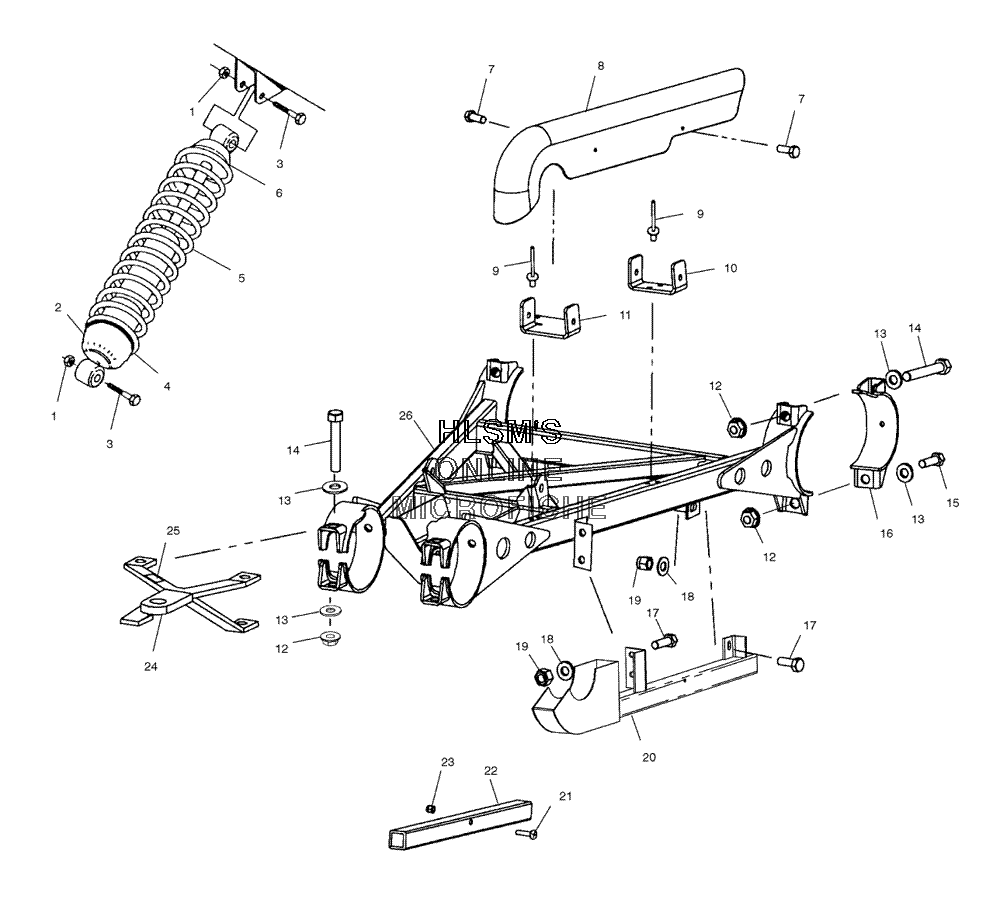

SUSPENSION - SWING ARM WELDMENT - REAR для Polaris SPORTSMAN 6X6 (A04CL50AA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7542439 NUT NYLOK
    NUT NYLOK
  • 2
    7041963 SHOCK RR
    SHOCK RR
  • 3
    7515415 SCREW
    SCREW
  • 4
    7556142 WASHER
    WASHER
  • 5
    7041880-067 SPRING COMP (LARGE/BLACK)
    SPRING COMP (LARGE/BLACK)
  • 6
    5241147 RETAINER SHOCK
    RETAINER SHOCK
  • 7
    7517386 SCREW
    SCREW
  • 8
    5433539 COVER CHAIN (REAR)
    COVER CHAIN (REAR)
  • 9
    7661637 RIVET INTERLOCK Z
    RIVET INTERLOCK Z
  • 10
    5244077-067 MOUNT CHAIN COVER (FRONT/BLACK)
    MOUNT CHAIN COVER (FRONT/BLACK)
  • 11
    5244078-067 MOUNT CHAIN COVER (REAR/BLACK)
    MOUNT CHAIN COVER (REAR/BLACK)
  • 12
    7542522 NUT FLANGE
    NUT FLANGE
  • 13
    7555883 WASHER
    WASHER
  • 14
    7512576 BOLT
    BOLT
  • 15
    7512520 BOLT
    BOLT
  • 16
    1580067-067 WELD BRAKET SWING ARM EXTERIOR (BLACK)
    WELD BRAKET SWING ARM EXTERIOR (BLACK)
  • 17
    7515321 BOLT
    BOLT
  • 18
    7558402 WASHER FLAT
    WASHER FLAT
  • 19
    7542324 NUT NYLOK
    NUT NYLOK
  • 20
    1013327-067 EXT CHAIN GUARD (LOWER/BLACK)
    EXT CHAIN GUARD (LOWER/BLACK)
  • 21
    7515117 SCREW
    SCREW
  • 22
    5521279 GUIDE CHAIN (REAR)
    GUIDE CHAIN (REAR)
  • 23
    7541925 NUT NYLOK
    NUT NYLOK
  • 24
    2200472 HITCH CHAIN DRIVEN ATV (INCL. 12, 13, 14)
    HITCH CHAIN DRIVEN ATV (INCL. 12, 13, 14)
  • 25
    7170509 DECAL HITCH
    DECAL HITCH
  • 26
    1541344-067 SWING ARM EXTERIOR (BLACK)
    SWING ARM EXTERIOR (BLACK)
