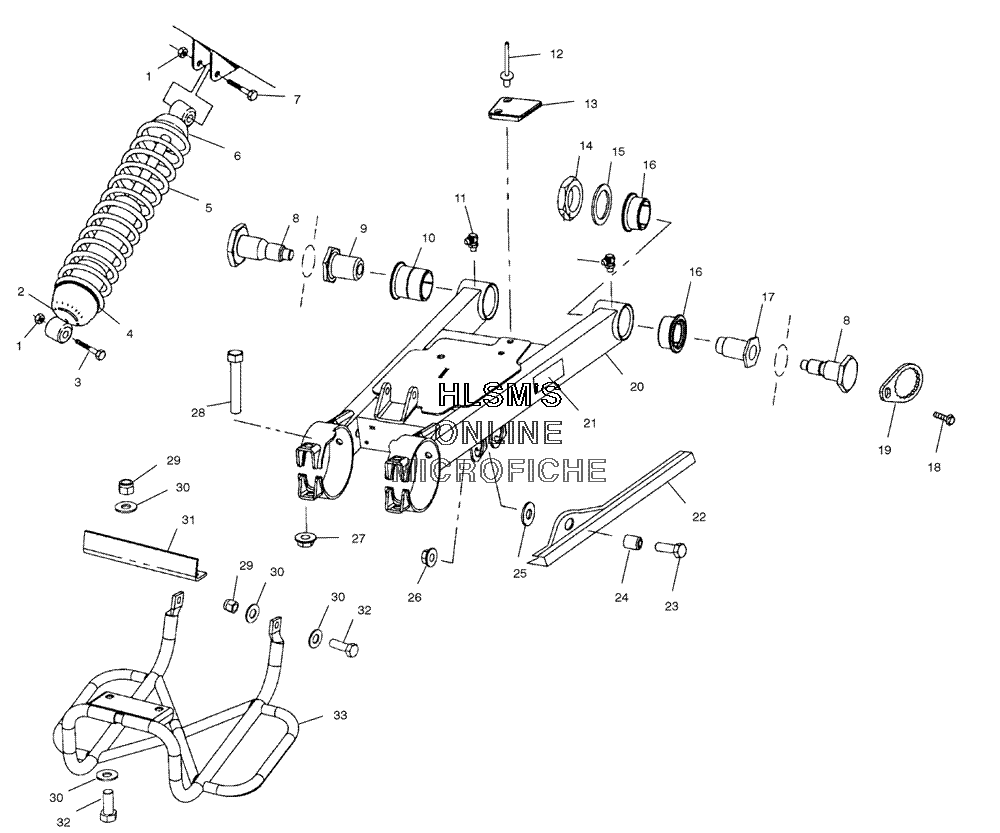

SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING для Polaris SPORTSMAN 6X6 (A04CL50AA) - 2004 года выпуска`
-
№АртикулНазвание
-
17542439 NUT NYLOKNUT NYLOK
-
27041962 SHOCK MID AXLESHOCK MID AXLE
-
37515438 BOLTBOLT
-
47556142 WASHERWASHER
-
57041987-067 SPRING COMP (LARGE/BLACK)SPRING COMP (LARGE/BLACK)
-
65241147 RETAINER SHOCKRETAINER SHOCK
-
77515415 SCREWSCREW
-
85134321 BOLT PIVOTBOLT PIVOT
-
95133166 BUSHING PIVOT (LEFT)BUSHING PIVOT (LEFT)
-
105434545 BUSHING HYBRID (LEFT/BLACK)BUSHING HYBRID (LEFT/BLACK)
-
117080510 FITTING ZERK 90 DEGREEFITTING ZERK 90 DEGREE
-
127661046 RIVET POPRIVET POP
-
135432727 GUIDE CHAIN PADGUIDE CHAIN PAD
-
147547082 NUT HEXAGON JAMNUT HEXAGON JAM
-
157556035 WASHER FLATWASHER FLAT
-
165434546 BUSHING HYBRID (RIGHT/BLACK)BUSHING HYBRID (RIGHT/BLACK)
-
175133167 BUSHING PIVOT (RIGHT)BUSHING PIVOT (RIGHT)
-
187515399 SCREWSCREW
-
195247488 BRAKET BOLT LOCKBRAKET BOLT LOCK
-
201541583 SWING ARM HYBRID ASSY (INCL. 10, 11, 16)SWING ARM HYBRID ASSY (INCL. 10, 11, 16)
-
217078572 DECAL CHAIN FREEPLAY HYBRIDDECAL CHAIN FREEPLAY HYBRID
-
225432854 GUARD CHAINGUARD CHAIN
-
237515304 SCREW FLANGEDSCREW FLANGED
-
245332828 BUSHINGBUSHING
-
257558402 WASHER FLATWASHER FLAT
-
267542343 NUT FLANGENUT FLANGE
-
277542522 NUT FLANGENUT FLANGE
-
287512576 BOLTBOLT
-
297542324 NUT NYLOKNUT NYLOK
-
307558402 WASHER FLATWASHER FLAT
-
315222221-067 MOUNT ROCK GUARD BRAKET (BLACK)MOUNT ROCK GUARD BRAKET (BLACK)
-
327512325 BOLTBOLT
-
331013328-067 GUARD SWING ARM (BLACK)GUARD SWING ARM (BLACK)
