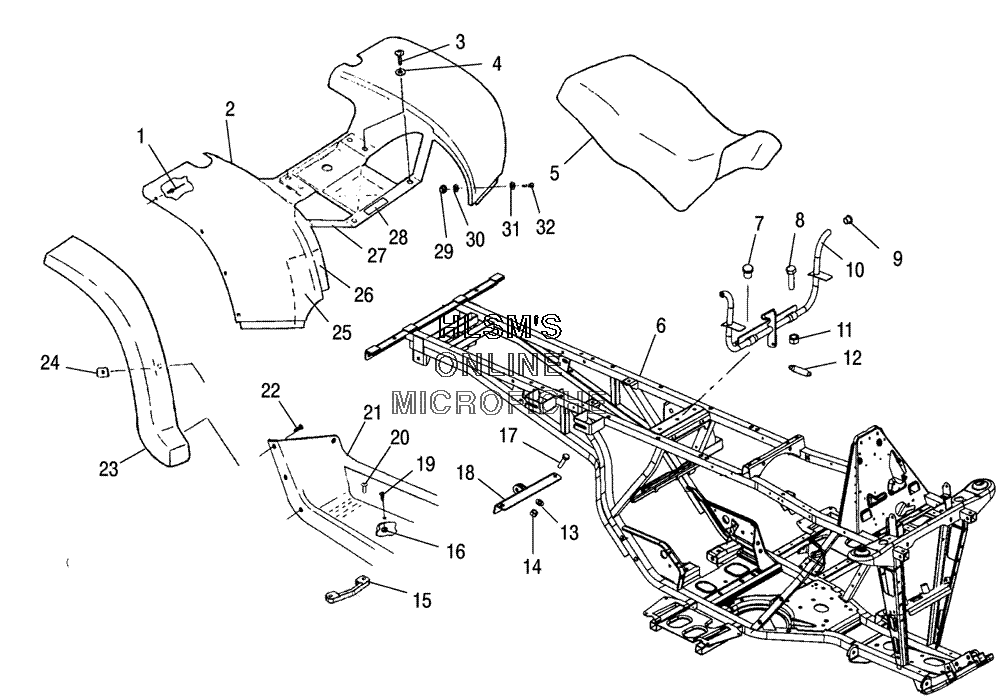

FENDER - REAR W/ SEAT для Polaris SPORTSMAN 6X6 (A04CL50AA) - 2004 года выпуска`
-
№АртикулНазвание
-
17661645 RIVETRIVET
-
25433428-400 CAB (REAR/CAMO GREEN METALLIC)CAB (REAR/CAMO GREEN METALLIC)
-
37512242 SCREWSCREW
-
47555859 WASHER FLATWASHER FLAT
-
52682959-070 SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
52682960-070 COVERING SEAT (BLACK)COVERING SEAT (BLACK)
-
61013967-067 WELD MAIN FRAME (BLACK)WELD MAIN FRAME (BLACK)
-
75410414 BUMPER RUBBERBUMPER RUBBER
-
87512240 BOLTBOLT
-
95432798 PLUG NYLONPLUG NYLON
-
101013307-067 LEVER BOX (BLACK)LEVER BOX (BLACK)
-
117542153 NUT NYLOK FLANGEDNUT NYLOK FLANGED
-
127041879 SPRING LATCH RETURNSPRING LATCH RETURN
-
137555734 WASHER FLATWASHER FLAT
-
147542324 NUT NYLOKNUT NYLOK
-
155432280 SPACER FOOTWELLSPACER FOOTWELL
-
167542122 NUT NYLOKNUT NYLOK
-
177512392 BOLTBOLT
-
181040293-067 MOUNT STRUT (REAR)MOUNT STRUT (REAR)
-
197512279 SCREWSCREW
-
207517377 SCREWSCREW
-
215432221-070 FOOTWELL NYLON (LEFT/BLACK)FOOTWELL NYLON (LEFT/BLACK)
-
215434417-070 FOOTWELL CDS NYLON SVC (RIGHT/BLACK)FOOTWELL CDS NYLON SVC (RIGHT/BLACK)
-
227512232 BOLTBOLT
-
235433429-070 GUARD, MUD (REAR/LEFT/BLACK)GUARD, MUD (REAR/LEFT/BLACK)
-
235433430-070 GUARD, MUD (REAR/RIGHT/BLACK)GUARD, MUD (REAR/RIGHT/BLACK)
-
247670057 NUT SPEEDNUT SPEED
-
255811111 FOILFOIL
-
265811106 FOIL (FRONT)FOIL (FRONT)
-
275811087 FOILFOIL
-
287079902 DECAL CARB/FILTER INFODECAL CARB/FILTER INFO
-
297541925 NUT NYLOKNUT NYLOK
-
307555792 WASHERWASHER
-
317556034 WASHERWASHER
-
327512085 SCREWSCREW
