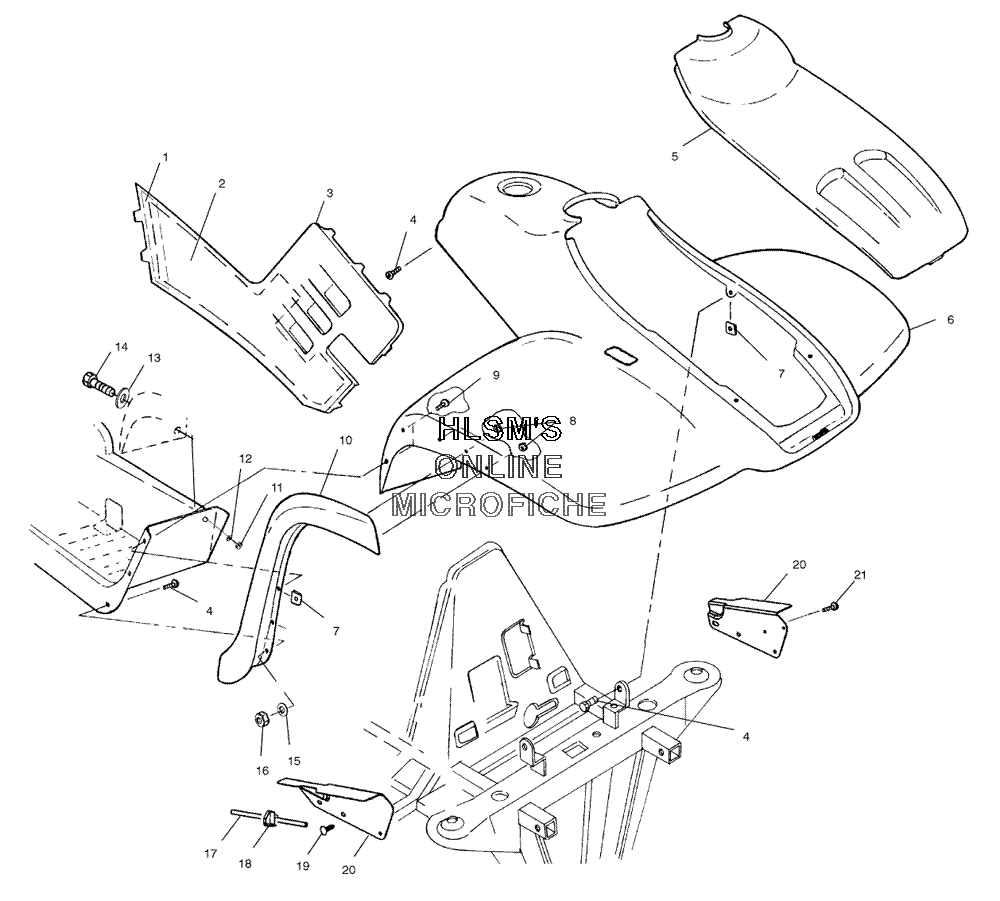

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 6X6 (A04CL50AA) - 2004 года выпуска`
-
№АртикулНазвание
-
15811491 FOIL (RIGHT)FOIL (RIGHT)
-
25810996 FOIL FOAMFOIL FOAM
-
32632663-400 PANEL/FOAM, ASSY (LEFT/CAMO GREEN METALLIC)PANEL/FOAM, ASSY (LEFT/CAMO GREEN METALLIC)
-
32632782-400 PANEL/FOAM (RIGHT/CAMO GREEN METALLIC)PANEL/FOAM (RIGHT/CAMO GREEN METALLIC)
-
35812138 FOAM (LEFT)FOAM (LEFT)
-
47512232 BOLTBOLT
-
55435110-400 COVER (FRONT/CAMO GREEN METALLIC)COVER (FRONT/CAMO GREEN METALLIC)
-
62632146-400 CAB ASSY (FRONT/SVC CAMO GREEN METALLIC)CAB ASSY (FRONT/SVC CAMO GREEN METALLIC)
-
77670057 NUT SPEEDNUT SPEED
-
87670135 NUT SPEEDNUT SPEED
-
97517312 SCREWSCREW
-
105431798-070 GUARD MUDFLAP (FRONT/BLACK/LEFT)GUARD MUDFLAP (FRONT/BLACK/LEFT)
-
105431799-070 GUARD MUDFLAP (FRONT/BLACK/RIGHT)GUARD MUDFLAP (FRONT/BLACK/RIGHT)
-
117541925 NUT NYLOKNUT NYLOK
-
127555792 WASHERWASHER
-
137556034 WASHERWASHER
-
147512085 SCREWSCREW
-
157555931 WASHERWASHER
-
167542122 NUT NYLOKNUT NYLOK
-
175412191 LINE BREATHERLINE BREATHER
-
187670109 CLIP ROUTINGCLIP ROUTING
-
197621509 RIVET PLASTI LOCKRIVET PLASTI LOCK
-
205246315-067 GUARD SPLASH (BLACK/LEFT)GUARD SPLASH (BLACK/LEFT)
-
205246316-067 GUARD SPLASH (BLACK/RIGHT)GUARD SPLASH (BLACK/RIGHT)
-
217517685 SCREWSCREW
