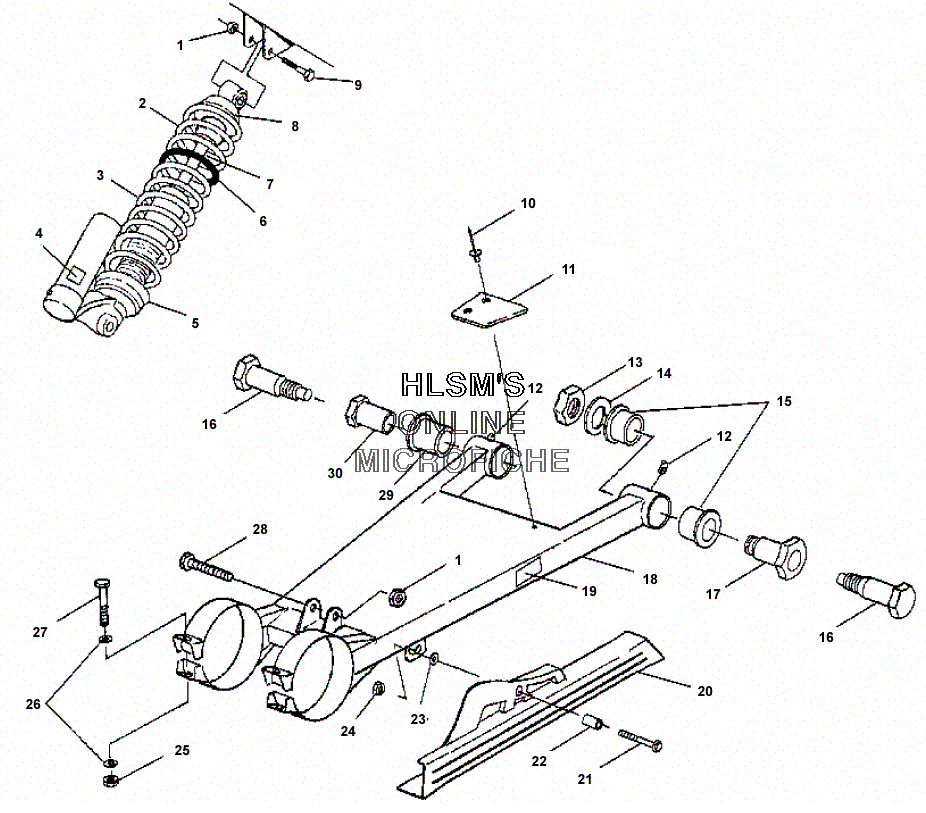

SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING для Polaris SCRAMBLER 500 4X4 (A03BG50AA) - 2003 года выпуска`
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
27041865-067 SPRING, COMP (180#/IN/ BLACK)SPRING, COMP (180#/IN/ BLACK)
-
27041865-216 SPRING, COMP (180#/IN/ SCR YELLOW)SPRING, COMP (180#/IN/ SCR YELLOW)
-
37041864-067 SPRING, COMP (280#/IN/ BLACK)SPRING, COMP (280#/IN/ BLACK)
-
37041864-216 SPRING, COMP (280#/IN/ SCR YELLOW)SPRING, COMP (280#/IN/ SCR YELLOW)
-
47075343 DECAL, WARNING (FOX ATV SHOCK)DECAL, WARNING (FOX ATV SHOCK)
-
51500278 RING, SPRING PRELOADRING, SPRING PRELOAD
-
65433550 SPACER, SPRINGSPACER, SPRING
-
77041867 SHOCK, MONO GASSHOCK, MONO GAS
-
85631045 RETAINER, SPRINGRETAINER, SPRING
-
97515415 SCREWSCREW
-
107661046 RIVET, POP (3/16, .376, .500)RIVET, POP (3/16, .376, .500)
-
115432727 GUIDE, CHAIN PADGUIDE, CHAIN PAD
-
127080510 FITTING, ZERK 90 DEGREEFITTING, ZERK 90 DEGREE
-
137547082 NUT, HEX JAMNUT, HEX JAM
-
147556035 WASHER, FLATWASHER, FLAT
-
155434546 BUSHING, SWING ARM HYBRID (RIGHT/ BLACK)BUSHING, SWING ARM HYBRID (RIGHT/ BLACK)
-
165131697 BOLT, SWING ARM PIVOTBOLT, SWING ARM PIVOT
-
175133167 BUSHING, SWING ARM PIVOT (RIGHT)BUSHING, SWING ARM PIVOT (RIGHT)
-
181541819-216 SWINGARM, ASSY. LNG TRVL (SCR YELLOW) (INCL. 12, 15, 29)SWINGARM, ASSY. LNG TRVL (SCR YELLOW) (INCL. 12, 15, 29)
-
197078572 DECAL, ''CHAIN FREEPLAY'' HYBRIDDECAL, ''CHAIN FREEPLAY'' HYBRID
-
205432854 GUARD, CHAIN AXLE (REAR)GUARD, CHAIN AXLE (REAR)
-
217515304 SCREW, FLANGEDSCREW, FLANGED
-
225332828 BUSHINGBUSHING
-
237558402 WASHER FLATWASHER FLAT
-
247542321 NUT FLANGENUT FLANGE
-
257547066 NUT, NYLOKNUT, NYLOK
-
267555883 WASHERWASHER
-
277512576 BOLTBOLT
-
287517761 SCREWSCREW
-
295434545 BUSHING, SWING ARM HYBRID (LEFT/ BLACK)BUSHING, SWING ARM HYBRID (LEFT/ BLACK)
-
305133166 BUSHING, SWING ARM PIVOT (LEFT)BUSHING, SWING ARM PIVOT (LEFT)
