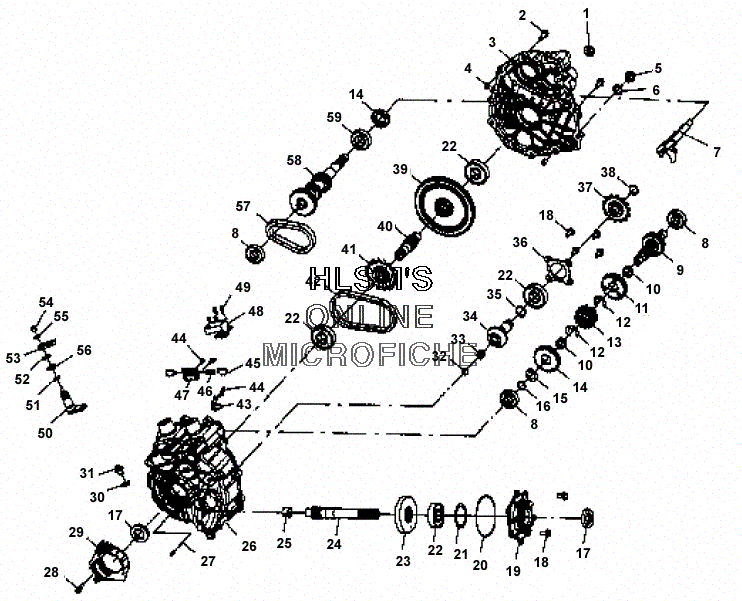

GEARCASE для Polaris SCRAMBLER 500 4X4 (A03BG50AA) - 2003 года выпуска
-
№АртикулНазвание
-
13233527 BUSHING, PIVOTBUSHING, PIVOT
-
23233252 SCREWSCREW
-
33233632 GEARCASE, MACH (LEFT)GEARCASE, MACH (LEFT)
-
43233529 PIPE, KNOCKPIPE, KNOCK
-
53233448 PLUGPLUG
-
63233035 WASHERWASHER
-
73233633 FORK, SHIFT HIGH/ REVFORK, SHIFT HIGH/ REV
-
83233018 BEARINGBEARING
-
93233728 SHAFT, REVERSE (31 TEETH)SHAFT, REVERSE (31 TEETH)
-
103233718 BEARING, NDL SPLIT CAGEBEARING, NDL SPLIT CAGE
-
113233719 SPROCKET (24 TEETH)SPROCKET (24 TEETH)
-
123233720 RING, RET RING EXTERNALRING, RET RING EXTERNAL
-
133233721 DOG, ENGAGEMENT HIGH/ REVDOG, ENGAGEMENT HIGH/ REV
-
143233722 GEAR (30 TEETH)GEAR (30 TEETH)
-
153233176 WASHERWASHER
-
163233177 RING, RETAININGRING, RETAINING
-
173233788 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
183233539 SCREWSCREW
-
193233556 COVER, SNORKELCOVER, SNORKEL
-
203233555 O-RINGO-RING
-
213233554 SHIM (OPT.)SHIM (OPT.)
-
223233020 BEARINGBEARING
-
233233898 GEAR (25 TEETH)GEAR (25 TEETH)
-
243233899 SHAFT, SNORKALSHAFT, SNORKAL
-
253233552 BUSHING, GARLOCKBUSHING, GARLOCK
-
263233896 GEARCASE (RIGHT)GEARCASE (RIGHT)
-
273233037 VENTVENT
-
283233026 SCREWSCREW
-
293233897 GUIDE, CHAINGUIDE, CHAIN
-
303233324 WASHERWASHER
-
313233711 PLUG, OIL FILLPLUG, OIL FILL
-
323233542 WASHER, THRUSTWASHER, THRUST
-
333233541 BUSHING, GARLOCKBUSHING, GARLOCK
-
343233540 SHAFT, PINION (13 TEETH)SHAFT, PINION (13 TEETH)
-
353233306 RING, RETAININGRING, RETAINING
-
363233263 COVER, CENTER DRIVE BEARINGCOVER, CENTER DRIVE BEARING
-
373233538 SPROCKET (14/ 22 TEETH)SPROCKET (14/ 22 TEETH)
-
383233537 RING, RETAININGRING, RETAINING
-
393233558 GEAR (98 TEETH)GEAR (98 TEETH)
-
403233544 SHAFT, OUTPUTSHAFT, OUTPUT
-
413233545 SPROCKET (16/ 26 TEETH)SPROCKET (16/ 26 TEETH)
-
423233546 CHAIN, ROLLERCHAIN, ROLLER
-
433233043 DEFLECTOR, OILDEFLECTOR, OIL
-
443233747 SCREW, TAPPING W/ LOCK WASHERSCREW, TAPPING W/ LOCK WASHER
-
453233308 PIN, INTERLOCKPIN, INTERLOCK
-
463233550 SPRING, SHIFT INTERLOCKSPRING, SHIFT INTERLOCK
-
473233309 BRACKET, INTERLOCKBRACKET, INTERLOCK
-
483233635 SWITCH, GEAR INDICATION 3 PISTONSWITCH, GEAR INDICATION 3 PISTON
-
493233749 SCREWSCREW
-
503233549 SHAFT, SHIFTSHAFT, SHIFT
-
513233548 O-RINGO-RING
-
523233045 RING, RETAININGRING, RETAINING
-
533233547 BELLCRANKBELLCRANK
-
543233055 NUT, LOCK HEX FLANGE NYLON 5/16NUT, LOCK HEX FLANGE NYLON 5/16
-
553233054 WASHERWASHER
-
563233040 WASHERWASHER
-
573233036 CHAIN, SILENT (34P)CHAIN, SILENT (34P)
-
583233536 SHAFT, INPUT HI/ REV. HCR. EXT.SHAFT, INPUT HI/ REV. HCR. EXT.
-
593233019 BEARINGBEARING
-
591341382 GEARCASE, ASSY. (INCL. ALL)GEARCASE, ASSY. (INCL. ALL)
