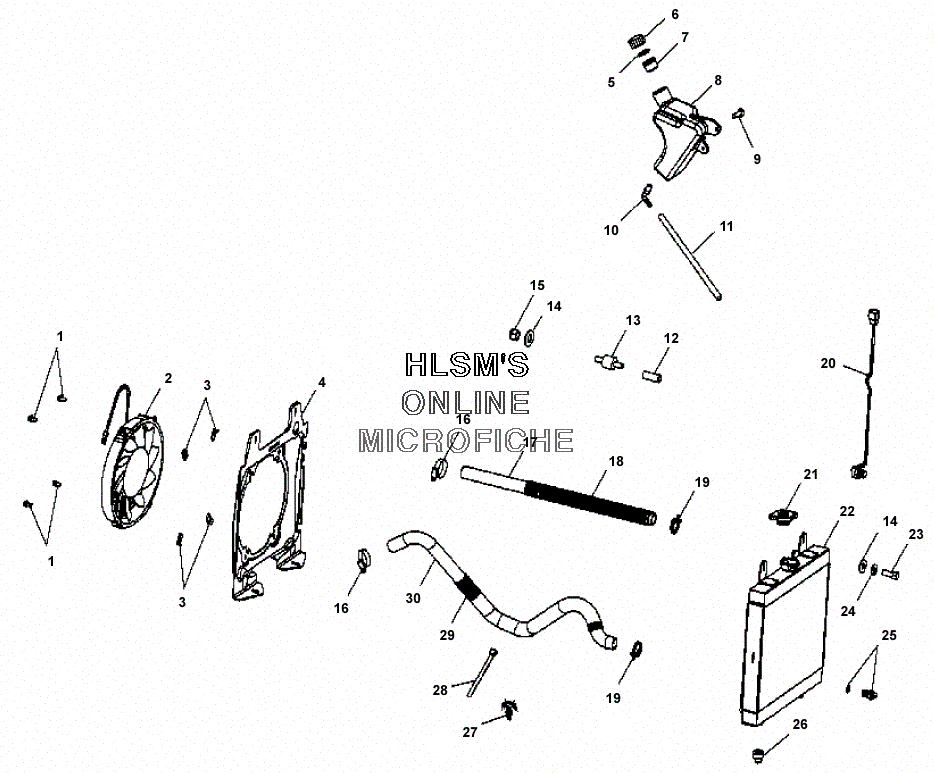

COOLING SYSTEM для Polaris SCRAMBLER 500 4X4 (A03BG50AA) - 2003 года выпуска
-
№АртикулНазвание
-
17517659 SCREWSCREW
-
22410123 FAN AND MOTOR, ASSY.FAN AND MOTOR, ASSY.
-
37670111 CLIP, UCLIP, U
-
45434043 SHROUD, FANSHROUD, FAN
-
55810279 GASKETGASKET
-
65430743 CAP, OVERFLOWCAP, OVERFLOW
-
75433774 CAP, PLUG 9 X FLEX TEMP. (GREEN)CAP, PLUG 9 X FLEX TEMP. (GREEN)
-
85433410 TANK, SURGETANK, SURGE
-
97512084 SCREWSCREW
-
107052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
118450003-600 TUBING (OPT)TUBING (OPT)
-
125020937 SPACER, RADIATOR MOUNTSPACER, RADIATOR MOUNT
-
133110032 MOUNT, RUBBERMOUNT, RUBBER
-
147558301 WASHER, FLATWASHER, FLAT
-
157542122 NUT, NYLOKNUT, NYLOK
-
167080614 CLAMP, HOSECLAMP, HOSE
-
175411985 HOSE, ENGINE (UPPER)HOSE, ENGINE (UPPER)
-
185521511 GUARD, HOSE (12 INCH)GUARD, HOSE (12 INCH)
-
197080826 CLAMP, ROTO CLIPCLAMP, ROTO CLIP
-
204010161 SENSOR, THERMAL/ HARNESSSENSOR, THERMAL/ HARNESS
-
211240093 CAP, PRESSURE 13 LBS.CAP, PRESSURE 13 LBS.
-
221240090 RADIATORRADIATOR
-
237512240 BOLTBOLT
-
247552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
257052296 VALVE, PLASTIC RAD/ COOLER DRAINVALVE, PLASTIC RAD/ COOLER DRAIN
-
265410584 BUSHING, MOUNT (LOWER/ RED)BUSHING, MOUNT (LOWER/ RED)
-
277080965 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
287080138 CABLE TIECABLE TIE
-
295521550 PLASTIC, HOSEGUARD (18 INCH)PLASTIC, HOSEGUARD (18 INCH)
-
305411989 HOSE, ENGINE (LOWER)HOSE, ENGINE (LOWER)
