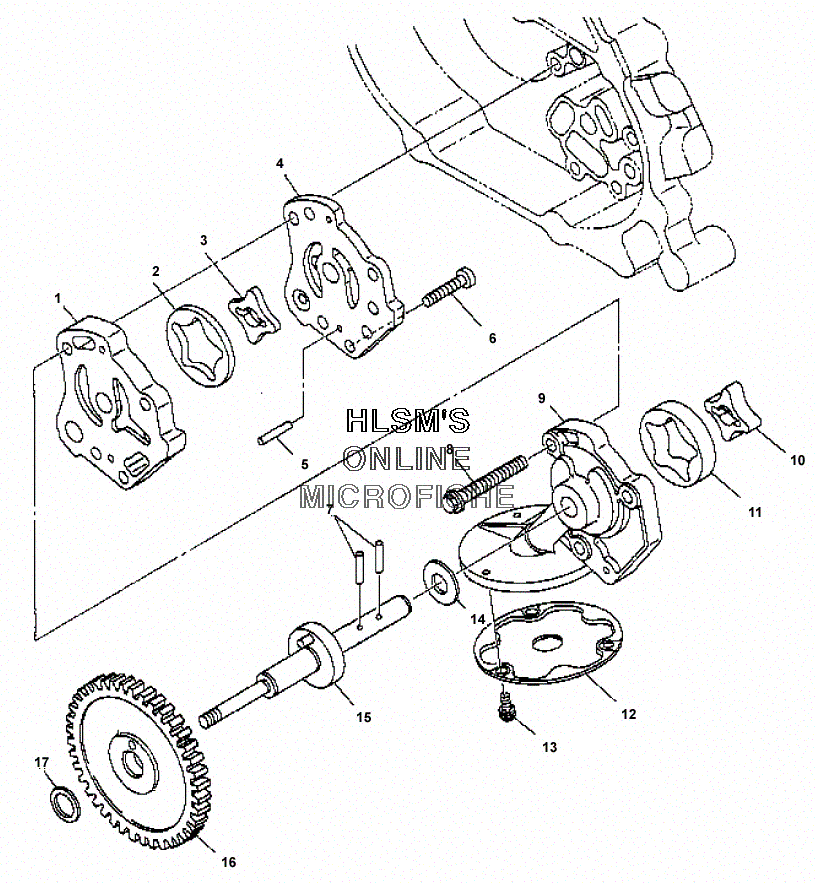

OIL PUMP для Polaris SPORTSMAN 400 (A02CH42AC) (MEDIUM (YELLOW) - 2002 года выпуска`
-
№АртикулНазвание
-
13084946 CASE #2,OILPUMPCASE #2,OILPUMP
-
23084949 ROTOR,OUTER,FEED (FEED)ROTOR,OUTER,FEED (FEED)
-
33084948 ROTOR,INNER,FEED (FEED)ROTOR,INNER,FEED (FEED)
-
43084944 PUMP, OIL (INCL. 1-7,9-15)PUMP, OIL (INCL. 1-7,9-15)
-
43084945 CASE #1,OILPUMPCASE #1,OILPUMP
-
53084955 PIN, DOWELPIN, DOWEL
-
63085535 SCREWSCREW
-
73084954 PIN, DOWELPIN, DOWEL
-
83084962 BOLT AND WASHER ASM.BOLT AND WASHER ASM.
-
93084947 CASE #3,OILPUMPCASE #3,OILPUMP
-
103084950 ROTOR,INNER,SCAV. (SCAV)ROTOR,INNER,SCAV. (SCAV)
-
113084951 ROTOR,OUTERROTOR,OUTER
-
123084956 STRAINER UNIT,OILSTRAINER UNIT,OIL
-
133084205 SCREW AND WASHERSCREW AND WASHER
-
143084953 WASHERWASHER
-
153084952 SHAFT, PUMPSHAFT, PUMP
-
163084958 GEAR 2, PUMPGEAR 2, PUMP
-
173084959 SPACER (0.8)SPACER (0.8)
-
173084960 SPACER (1.0)SPACER (1.0)
-
173084961 SPACER (1.2)SPACER (1.2)
