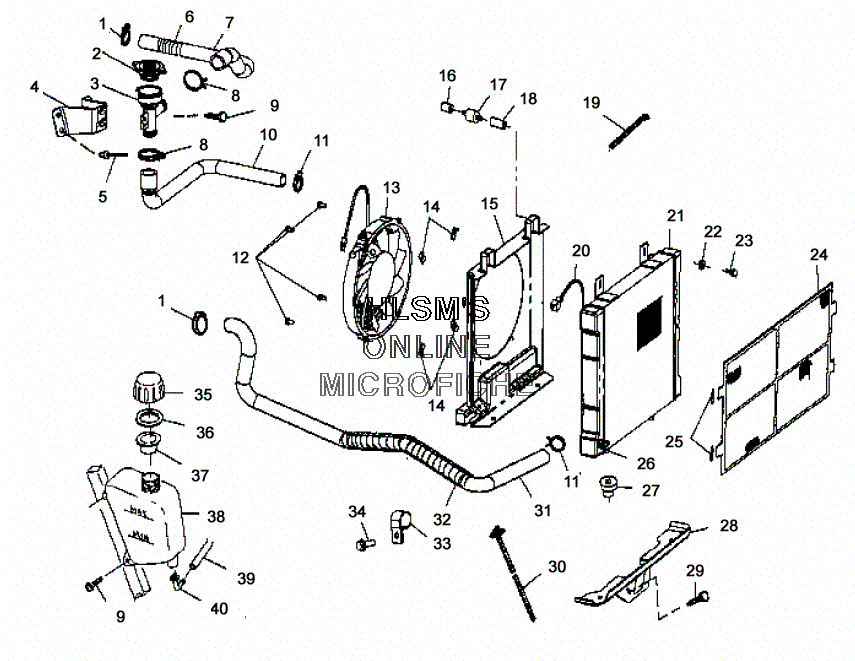

COOLING SYSTEM для Polaris SPORTSMAN 400 (A02CH42AC) (MEDIUM (YELLOW) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7080696 CLAMP,HOSE,1.25,WORM DRIVE
    CLAMP,HOSE,1.25,WORM DRIVE
  • 2
    1240044 CAP-PRESSURE,13 PSI
    CAP-PRESSURE,13 PSI
  • 3
    5433364 FILLER-REMOTE COOLANT
    FILLER-REMOTE COOLANT
  • 4
    5243505 BRKT-REMOTE COOLANT FILL PLTD
    BRKT-REMOTE COOLANT FILL PLTD
  • 5
    7661637 RIVET,INTERLOCK,Z
    RIVET,INTERLOCK,Z
  • 6
    5433948 FLEXGUARD-PLASTIC GUARD
    FLEXGUARD-PLASTIC GUARD
  • 7
    5411783 HOSE,UPPER ENGINE
    HOSE,UPPER ENGINE
  • 8
    7080827 CLAMP-ROTO SPRING 1''
    CLAMP-ROTO SPRING 1''
  • 9
    7512084 SCREW
    SCREW
  • 10
    5411632 HOSE,FILLER NECK
    HOSE,FILLER NECK
  • 11
    7080826 CLAMP-ROTO CLIP
    CLAMP-ROTO CLIP
  • 12
    7517659 SCREW
    SCREW
  • 13
    2410123 FAN AND MOTOR,ASM,SPAL
    FAN AND MOTOR,ASM,SPAL
  • 14
    7670111 CLIP,U,ZY
    CLIP,U,ZY
  • 15
    5433059 SHROUD-FAN,ATV
    SHROUD-FAN,ATV
  • 16
    7547069 NUTSERT,HEX
    NUTSERT,HEX
  • 17
    3110032 MOUNT, RUBBER
    MOUNT, RUBBER
  • 18
    5020572 SPACER, MOUNT
    SPACER, MOUNT
  • 19
    7080492 STRAP,BLK,WEATHER-RESIST.
    STRAP,BLK,WEATHER-RESIST.
  • 20
    4010161 SENSOR-THERMAL/HARNESS
    SENSOR-THERMAL/HARNESS
  • 21
    1240045 RADIATOR
    RADIATOR
  • 22
    7552801 LOCK WASHER
    LOCK WASHER
  • 23
    7512240 BOLT
    BOLT
  • 24
    5433317 COVER-RADIATOR,W/MESH
    COVER-RADIATOR,W/MESH
  • 25
    5410607 O RING
    O RING
  • 26
    7052296 VALVE-PLASTIC RAD/COOLER DRAIN
    VALVE-PLASTIC RAD/COOLER DRAIN
  • 27
    5410584 BUSHING,MT,LOW RED
    BUSHING,MT,LOW RED
  • 28
    5243503-067 BRKT,RADIATOR,LOWER,BLK
    BRKT,RADIATOR,LOWER,BLK
  • 29
    7512232 BOLT
    BOLT
  • 30
    7080890 STRAP-PANDUIT,PANEL TIE
    STRAP-PANDUIT,PANEL TIE
  • 31
    5411782 HOSE,LOWER ENGINE
    HOSE,LOWER ENGINE
  • 32
    5521550 PLASTIC,HOSEGUARD 18''
    PLASTIC,HOSEGUARD 18''
  • 33
    7080807 CLAMP-HOSE
    CLAMP-HOSE
  • 34
    7517386 SCREW,
    SCREW,
  • 35
    5430743 CAP, OVERFLOW
    CAP, OVERFLOW
  • 36
    5810279 GASKET
    GASKET
  • 37
    5433774 CAP,PLUG9X(GRN),FLEX TEMP
    CAP,PLUG9X(GRN),FLEX TEMP
  • 38
    5431673 TANK, SURGE
    TANK, SURGE
  • 39
    8450003-1525 FUEL LINE,1/4 ID(1525 CM.)
    FUEL LINE,1/4 ID(1525 CM.)
  • 40
    7052065 FITTING,90 DEGREE
    FITTING,90 DEGREE
