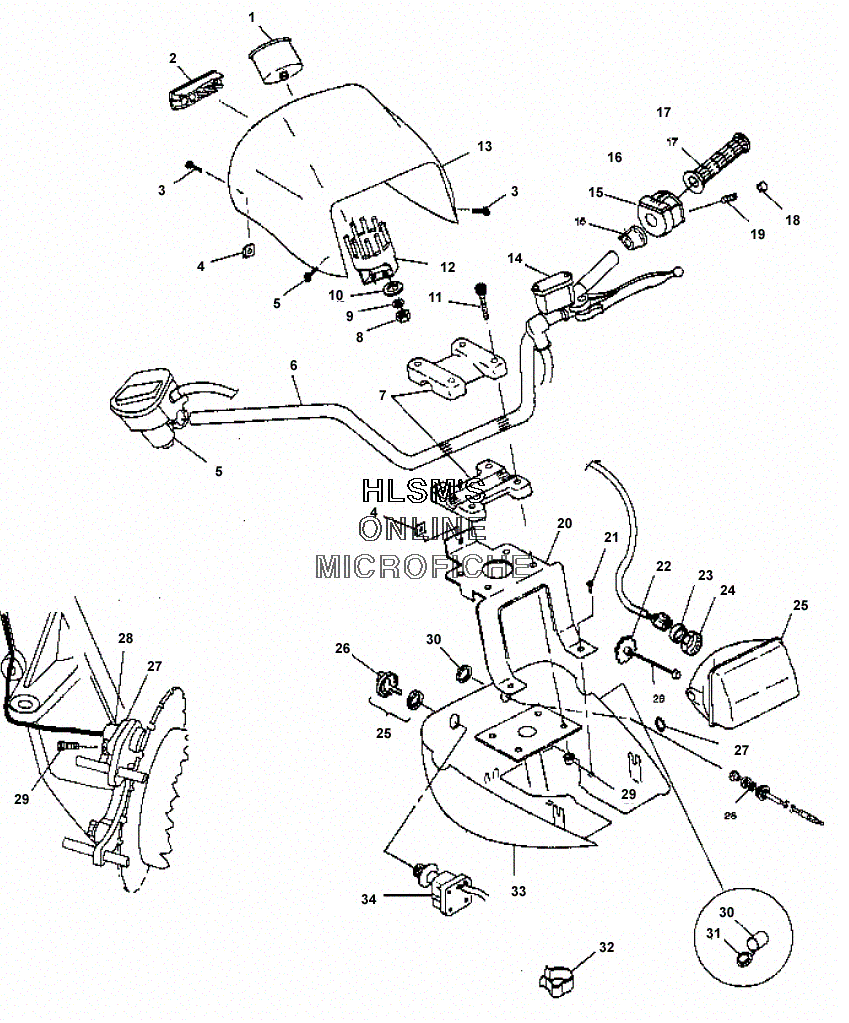

HANDLEBAR W/ HEADLIGHT для Polaris SPORTSMAN 400 (A02CH42AC) (MEDIUM (YELLOW) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3280363 SPEEDOMETER,3.38'',6-PULSE
    SPEEDOMETER,3.38'',6-PULSE
  • 2
    4010459 PANEL-INDICATOR,SVC,STD PVT
    PANEL-INDICATOR,SVC,STD PVT
  • 2
    4010416 BULB-INDICATOR,HOBBS
    BULB-INDICATOR,HOBBS
  • 3
    7511881 SCREW
    SCREW
  • 4
    7670127 CLIP-SCREW,#8/10,.03-.10,PANEL
    CLIP-SCREW,#8/10,.03-.10,PANEL
  • 6
    5242987-067 TUBE-HANDLEBAR,GEN 4,POD,BLK
    TUBE-HANDLEBAR,GEN 4,POD,BLK
  • 7
    2200774 KIT-HANDLE BAR BLOCK (INCL. BLOCKS AND 7,11,29)
    KIT-HANDLE BAR BLOCK (INCL. BLOCKS AND 7,11,29)
  • 8
    7541933 NUT, BRASS
    NUT, BRASS
  • 9
    7555868 WASHER, LOCK,(S.S.)
    WASHER, LOCK,(S.S.)
  • 10
    7558212 WASHER,13/64X1/2X18GA,FL-Y
    WASHER,13/64X1/2X18GA,FL-Y
  • 11
    7515189 SCREW
    SCREW
  • 12
    3280291 CLAMP,BACK,ELEC.SPEEDO,3.38''
    CLAMP,BACK,ELEC.SPEEDO,3.38''
  • 13
    5433763-053 POD-HEADLIGHT,UPPER,MED YELLOW
    POD-HEADLIGHT,UPPER,MED YELLOW
  • 15
    5433903 SPACER-SWITCH,LH,99
    SPACER-SWITCH,LH,99
  • 16
    4010422 SWITCH-HANDLEBAR,HI/LO/MODE
    SWITCH-HANDLEBAR,HI/LO/MODE
  • 17
    5433834-070 GRIP-HNDLBAR,7/8 ID,ATV,BLACK
    GRIP-HNDLBAR,7/8 ID,ATV,BLACK
  • 18
    5432952 PLUG,HOLE
    PLUG,HOLE
  • 19
    7517625 SCREW,SET
    SCREW,SET
  • 20
    5244969-067 BRKT-POD MOUNTING,BLK
    BRKT-POD MOUNTING,BLK
  • 21
    7517317 SCREW
    SCREW
  • 22
    4032079 KNOB,ADJUSTING
    KNOB,ADJUSTING
  • 23
    5411120 BOOT,HEADLIGHT
    BOOT,HEADLIGHT
  • 24
    4032077 COLLAR,LOCK
    COLLAR,LOCK
  • 25
    4032075 LENS AND REFLECTOR ASM.
    LENS AND REFLECTOR ASM.
  • 25
    2870448 BULB,QUARTZ.H/L,INDY
    BULB,QUARTZ.H/L,INDY
  • 25
    2410268 HEADLAMP,ASM.4X4,50 WATT
    HEADLAMP,ASM.4X4,50 WATT
  • 26
    4032078 ROD,ADJUSTING
    ROD,ADJUSTING
  • 27
    5410163 O RING
    O RING
  • 28
    7081008 CABLE-CHOKE,FRICTION,40''
    CABLE-CHOKE,FRICTION,40''
  • 29
    7542122 NUT-LOCK
    NUT-LOCK
  • 30
    4010283 RECEPTACLE-POD MNT,12 VOLT
    RECEPTACLE-POD MNT,12 VOLT
  • 31
    5411744 CAP-RUBBER,12-VOLT RECEPTACLE
    CAP-RUBBER,12-VOLT RECEPTACLE
  • 32
    7080631 CLIP,CABLE RETAIN,
    CLIP,CABLE RETAIN,
  • 33
    5433762-070 POD-HEADLIGHT,LOWER,SNAP,BLK
    POD-HEADLIGHT,LOWER,SNAP,BLK
  • 34
    4010390 SWITCH-IGNITION,KEYSTART,ATV (INCL. KEY)
    SWITCH-IGNITION,KEYSTART,ATV (INCL. KEY)
  • 34
    4010278 KEY BLANK (20/21/67/68) SERIES (SEE NOTE)
    KEY BLANK (20/21/67/68) SERIES (SEE NOTE)
  • 34
    4010321 KEY BLANK (22/23/27/28) SERIES (SEE NOTE)
    KEY BLANK (22/23/27/28) SERIES (SEE NOTE)
  • 35
    5433534 KEY COVER-KEYSWITCH
    KEY COVER-KEYSWITCH
  • 36
    7080922 NUT,CHOKE,M24X1.5 THD,M29 HEX
    NUT,CHOKE,M24X1.5 THD,M29 HEX
  • 37
    4010298 SENSOR,HALLEFFECT
    SENSOR,HALLEFFECT
  • 38
    5132382 CAP-HALL SENSOR
    CAP-HALL SENSOR
  • 39
    7517658 SCREW
    SCREW
