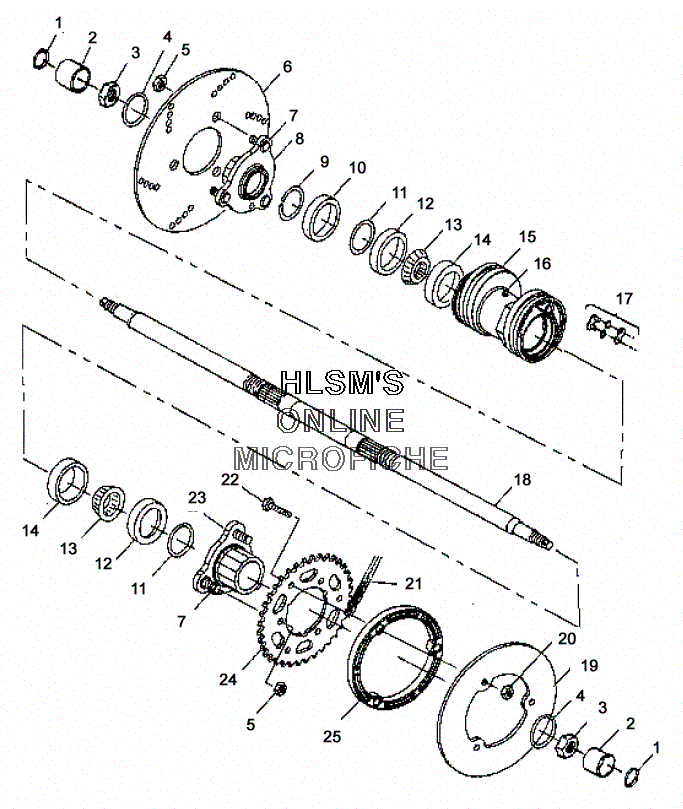

HOUSING - REAR W/ AXLE для Polaris SCRAMBLER 500 4X4 (A02BG50AA) (BLAZING RED) - 2002 года выпуска`
-
№АртикулНазвание
-
17710472 RING,RETAININGRING,RETAINING
-
25510313 EXTRUSION,RETAINER,NUTEXTRUSION,RETAINER,NUT
-
37547031 NUT,JAM (IF BUILT BEFORE 6/3/01)NUT,JAM (IF BUILT BEFORE 6/3/01)
-
37547196 NUT-1.297-18 THD-Y (IF BUILT AFTER 6/3/01)NUT-1.297-18 THD-Y (IF BUILT AFTER 6/3/01)
-
45411555 SEAL,FOAMSEAL,FOAM
-
57542439 NUT,NYLOKNUT,NYLOK
-
65243678 DISC,BRK,7.00 OD,.188 THKDISC,BRK,7.00 OD,.188 THK
-
77515513 STUD *STUD *
-
81520259 HUB ASM,BRK.DISC,LOCKING (INCL. 7)HUB ASM,BRK.DISC,LOCKING (INCL. 7)
-
97710405 RING, SNAPRING, SNAP
-
105010462 SPACER,AXLESPACER,AXLE
-
115410889 O RINGO RING
-
123610070 SEAL,LIPSEAL,LIP
-
133554518 BEARING,CONE,TAPEREDBEARING,CONE,TAPERED
-
143554517 BEARING,CUP,TAPEREDBEARING,CUP,TAPERED
-
155132098 HOUSING-AXLE,REAR(MACH)HOUSING-AXLE,REAR(MACH)
-
167080306 FITTING,LUBE.W/BALL CK.FITTING,LUBE.W/BALL CK.
-
173225027 LINK,CONNECT,520 ORDLINK,CONNECT,520 ORD
-
185020944 KIT-AXLE ASM,CDS (BUILT BEFORE 6/3/01)KIT-AXLE ASM,CDS (BUILT BEFORE 6/3/01)
-
185133181 AXLE-REAR,CDS (BUILT AFTER 6/3/01)AXLE-REAR,CDS (BUILT AFTER 6/3/01)
-
195211585-067 GUARD,38T SPKT (BLACK/ALUM.)GUARD,38T SPKT (BLACK/ALUM.)
-
207547108 NUTNUT
-
213221111-076 CHAIN,76P,520 ORD,O-RINGCHAIN,76P,520 ORD,O-RING
-
227512404 BOLTBOLT
-
231520258 HUB ASM,SPKT,LOCKING (INCL. 7)HUB ASM,SPKT,LOCKING (INCL. 7)
-
243222109 SPKT,36T,R.AXLE,(ATV)SPKT,36T,R.AXLE,(ATV)
-
255630586 SPACER-SPROCKET GUARDSPACER-SPROCKET GUARD
