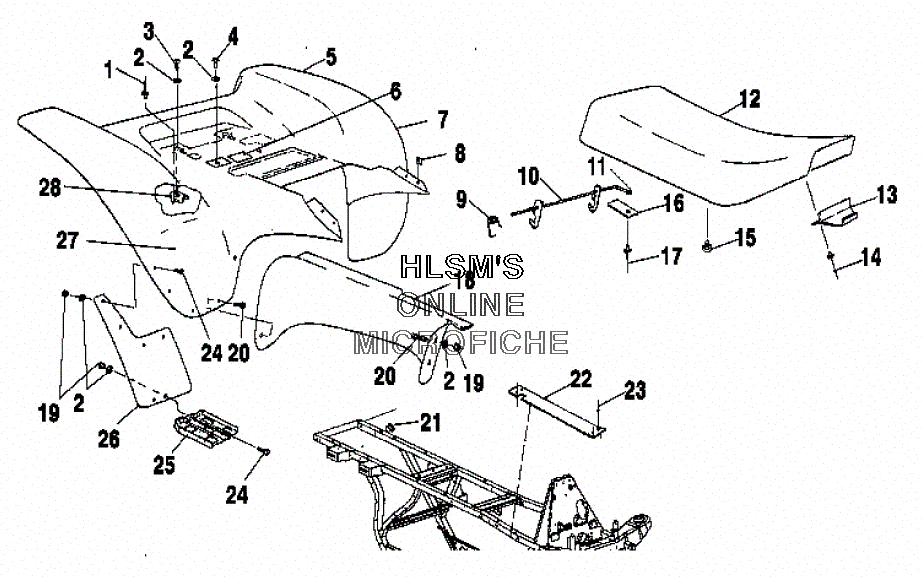

FENDER - REAR W/ SEAT для Polaris SCRAMBLER 500 4X4 (A02BG50AA) (BLAZING RED) - 2002 года выпуска
-
№АртикулНазвание
-
17621472 RIVETRIVET
-
27555859 WASHER, FLATWASHER, FLAT
-
37512232 BOLTBOLT
-
47512242 SCREWSCREW
-
55810991 FOIL, REAR CAB, SMALLFOIL, REAR CAB, SMALL
-
67079902 DECAL-4 STRK,CARB/FILTER INFODECAL-4 STRK,CARB/FILTER INFO
-
75434014-288 CAB-REAR,GEN 3,BLAZING REDCAB-REAR,GEN 3,BLAZING RED
-
87670057 NUT, SPEEDNUT, SPEED
-
97041607 SPRING,LATCH,LIGHTSPRING,LATCH,LIGHT
-
101040412 LATCH, SEATBACKLATCH, SEATBACK
-
115411392 CAP,SEATLATCH,GEN 3CAP,SEATLATCH,GEN 3
-
122682453-070 SEAT,BLK,W/WHITE POLARISSEAT,BLK,W/WHITE POLARIS
-
122681769-070 COVER,SEAT (BLACK)COVER,SEAT (BLACK)
-
135431986 TONGUE,SEATTONGUE,SEAT
-
147621479 RIVETRIVET
-
155412067 BUMPER-RUBBERBUMPER-RUBBER
-
165211033 BRACKET,LEVER RETAINERBRACKET,LEVER RETAINER
-
177621403 BLIND RIVETBLIND RIVET
-
182632274 SHIELD,MUFFLER/FOIL ASM,GEN3SHIELD,MUFFLER/FOIL ASM,GEN3
-
185811113 FOIL,FOAMFOIL,FOAM
-
197542122 NUT, LOCKNUT, LOCK
-
207517264 SCREWSCREW
-
215432831 PLUG,ENDCAP,RIBBEDPLUG,ENDCAP,RIBBED
-
225241403-067 GUARD-CLUTCH (BLACK)GUARD-CLUTCH (BLACK)
-
237661638 RIVET,INTERLOCK,BRIVET,INTERLOCK,B
-
247512282 BOLT (BLACK)BOLT (BLACK)
-
265812134 MUDFLAP-REAR,HYBRID,LHMUDFLAP-REAR,HYBRID,LH
-
265850148 MUDFLAP,RH,R.HYBRIDMUDFLAP,RH,R.HYBRID
-
275810957 FOIL, REAR CABFOIL, REAR CAB
-
285220880 BRKT,R.HOLDDOWNBRKT,R.HOLDDOWN
