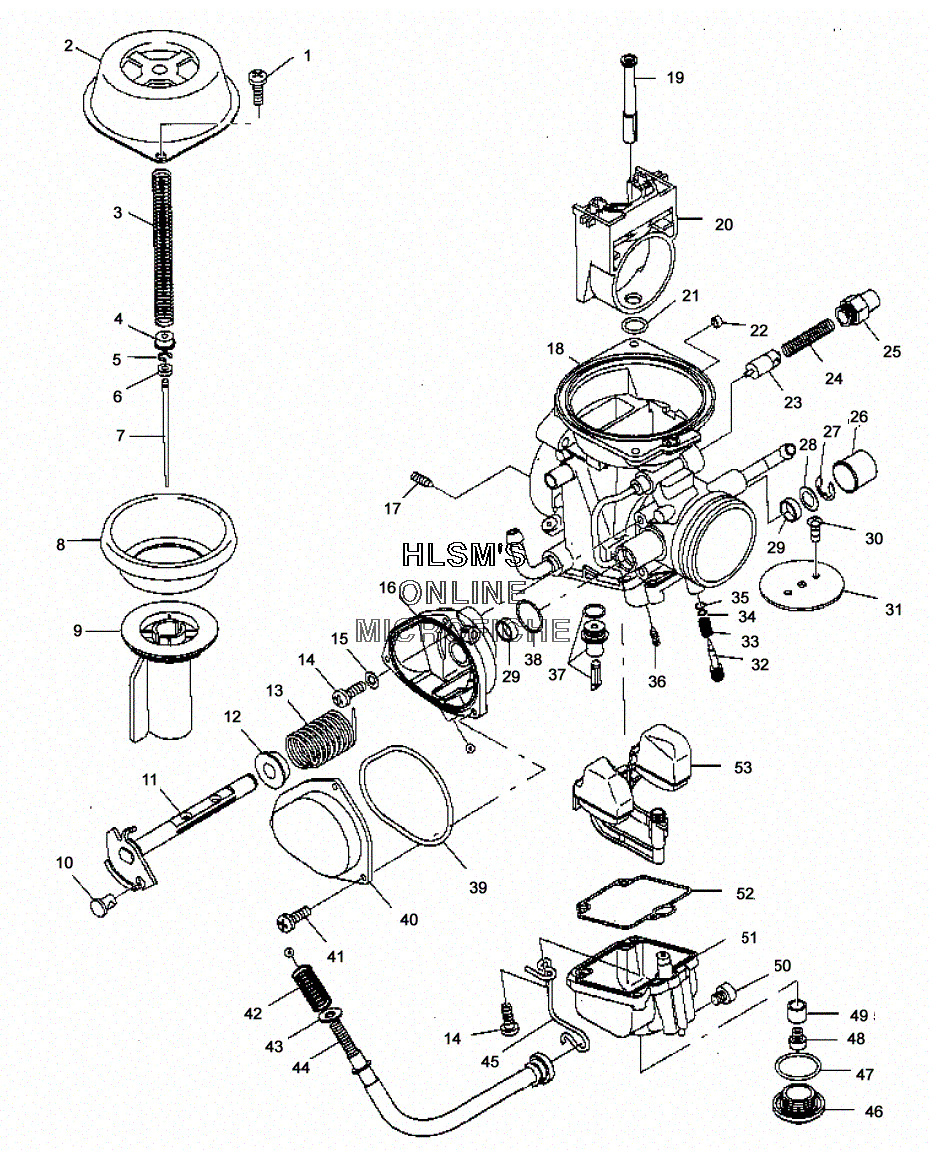

CARBURETOR для Polaris SCRAMBLER 500 4X4 (A02BG50AA) (BLAZING RED) - 2002 года выпуска
-
№АртикулНазвание
-
13130821 SCREWSCREW
-
23130914 COVER,DIAPHRAGMCOVER,DIAPHRAGM
-
33130911 SPRINGSPRING
-
43130913 RINGRING
-
53130908 RING,''E''RING,''E''
-
63130915 RINGRING
-
73131358 NEEDLE-JETNEEDLE-JET
-
83130910 DIAPHRAGMDIAPHRAGM
-
93130912 VALVE,PISTONVALVE,PISTON
-
103130543 GUIDE,CABLEGUIDE,CABLE
-
113130931 THROTTLE SHAFT ASSM.THROTTLE SHAFT ASSM.
-
123130932 RINGRING
-
133130927 SPRINGSPRING
-
143130933 SCREWSCREW
-
153130926 WASHERWASHER
-
163130925 CASECASE
-
173130619 JET, (PAJ1)JET, (PAJ1)
-
183131307 ASM.,CARBURETOR (INCL. 1-53)ASM.,CARBURETOR (INCL. 1-53)
-
193131309 NEEDLE, JETNEEDLE, JET
-
203131290 BLOCK, JETBLOCK, JET
-
213130916 RING,''O''RING,''O''
-
223131208 HOSEHOSE
-
233130593 PLUNGER ASM.PLUNGER ASM.
-
243130538 SPRINGSPRING
-
253130199 HOLDER,GUIDEHOLDER,GUIDE
-
263130519 CAPCAP
-
273130518 E-RINGE-RING
-
283130517 WASHERWASHER
-
293130515 SEALSEAL
-
303130906 SCREWSCREW
-
313130907 VALVE,THROTTLEVALVE,THROTTLE
-
323130934 ADJUSTERADJUSTER
-
333130525 SPRINGSPRING
-
343130523 WASHERWASHER
-
353130522 O-RINGO-RING
-
363131306 SCREW (#40)SCREW (#40)
-
373131359 VALVE-NEEDLE (1.5)VALVE-NEEDLE (1.5)
-
383130928 O-RINGO-RING
-
393131294 O-RINGO-RING
-
403130930 COVERCOVER
-
413130924 SCREWSCREW
-
423130010 SPRING,THROTTLE ADJ.SPRING,THROTTLE ADJ.
-
433131296 WASHERWASHER
-
443131295 ASM-CABLE ADJUSTERASM-CABLE ADJUSTER
-
453131242 CLIPCLIP
-
463131291 BOLT,BANJOBOLT,BANJO
-
473130239 O-RINGO-RING
-
483131308 MAIN JETMAIN JET
-
493130919 RINGRING
-
503130935 SCREWSCREW
-
513130923 FLOAT BODY ASSM.FLOAT BODY ASSM.
-
523130917 SEALSEAL
-
533131293 FLOAT ASM.FLOAT ASM.
