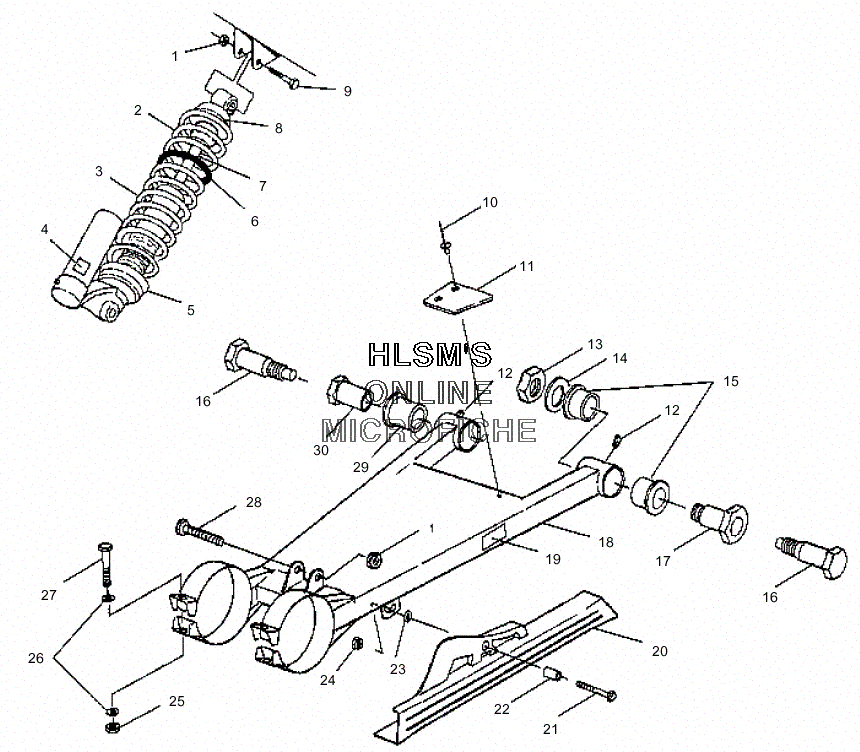

SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING для Polaris SCRAMBLER 500 4X4 (A01BG50AA) (BLAZING RED) - 2001 года выпуска`
-
№АртикулНазвание
-
17542439 NUT, LOCKNUT, LOCK
-
27041865-067 SPRING, COMP (180#/IN) (BLACK)SPRING, COMP (180#/IN) (BLACK)
-
37041864-067 SPRING, COMP (280#/IN) (BLACK)SPRING, COMP (280#/IN) (BLACK)
-
47075343 DECAL, WARN (SHOCK)DECAL, WARN (SHOCK)
-
51500278 RING, SPRING PRELOAD 234-00-063RING, SPRING PRELOAD 234-00-063
-
65433550 SPACER, SPRINGSPACER, SPRING
-
77041867 SHOCK, MONO GAS CH (19.08LG)SHOCK, MONO GAS CH (19.08LG)
-
85631045 RETAINER, SPRINGRETAINER, SPRING
-
97515415 BOLTBOLT
-
107661046 RIVET, POP (3/16) (.376-.500)RIVET, POP (3/16) (.376-.500)
-
115432727 GUIDE, CHAIN PADGUIDE, CHAIN PAD
-
127080510 FITTING, ZERKFITTING, ZERK
-
137547082 NUT, HEX JAMNUT, HEX JAM
-
147556035 WASHER, FLATWASHER, FLAT
-
155433412 BUSHING, SWNGARM (RIGHT)BUSHING, SWNGARM (RIGHT)
-
165131697 BOLT, SWINGARM PIVOTBOLT, SWINGARM PIVOT
-
175133167 BUSHING, SWING ARM PIVOT (RIGHT)BUSHING, SWING ARM PIVOT (RIGHT)
-
181541395 ASSY, SWING ARM LNG TRVL (16.22'') (INCL. 12,15,29)ASSY, SWING ARM LNG TRVL (16.22'') (INCL. 12,15,29)
-
197078572 DECAL, ''CHAIN FREEPLAY''DECAL, ''CHAIN FREEPLAY''
-
205432854 GUARD, CHAIN AXLE (REAR)GUARD, CHAIN AXLE (REAR)
-
217515304 SCREW, FLANGEDSCREW, FLANGED
-
225332828 BUSHINGBUSHING
-
237558402 WASHER, STEELWASHER, STEEL
-
247542321 NUT, LOCKNUT, LOCK
-
257547066 NUT, NYLOK YNUT, NYLOK Y
-
267555883 WASHERWASHER
-
277512576 BOLTBOLT
-
287517761 SCREW, GR8-YSCREW, GR8-Y
-
295433411 BUSHING, SWNGARM (LEFT)BUSHING, SWNGARM (LEFT)
-
305133166 BUSHING, SWING ARM PIVOT (LEFT)BUSHING, SWING ARM PIVOT (LEFT)
