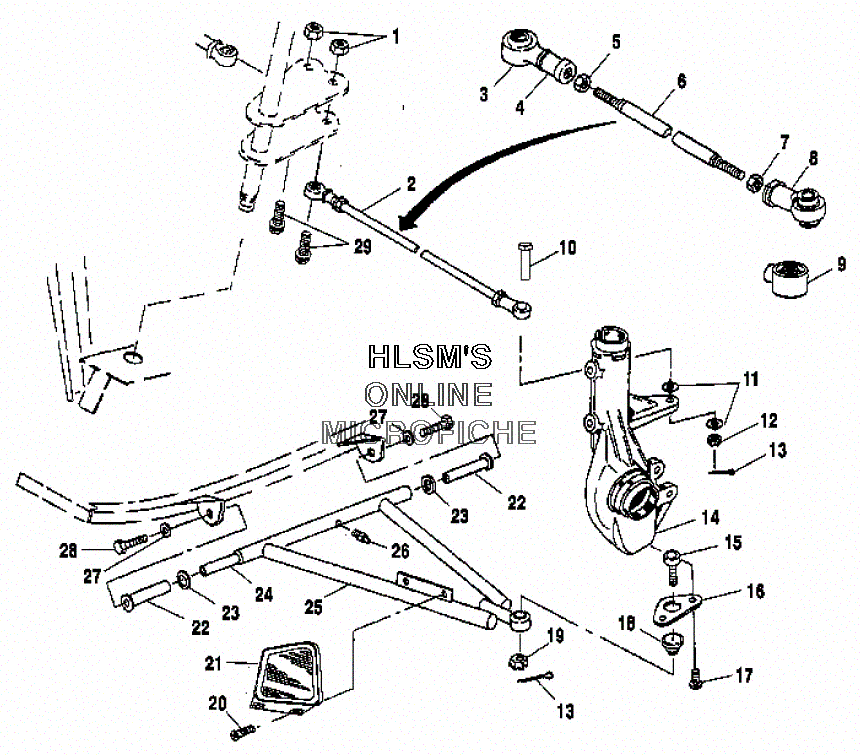

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris SCRAMBLER 500 4X4 (A01BG50AA) (BLAZING RED) - 2001 года выпуска
-
№АртикулНазвание
-
17542403 NUT, LOCKNUT, LOCK
-
21820805 TIE, ROD ASSY. (INCL. 3-8)TIE, ROD ASSY. (INCL. 3-8)
-
35411291 SEAL, BOOT ROD END (1/2 IN)SEAL, BOOT ROD END (1/2 IN)
-
47061034 ROD END (RIGHT)ROD END (RIGHT)
-
57542711 NUT, JAMNUT, JAM
-
65020926 ROD, TIEROD, TIE
-
77547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
87061054 ROD, END 42 DEG (10MM, 1/2-20, LEFT)ROD, END 42 DEG (10MM, 1/2-20, LEFT)
-
95411920 BOOT, SEAL ROD END (10MM)BOOT, SEAL ROD END (10MM)
-
107517674 BOLT, HEX WASH HEADBOLT, HEX WASH HEAD
-
117556099 WASHERWASHER
-
127546904 NUT, CASTLENUT, CASTLE
-
137661203 PIN, COTTERPIN, COTTER
-
157080927 BALL, JOINT 52 DEGBALL, JOINT 52 DEG
-
165211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
177512284 BOLT, SOCKETBOLT, SOCKET
-
185410548 BOOT, RUBBERBOOT, RUBBER
-
197542438 NUT, CASTLENUT, CASTLE
-
207512084 SCREWSCREW
-
215431150-070 SHIELD, CV JOINT (LEFT) (BLACK)SHIELD, CV JOINT (LEFT) (BLACK)
-
215431149-070 SHIELD, CV JOINT (RIGHT) (BLACK)SHIELD, CV JOINT (RIGHT) (BLACK)
-
225433066 BUSHING, A ARM LONGBUSHING, A ARM LONG
-
235020677 BUSHING, A-ARM SPACERBUSHING, A-ARM SPACER
-
245020681 SHAFT, A-ARMSHAFT, A-ARM
-
252201611 A-FRAME, KIT (LEFT) (1541450)A-FRAME, KIT (LEFT) (1541450)
-
252201612 A-FRAME, KIT (RIGHT) (1541451)A-FRAME, KIT (RIGHT) (1541451)
-
267080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
277552603 WASHERWASHER
-
287512492 SCREWSCREW
-
297515415 BOLTBOLT
