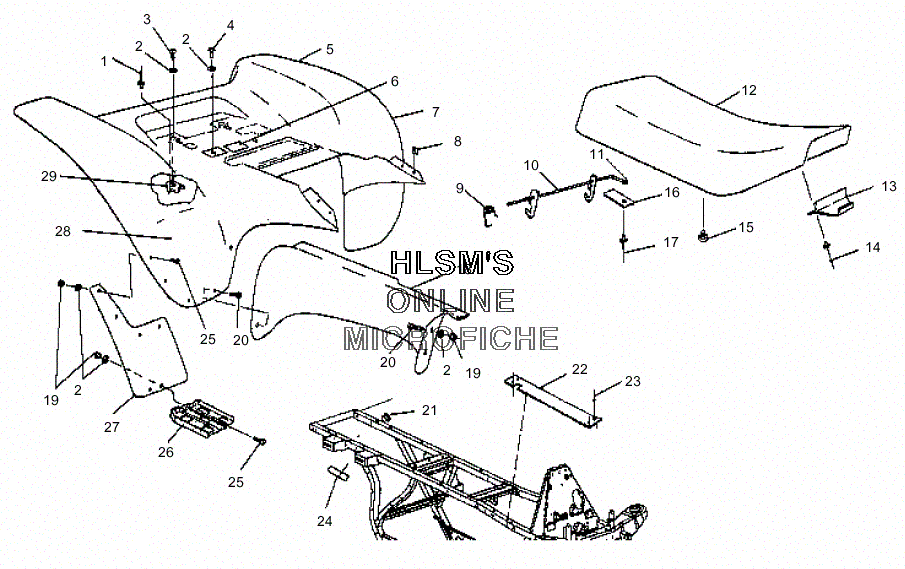

FENDER - REAR W/ SEAT для Polaris SCRAMBLER 500 4X4 (A01BG50AA) (BLAZING RED) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7621472 RIVET
    RIVET
  • 2
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 3
    7512232 BOLT
    BOLT
  • 4
    7512242 SCREW
    SCREW
  • 5
    5810991 FOIL, REAR CAB, SMALL
    FOIL, REAR CAB, SMALL
  • 6
    7079902 DECAL, 4 STRK, CARBURETOR/FILTER INFO
    DECAL, 4 STRK, CARBURETOR/FILTER INFO
  • 7
    5434014-288 FENDER (REAR/GEN 3/BLAZING RED)
    FENDER (REAR/GEN 3/BLAZING RED)
  • 8
    7670057 NUT, SPEED
    NUT, SPEED
  • 9
    7041607 SPRING, LATCH LIGHT
    SPRING, LATCH LIGHT
  • 10
    1040412 LATCH, SEATBACK
    LATCH, SEATBACK
  • 11
    5411392 CAP, SEATLATCH (GEN 3)
    CAP, SEATLATCH (GEN 3)
  • 12
    2682453-070 SEAT (BLACK, W/WHITE POLARIS)
    SEAT (BLACK, W/WHITE POLARIS)
  • 12
    2681769-070 COVER, SEAT (BLACK)
    COVER, SEAT (BLACK)
  • 13
    5431986 TONGUE, SEAT
    TONGUE, SEAT
  • 14
    7621479 RIVET
    RIVET
  • 15
    5412067 BUMPER, RUBBER
    BUMPER, RUBBER
  • 16
    5211033 BRACKET, LEVER RETAINER
    BRACKET, LEVER RETAINER
  • 17
    7621403 BLIND RIVET
    BLIND RIVET
  • 18
    2632274 SHIELD, MUFFLER/FOIL ASSY. (GEN 3)
    SHIELD, MUFFLER/FOIL ASSY. (GEN 3)
  • 18
    5811113 FOIL, FOAM
    FOIL, FOAM
  • 19
    7542122 NUT, LOCK
    NUT, LOCK
  • 20
    7517264 SCREW
    SCREW
  • 21
    5432831 PLUG, ENDCAP RIBBED
    PLUG, ENDCAP RIBBED
  • 22
    5241403-067 GUARD, CLUTCH (BLACK)
    GUARD, CLUTCH (BLACK)
  • 23
    7661638 RIVET, INTERLOCK B
    RIVET, INTERLOCK B
  • 24
    2670133 REFLECTOR ASSY. (RED)
    REFLECTOR ASSY. (RED)
  • 25
    7512282 BOLT (BLACK)
    BOLT (BLACK)
  • 27
    5812134 MUDFLAP (LEFT/REAR)
    MUDFLAP (LEFT/REAR)
  • 27
    5850148 MUDFLAP (RIGHT/REAR)
    MUDFLAP (RIGHT/REAR)
  • 28
    5810957 FOIL, REAR FENDER
    FOIL, REAR FENDER
  • 29A
    5220880 BRACKET, HOLDDOWN (REAR) (SEE NOTE)
    BRACKET, HOLDDOWN (REAR) (SEE NOTE)
  • 29N
    5245248 BRACKET (SEE NOTE)
    BRACKET (SEE NOTE)
