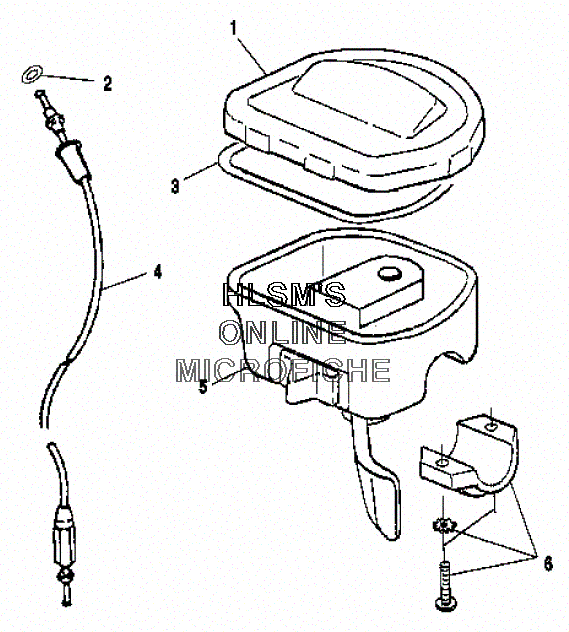

HANDLEBAR - THROTTLE ASSY. W/ CABLE для Polaris SCRAMBLER 500 4X4 (A01BG50AA) (BLAZING RED) - 2001 года выпуска
-
№АртикулНазвание
-
15434113 COVER, THROTTLE CONTROLCOVER, THROTTLE CONTROL
-
25410193 O-RINGO-RING
-
35411439 O-RINGO-RING
-
47080709 CABLE, THROTTLE SNAP-IN 4-CYCLE (BUILT BEFORE 10/30/00)CABLE, THROTTLE SNAP-IN 4-CYCLE (BUILT BEFORE 10/30/00)
-
47080967 CABLE, THROTTLE 1/4 TURN 4 STK (BUILT AFTER 10/30/00)CABLE, THROTTLE 1/4 TURN 4 STK (BUILT AFTER 10/30/00)
-
52010205 THROTTLE CONTROL, ASSY. (AWD) (INCL. 6)THROTTLE CONTROL, ASSY. (AWD) (INCL. 6)
-
62010191 ASSY., THROTTLE CLAMPASSY., THROTTLE CLAMP
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- BUMPER AND SHIELDS - FRONT (BUILT AFTER 8/01/00)
- BUMPER AND SHIELDS - FRONT (BUILT BEFORE 8/01/00)
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROL PANEL
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CV JOINT - NEAPCO
- CYLINDER
- DECALS
- DIFFERENTIAL - FRONT
- DRIVESHAFT - INTERMEDIATE
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FOX SHOCK - GAS - RESERVOIR
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE (BUILT AFTER 4/29/01)
- GEARCASE (BUILT BEFORE 4/29/01)
- GEARCASE MOUNTING
- HANDLEBAR - HEADLIGHT
- • HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- OIL FILTER
- OIL PUMP
- OIL TANK
- SHOCK VALVING
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
