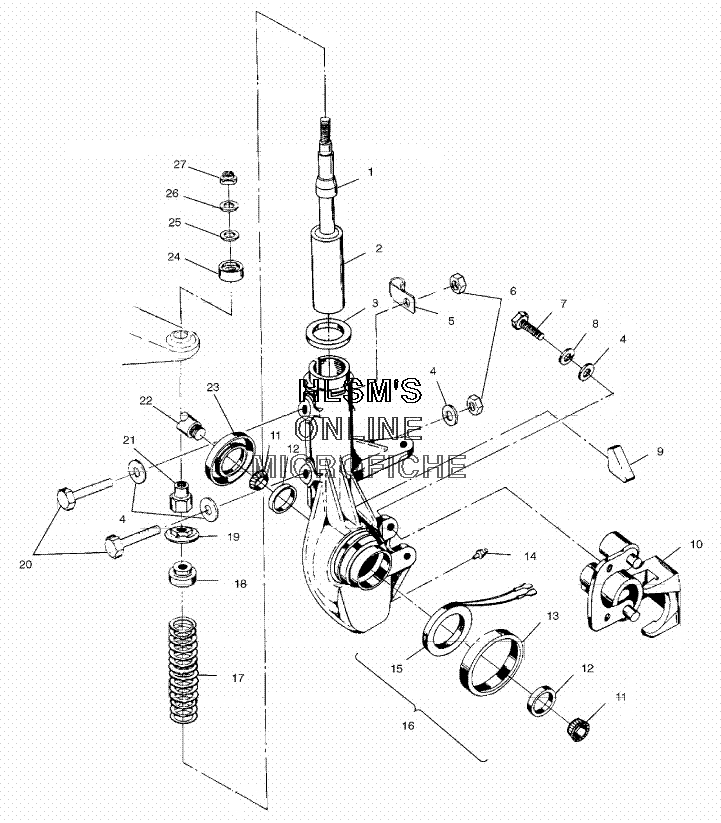

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN 6X6 (A00CL50AA) - 2000 года выпуска
-
№АртикулНазвание
-
15411608 BUMPER, MCU (17.80MM ID)BUMPER, MCU (17.80MM ID)
-
27041761 STRUT, FRONT (18X30MM) (153.8MM ST)STRUT, FRONT (18X30MM) (153.8MM ST)
-
35211115 WASHER, SPRING RETAINERWASHER, SPRING RETAINER
-
47558402 WASHER, STEELWASHER, STEEL
-
57080573 CLAMP, RUBBER-COATEDCLAMP, RUBBER-COATED
-
67542303 NUT, FLEX-LOCNUT, FLEX-LOC
-
77512365 SCREW, CAPSCREW, CAP
-
87552901 LOCK WASHERLOCK WASHER
-
95810439 RETAINER, WIRE STRUT CASTRETAINER, WIRE STRUT CAST
-
113554509 BEARING, TAPERED ROLLERBEARING, TAPERED ROLLER
-
123554507 BEARING, TAPER ROLL CUPBEARING, TAPER ROLL CUP
-
135222193 SLEEVE, STRUT HUB SEALSLEEVE, STRUT HUB SEAL
-
147080306 FITTING, LUBE WITH BALL CHECKFITTING, LUBE WITH BALL CHECK
-
154170010 HUB/COIL KITHUB/COIL KIT
-
162201311 HUBSTRUT, SVC (LEFT/BROWN/WHITE) (42MM) (INCL. 9,12-15,23)HUBSTRUT, SVC (LEFT/BROWN/WHITE) (42MM) (INCL. 9,12-15,23)
-
162201312 HUBSTRUT, SVC (RIGHT/BROWN/WHITE) (42MM) (INCL. 9,12-15,23)HUBSTRUT, SVC (RIGHT/BROWN/WHITE) (42MM) (INCL. 9,12-15,23)
-
177041450-067 SPRING, COIL (STRUT) (BLACK)SPRING, COIL (STRUT) (BLACK)
-
185243364 RETAINER, SPRING STRUTRETAINER, SPRING STRUT
-
195432871 PIVOT, BALL BOTTOMPIVOT, BALL BOTTOM
-
207515339 BOLTBOLT
-
215132062 SPACER, STRUTSPACER, STRUT
-
233610028 SEAL, HUB STRUTSEAL, HUB STRUT
-
245432872 PIVOT, BALL, TOPPIVOT, BALL, TOP
-
255810291 SPACER, RUBBERSPACER, RUBBER
-
267555749 WASHERWASHER
-
277547104 NUTNUT
