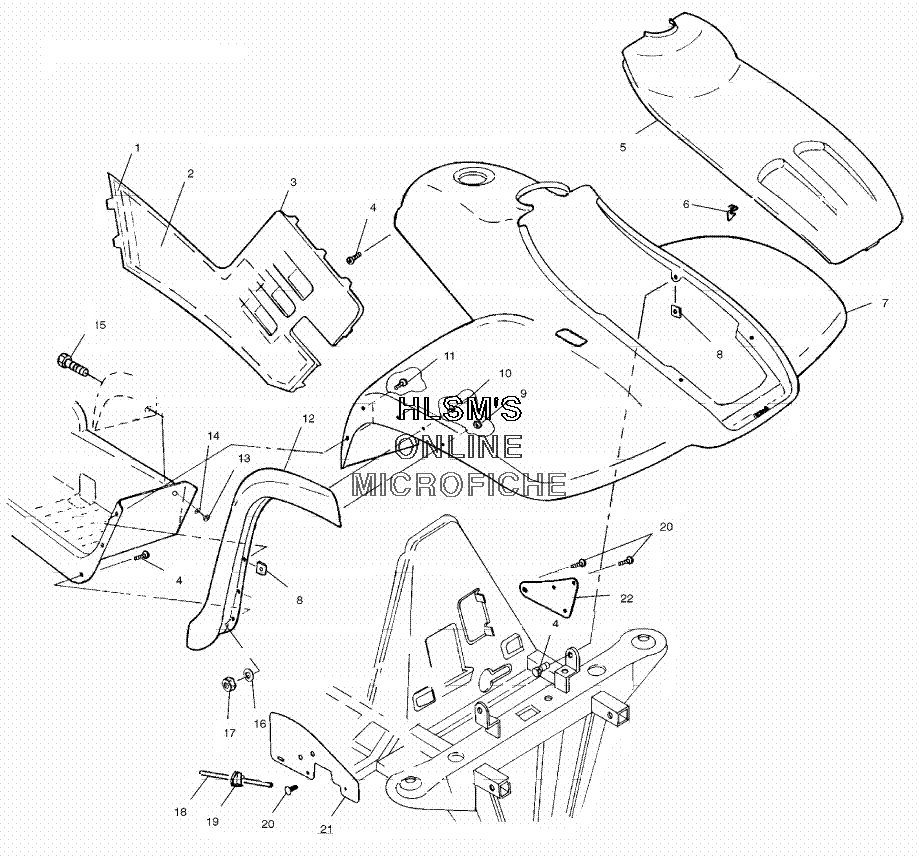

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 6X6 (A00CL50AA) - 2000 года выпуска
-
№АртикулНазвание
-
15811491 FOIL, SIDEPANEL, GEN IV (RIGHT)FOIL, SIDEPANEL, GEN IV (RIGHT)
-
25810996 FOIL, FOAM, SIDEPANELFOIL, FOAM, SIDEPANEL
-
35433263-195 PANEL SIDE, MODIFIED (EB GREEN/LEFT)PANEL SIDE, MODIFIED (EB GREEN/LEFT)
-
32620085-195 PANEL/FOIL ASSY. (EB GREEN/RIGHT)PANEL/FOIL ASSY. (EB GREEN/RIGHT)
-
47512232 BOLTBOLT
-
55432088-195 COVER, FRONT (E.B.GREEN)COVER, FRONT (E.B.GREEN)
-
67670085 CLIP, SPRINGCLIP, SPRING
-
72632146-195 FENDER, FRONT ASSY. (SVC) (E.B.GREEN)FENDER, FRONT ASSY. (SVC) (E.B.GREEN)
-
87670057 NUT, SPEEDNUT, SPEED
-
97670068 NUT, PUSH-ONNUT, PUSH-ON
-
107661645 RIVETRIVET
-
117517312 SCREWSCREW
-
125431798 GUARD, MUD FRONT (LEFT/BLACK)GUARD, MUD FRONT (LEFT/BLACK)
-
125431799 GAURD, MUD FRONT (RIGHT/BLACK)GAURD, MUD FRONT (RIGHT/BLACK)
-
137541925 NUTNUT
-
147555792 WASHERWASHER
-
157512085 SCREWSCREW
-
167555931 WASHERWASHER
-
177542122 NUT, LOCKNUT, LOCK
-
188450073-600 LINE, BREATHER (3/8 ID) (OPT)LINE, BREATHER (3/8 ID) (OPT)
-
197670109 CLIP, ROUTINGCLIP, ROUTING
-
207621509 RIVET, PLASTI LOCRIVET, PLASTI LOC
-
215811917 SHIELD, DEFLECTORSHIELD, DEFLECTOR
-
225243829-067 STRAP, FUEL PUMP MOUNTING (BLACK)STRAP, FUEL PUMP MOUNTING (BLACK)
